Vizio SB36512-F6  Soundbar Review

Reviewed Oct 07, 2019 at 10:22am
Tested using methodology v1.2
Vizio SB36512-F6
7.8
Mixed Usage
7.8
Dialogue/TV Shows
7.8
Music
7.7
Movies
 2

The Vizio SB36512-F6 is a good 5.1.2 soundbar setup. It offers an immersive listening experience thanks to up-firing speakers and Atmos support. Its sound quality is quite good, with a neutral sound profile but with a bit of extra bass. The bar can get loud enough for all types of content, but the height speakers aren’t as loud as the other speakers, meaning it can be hard to hear the height sound effects. On the upside, this soundbar has lots of connectivity options, but the surround speakers need to be wired to the wireless sub.

Our Verdict

7.8
Mixed Usage

Good for mixed usage. The overall performance of the Vizio SB36512-F6 is quite good and will be suitable for all types of content. Its accurate and neutral sound profile will be great for voice-oriented content like TV shows and podcasts, and will also be suitable for most music genres, with a bit of extra bass. For movies, this bar supports Atmos and provides an immersive listening experience thanks to dedicated surround speakers.

Pros
  • Great stereo performance.
  • Decent soundstage.
  • Atmos support.
  • Amazing connectivity options.
Cons
  • No Dialogue Enhancement feature.
  • Surround speakers need to be wired to the wireless sub.
  • Slow, buggy, and laggy app.
7.8
Dialogue/TV Shows

Good for dialog. The Vizio SB36512-F6 has a clear reproduction of voices and a neutral sound profile. It'll be good to listen to the news, podcasts or audiobooks with this setup. Unfortunately, it lacks a dialog enhancement feature that would make voices even clearer, but might not need it due to its great overall performance.

Pros
None
Cons
None
7.8
Music

Good for music. This soundbar system has a great stereo frequency response and is versatile for a wide variety of music. It also has a bit of extra bass, which bass fans will appreciate. It can also get pretty loud and will be suitable for parties or casual listening sessions. You can also listen to your music via your favorite streaming app thanks to the bar’s Bluetooth compatibility.

Pros
None
Cons
None
7.7
Movies

Very good for movies. The Vizio SB36512-F6 has a great stereo frequency response but also supports higher-end audio signals. Thanks to its configuration, this 5.1.2 soundbar setup offers an immersive experience thanks to the dedicated surround speaker and Atmos compatibility.

Pros
None
Cons
None
  • 7.8
    Mixed Usage
  • 7.8
    Dialogue/TV Shows
  • 7.8
    Music
  • 7.7
    Movies
  • Changelog

    1.  Updated Jun 19, 2023: Converted to Test Bench 1.2. Updated the results for audio format support via ARC/eARC, HDMI In, and Optical. Added Video Passthrough to TV results as well.
    2.  Updated Apr 06, 2023: Added cable lengths to In The Box.
    3.  Updated Apr 05, 2023: Converted to Test Bench 1.1. With this update, we've added a Mounting test and added information aboutSubwoofer Output, Spotify Connect, and Microphone Mute.
    4.  Updated Sep 27, 2022: Added market comparison for the Vizio M Series Elevate M512E-K6 to the 'Sound Enhancement Features' box.

    Check Price

    Popular Soundbar Comparisons

    The Vizio SB36512-F6 is a very good soundbar, especially for the price. It has very good performance regardless of what type of content you're listening to and its full setup with a sub and satellites gives you an immersive listening experience. However, the satellites are wired to the sub, which isn't ideal, and the app is one of the most difficult to navigate seamlessly and without bugs. See our recommendations for the best soundbars, the best small soundbars, and the best soundbars for music.

    Vizio M Series M51a-H6

    The Vizio M Series M51a-H6 is a better soundbar than the Vizio SB36512-F6. The M Series has a more neutral sound profile out of the box and can get louder. It has a better surround performance and more sound enhancement features and supports DTS:X. However, the SB36512-F6 is Wi-Fi compatible and has Chromecast built-in.

    Sonos Arc

    The Vizio SB36512-F6 is a somewhat better soundbar for mixed usage than the standalone Sonos Arc. The Vizio offers more wireless playback options and reproduces a more extended low-bass. It has EQ presets, a Full HDMI In port, a dedicated subwoofer, and satellites. The Sonos is better built and offers a better soundstage performance. It also has built-in voice assistant support, a room correction feature, and a dialogue enhancement mode. You can also upgrade it to the Sonos Arc with Sub + One SL Speakers for better performance.

    Vizio V Series V51-H6

    The Vizio SB36512-F6 is a better overall soundbar than the Vizio V Series V51-H6. The SB36512-F6 supports Atmos content and has a better surround performance. Also, it has more connectivity options, including a Full HDMI In port that allows for 4k passthrough, and Wi-Fi and Chromecast compatibility. That being said, the V Series has a dialogue enhancement feature, which the SB36512-F6 lacks.

    Vizio M Series Elevate M512E-K6

    The Vizio SB36512-F6 and the Vizio M Series Elevate M512E-K6 are both 5.1.2 Dolby Atmos soundbars, and they each have different strengths. The Elevate is a 2022 bar with a unique design, as its sides rotate upwards when you watch Atmos content, providing a more immersive sound. It has more sound enhancement features, and it's better built. The SB36512-F6 is still a versatile alternative, with more wireless playback options. Since it's older, you may be able to find it at a better price, meaning it may be a better value for some users.

    Show more

    Test Results

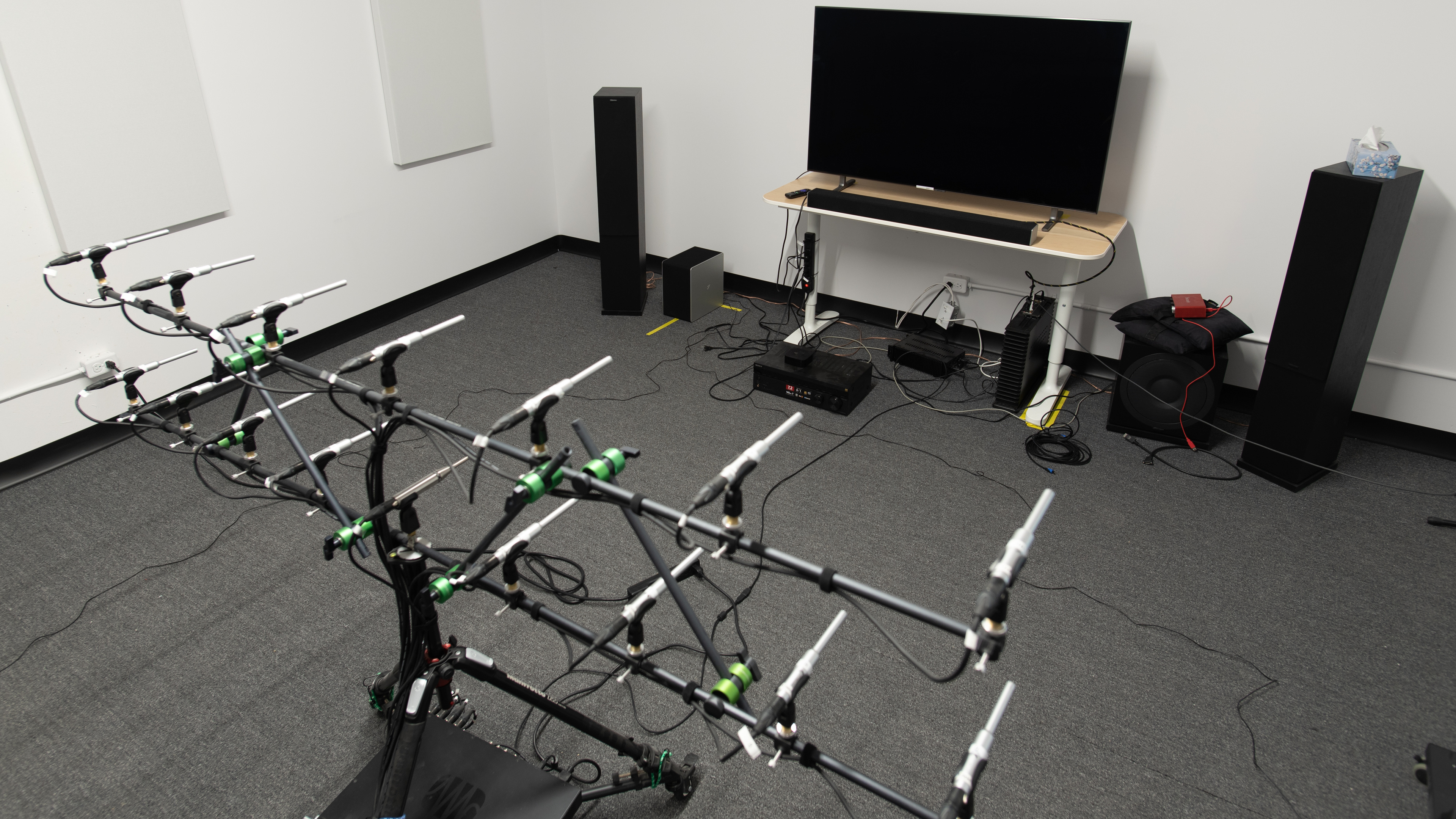

    perceptual testing image
    Sort:
    RATINGS
    Category:
    All
    Design
    Style - Bar

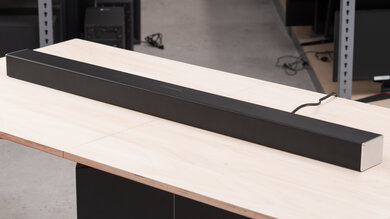

    The bar of this setup is covered by fabric at the front and the top, which unfortunately can easily get dirty or damaged. The back and the underside are made of plastic and the two sides are covered by silver-colored plastic with the Vizio logo in the center.

    Style - Subwoofer
    Sub Wireless
    Yes
    Enclosure
    Ported

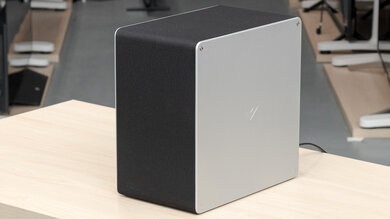

    The sub has a very similar style to the bar. It also has its front and top faces covered by fabric. The port is found on the back and is made of plastic. The two sides have large silver-colored plates with the Vizio logo in the center.

    Style - Satellites
    Satellite Wireless
    Partial, wired to wireless sub

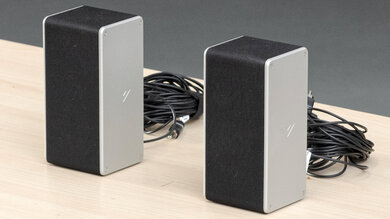

    The satellites follow the same style. Fabric at the front and top, plastic at the back, and two silver-colored plates at the sides with the Vizio logo. If you want an Atmos soundbar but don't have space for satellites, check out the Polk Audio Signa S4.

    Dimensions - Bar
    Width36.0" (91.5 cm)
    Height2.6" (6.6 cm)
    Depth3.4" (8.7 cm)

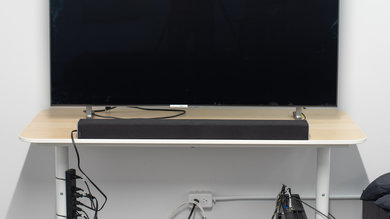

    The bar isn't too wide, but might not fit between the legs of a 55" TV, depending on its stand. It's also not too tall, so it's unlikely that it'll block the bottom part of your screen unless your TV sits flush on the table, like the Sony A9F.

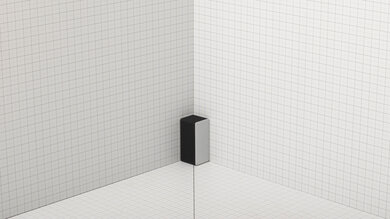

    Dimensions - Subwoofer
    Width7.0" (17.9 cm)
    Height11.5" (29.2 cm)
    Depth11.4" (29.0 cm)

    The subwoofer is about the size of an average desktop PC and won't take up too much space. Unlike the Vizio SB36312-G6's subwoofer, this subwoofer can only be placed in an upright position.

    Dimensions - Satellites
    Width2.6" (6.6 cm)
    Height5.7" (14.5 cm)
    Depth2.9" (7.3 cm)

    The satellites aren't too big. Unfortunately, they don’t pair wirelessly and have to connect to the sub by a cable to get their signal. This places some limitations as to where you can place the sub, as the satellites are surround speakers and have to be placed on the side, slightly behind your couch for an optimal sound experience.

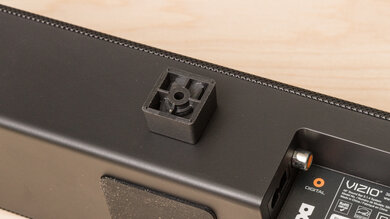

    Mounting
    Mountable Bar
    Yes
    Bar Brackets Included
    Yes

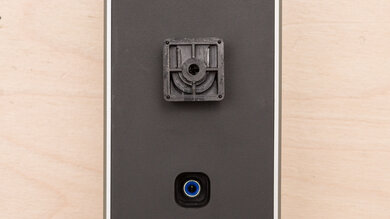

    Mountable Satellites
    Yes
    Satellite Brackets Included
    Yes
    7.0
    Build Quality

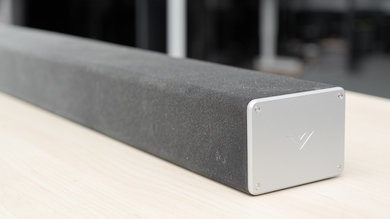

    The Vizio SB36512-F6 has decent build quality. All components of the setup have a very similar style, with a fabric covering the top and front faces and two silver-colored plates on the sides. Unfortunately, the fabric can easily collect dust and get ripped. The back and the sides are made of good quality plastic but don't feel premium. If you're looking for a better built 5.1.2 setup, check out the LG SN9YG.

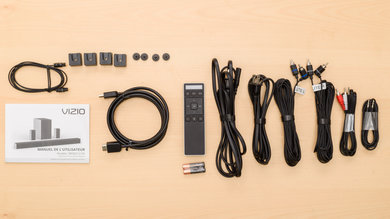

    In The Box

    • Manual
    • HDMI Cable (6.2 ft / 1.9m)
    • Remote & Batteries
    • Power Cables (x2) (8.4 ft / 2.5m)
    • Satellite Speaker Audio Cables (x2) (26 ft / 8m)
    • Stereo RCA to 3.5mm Audio Cable (4.9 ft / 1.5m)
    • 3.5mm to 3.5mm Audio Cable (4.9 ft / 1.5m)
    • Digital Optical Cable (4.9 ft / 1.5m)
    • Wall-mounting brackets
    • Wall-mounting screws

    Sound
    8.1

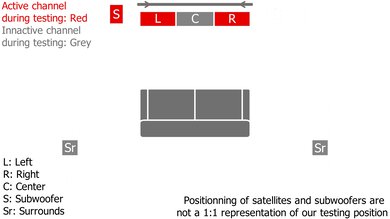

    Stereo Frequency Response
    See details on graph tool
    See details on graph tool
    Tested Preset
    Direct
    Slope
    -0.49
    Std. Err.
    2.74 dB
    Channels
    5.1.2
    Low-Frequency Extension
    33.6 Hz
    High-Frequency Extension
    19.9 kHz

    The stereo frequency response of the Vizio SB36512-F6 is great. The low-frequency extension is quite low, which is good. This system will be able to reproduce the deep rumble, thump, and punch of bass. However, there was audible sub-bass port noise in our testing. The rest of the response is quite accurate and flat, resulting in a neutral sound profile with a bit of extra bass.

    8.2
    Stereo Frequency Response With Preliminary Calibration
    See details on graph tool
    Suggested Preset
    Direct
    Suggested Bass Setting
    -4
    Suggested Treble Setting
    2
    Slope
    0.13
    Std. Err.
    2.43 dB
    Low-Frequency Extension
    34.1 Hz
    High-Frequency Extension
    19.6 kHz
    7.0
    Stereo Soundstage
    See details on graph tool
    Crosstalk Error
    2.21 dB

    When listening to the Vizio SB36512-F6, the soundstage is decent. It seems the sound comes from the edges of the bar, just about the same width as the Samsung HW-Q60R. The bar doesn’t do any tricks to widen the soundstage even further and sounds quite focused, which is good. Objects in the soundstage come from an accurate pinpoint location rather than a general area.

    8.4
    Stereo Dynamics
    See details on graph tool
    SPL @ Max Volume
    94.4 dB SPL
    DRC @ Max Volume
    0.72 dB

    The Vizio SB36512-F6 can get pretty loud and will be suited for large rooms and crowded environments. There's no audible dynamic range compression in our testing, but we did notice some with real-life content.

    7.4
    Stereo Total Harmonic Distortion
    See details on graph tool
    Weighted THD @ 80dB
    0.49
    Weighted THD @ Max Volume
    2.51

    The THD performance of the Vizio soundbar is good. At a normal listening volume, the amount of THD is within very good limits and the bar will reproduce pure and clean sound. However, when pushing the bar at its maximum volume, there's a noticeable jump in THD, especially in the bass range.

    8.5

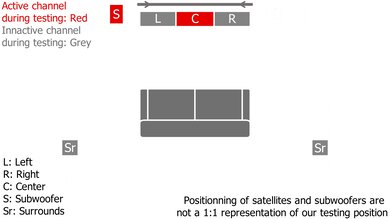

    Center
    See details on graph tool
    Localization
    Discrete
    Slope
    -0.12
    Std. Err.
    2.33 dB
    SPL @ Max Volume
    90.9 dB SPL
    Weighted THD @ 80dB
    0.41
    Weighted THD @ Max Volume
    1.75

    This Vizio is a 5.1.2 system setup that has excellent performance in the center channel. Due to its configuration, the Vizio SB36512-F6 has a dedicated center speaker, which results in a clearer and more accurate audio reproduction of the dialog in movies. The frequency response is great across the whole range and you’ll be able to get a decent loudness level.

    6.8

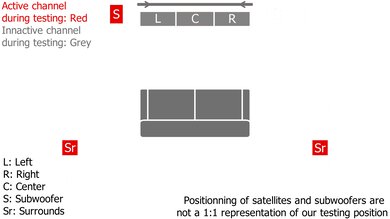

    Surround 5.1
    See details on graph tool
    Localization
    Discrete
    Slope
    -1.91
    Std. Err.
    5.46 dB
    SPL @ Max Volume
    90.2 dB SPL
    Weighted THD @ 80dB
    0.47
    Weighted THD @ Max Volume
    2.26
    7.1 Rears
    No

    The Vizio SB36512-F6 has dedicated side surround speakers, but has fairly mediocre performance. The sound profile is very bass-heavy and dark. On the upside, thanks to their localization, surround objects seem to be coming around you rather than in front, like a typical stereo system, which is good. For an even more immersive experience, check out the Vizio SB46514-F6 or the Nakamichi Shockwafe Ultra 9.2Ch with its four dedicated surround sound satellite speakers.

    6.0

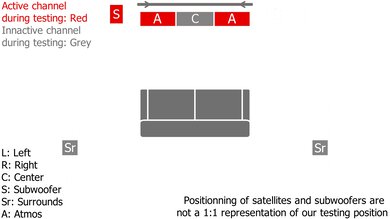

    Height (Atmos)
    See details on graph tool
    Localization
    Phantom (Up Firing, Bar)
    Slope
    0.01
    Std. Err.
    4.64 dB
    SPL @ Max Volume
    90.2 dB SPL
    Weighted THD @ 80dB
    1.91
    Weighted THD @ Max Volume
    1.02

    The Atmos performance of this Vizio soundbar is decent. The bar has two up-firing speakers that ricochet the sounds off the ceiling, which creates the illusion of height. However, the localization of objects is diffused. It doesn't sound as real as a discrete localization provided by down-firing speakers. The Atmos sound is also much quieter than the other sounds coming from the other speakers, so it might be a bit hard to hear the height sound effects. On the upside, there's a height level adjustment setting inside the app, so you might need to set it to your preference. It also does better than similar 5.1.2 setups like the onn. 42" 5.1. 2. Dolby Atmos Soundbar.

    5.9
    Sound Enhancement Features
    Room Correction
    No
    Dialogue Enhancement
    No
    Auto-Volume/Night Mode
    Yes
    Subwoofer Level Adjustment
    Yes
    Bass Adjustment
    Yes
    Treble Adjustment
    Yes
    EQ
    Presets
    Surround Level Adjustment
    Yes
    Rear Level Adjustment
    No
    Height Level Adjustment
    Yes
    Virtual Surround
    Yes

    The Vizio SB36512-F6 has limited sound enhancement tools, even compared to other bars in its price range. It doesn’t have a room correction feature, meaning it sounds a bit different depending on your room's unique acoustics. You can make up for this a bit thanks to its bass and treble adjustments, though it lacks a full graphic EQ to customize its sound across the range. Compared to Vizio's newer models, such as the Vizio M Series Elevate M512E-K6, there's no dialogue enhancement feature either, which is disappointing if you watch a lot of television shows and other vocal-centric content.

    Connectivity

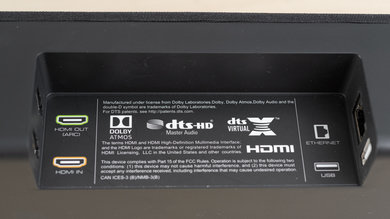

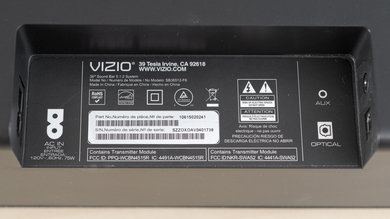

    Inputs/Outputs - Bar
    Optical Audio In
    1
    HDMI Out
    ARC
    HDMI 2.1 Class Bandwidth
    No
    Full HDMI In
    1
    Analog Audio In 3.5mm (Aux)
    1
    RCA In
    No
    USB for Files
    1
    Ethernet
    1
    Subwoofer Output
    No

    The Vizio SB36512-F6 is very versatile, as it has a pretty complete set of physical inputs. You should be able to connect any device using one of the available inputs. Unlike the JBL Bar 5.1 Surround, this bar even has an AUX port so that you can play audio from some older devices.

    8.3
    Audio Format Support: ARC/eARC
    Dolby Atmos
    Supported
    Dolby Digital
    Supported
    Dolby Digital Plus
    Supported
    Dolby TrueHD
    Not Supported
    DTS
    Supported
    DTS:X
    Not Supported
    DTS-HD MA
    Not Supported
    PCM Channels
    2.0

    The Vizio SB36512-F6 has great sound format support over ARC. It supports the common Dolby Digital and DTS surround sound formats found on streaming platforms and Blu-ray discs. It also offers a more immersive sound experience thanks to the support of Dolby Atmos, an object-based surround sound format. Unfortunately, there's no support for uncompressed sound formats like 5.1 PCM, over this port. Also, unlike the Vizio M Series M51a-H6, it doesn't support DTS:X content.

    9.7
    Audio Format Support: HDMI In
    Dolby Atmos
    Supported
    Dolby Digital
    Supported
    Dolby Digital Plus
    Supported
    Dolby TrueHD
    Supported
    DTS
    Supported
    DTS:X
    Not Supported
    DTS-HD MA
    Supported
    PCM Channels
    Up To 5.1

    Excellent sound format support through the Full HDMI In. You'll be able to playback the most advanced sound formats. You can playback surround sound and object-based formats like Dolby Atmos, or even lossless formats like PCM 5.1. These sound formats are common in Blu-rays and streaming platforms like Netflix.

    10
    Audio Format Support: Optical
    Dolby Digital
    Supported
    DTS
    Supported
    PCM Channels
    2.0

    The Optical Audio has excellent support for surround sound. Dolby Digital and DTS formats are usually found on streaming platforms like Netflix or Blu-ray discs. DTS is usually found as the fallback of the DTS-HD MA which is common on most recent Blu-rays.

    7.4
    Latency
    ARC
    56 ms
    Optical
    53 ms
    Full HDMI In
    -85 ms

    Update 03/23/2021: There was a mistake in our methodology where we measured the latency using every second frame (eg. 120fps). We now re-evaluated the footage using every frame at 240fps for more accurate results.

    7.8
    Video Passthrough To TV
    1080p Max Refresh Rate
    120Hz
    1080p @ 4:4:4 Max Refresh Rate
    120Hz
    4k Max Refresh Rate
    60Hz
    4k @ 120Hz @ 10-Bit
    Not Supported
    4k @ 4:4:4 Max Refresh Rate
    60Hz
    8k Max Refresh Rate
    30Hz
    HDR10 Passthrough
    Yes
    HDR10+ Passthrough
    No
    Dolby Vision Passthrough
    No
    HDMI Forum VRR Passthrough
    Yes
    FreeSync Passthrough
    No
    G-SYNC Passthrough
    No
    ALLM Passthrough
    Yes

    The Vizio SB36512-F6 can passthrough the highest bandwidth signals. This means that when connected between your PC and the TV, text will look clear on your TV.

    9.0
    Wireless Playback
    Bluetooth
    Yes
    Wi-Fi Playback
    Yes
    Chromecast built-in
    Yes
    Apple AirPlay
    No
    Spotify Connect
    No

    Update 10/16/2019: A user pointed out that this bar does support Wi-Fi and Chromecast built-in. The review and text have been updated.

    The wireless playback on this bar is excellent. You can enjoy your music by connecting a phone or a tablet wirelessly using Bluetooth, use Wi-Fi and cast content using the Chromecast built-in.

    Additional Features
    Interface
    Display
    No

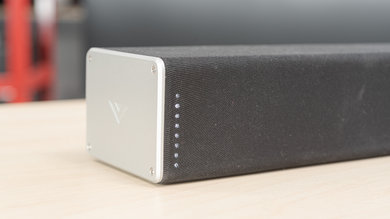

    The interface consists of a set of lights in the front face that flash according to your settings. Unfortunately, they aren't easy to tell apart and you'll have a hard time distinguishing which one is which.

    Bar Controls

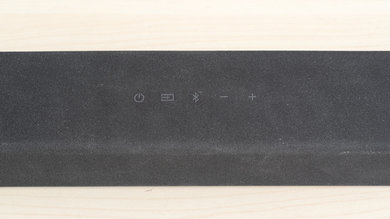

    The Vizio SB36512-F6 has a set of physical buttons on the top face under the fabric. They serve basic functions like power on/off, input selection, volume control, and Bluetooth pairing.

    Remote

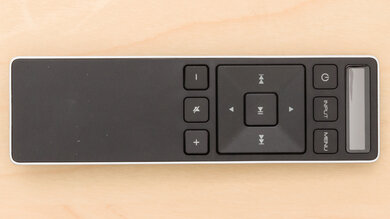

    The remote is fairly simple and allows you to control playback and basic functions of the bar. It has a small screen on the top which is informing you of the inputs, etc. Unfortunately, it's very hard to read due to the lack of any backlight, which is either non-existent or did not work in our case. The Vizio SmartCast app also lets you control the bar from your smartphone.

    Voice Assistants Support
    Amazon Alexa
    No
    Google Assistant
    No
    Apple Siri
    No
    Microphone Mute
    No
