ASUS ROG Swift OLED PG32UCDM vs ASUS ROG Swift OLED PG32UCDP
Side-by-Side Comparison
Products
ASUS ROG Swift OLED PG32UCDM
ASUS ROG Swift OLED PG32UCDP
Tested using Methodology v2.0.1
Updated Apr 07, 2025 01:10 PM
SEE PRICE
Amazon.comTested using Methodology v2.0.1
Updated Mar 18, 2025 03:49 PM
SEE PRICE
Amazon.com
Max Refresh Rate240 Hz
Size32"
Pixel TypeQD-OLED
Native Resolution3840 x 2160
Max Refresh Rate480 Hz
Size32"
Pixel TypeOLED
Native Resolution3840 x 2160
Variants
- ROG Swift OLED PG32UCDM (32")
- ROG Swift OLED PG32UCDP (32")
Our Verdict
ASUS ROG Swift OLED PG32UCDM
ASUS ROG Swift OLED PG32UCDP
The ASUS ROG Swift OLED PG32UCDM and the ASUS ROG Swift OLED PG32UCDP are 32-inch 4k OLED monitors. The PG32UCDP is a better choice if you want the most responsive feel, as it has a 1080p @ 480Hz mode that the PG32UCDM lacks. It also works better in a room with a fair amount of ambient light, as deep blacks won't appear slightly purple, as would on the PG32UCDM. Finally, the PG32UCDP has better text clarity, so it's a better option if you plan to use it for productivity work. However, if vivid colors are important to you then the PG32UCDM is the better choice, as it has more vivid colors in HDR.
Check Price
32"
ROG Swift OLED PG32UCDM
SEE PRICE
Amazon.com32"
ROG Swift OLED PG32UCDP
SEE PRICE
Amazon.com32"
ROG Swift OLED PG32UCDM
SEE PRICE
B&H32"
ROG Swift OLED PG32UCDP
SEE PRICE
B&H32"
ROG Swift OLED PG32UCDM
SEE PRICE
BestBuy.com32"
ROG Swift OLED PG32UCDP
SEE PRICE
BestBuy.com32"
ROG Swift OLED PG32UCDM
SEE PRICE
Walmart.com32"
ROG Swift OLED PG32UCDP
SEE PRICE
Walmart.comMain Differences forPC Gaming
PC Gaming
Threshold
PC Gaming
9.1
9.2
Refresh Rate
8.0
8.8
Full Comparison
Design
Style

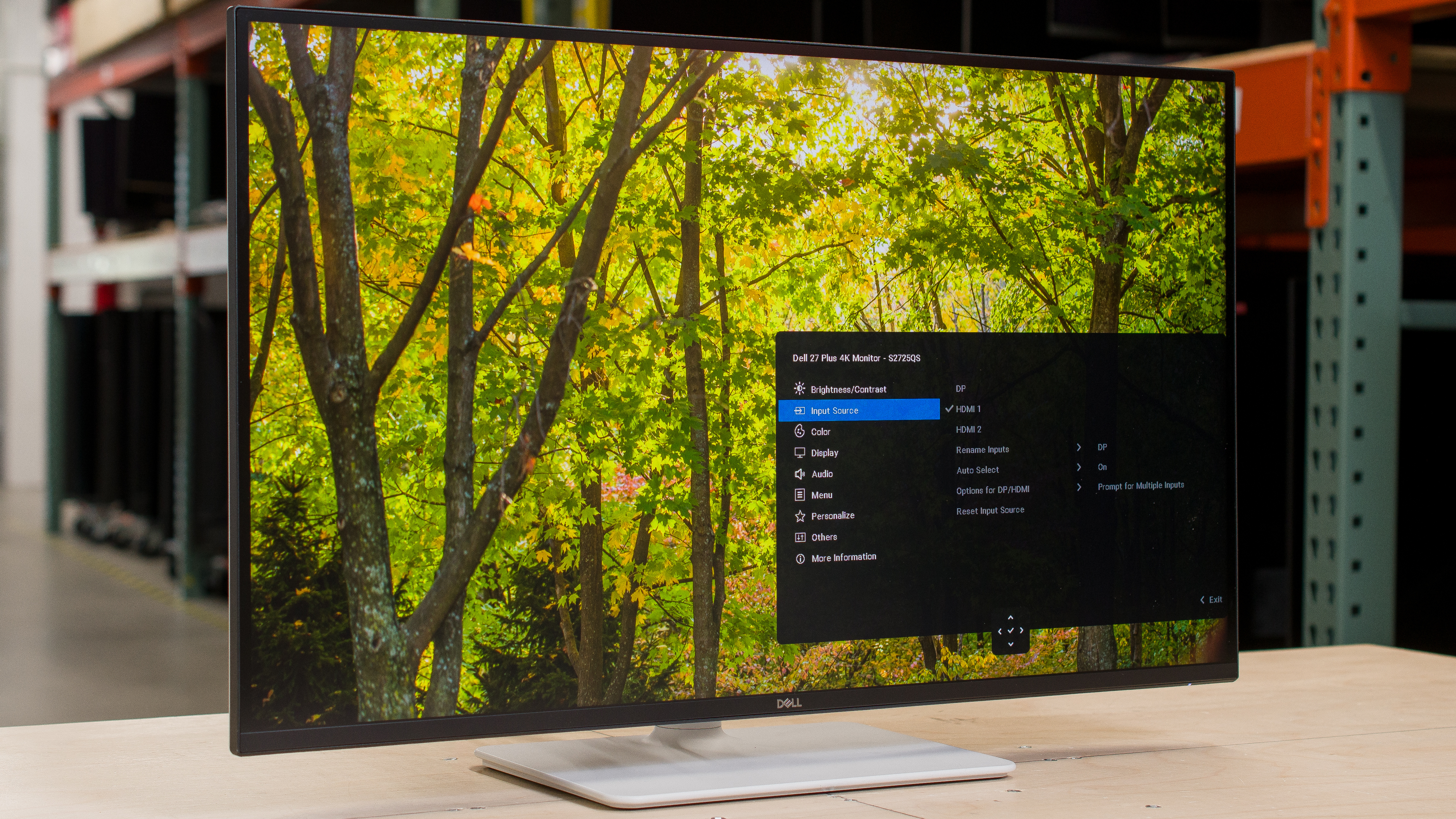

Design Picture
Curved
No
No
Curve Radius
Not Curved
Not Curved
Accelerated Longevity Test
Uniformity Pictures
Longevity Graph
Build Quality
9.0
9.0

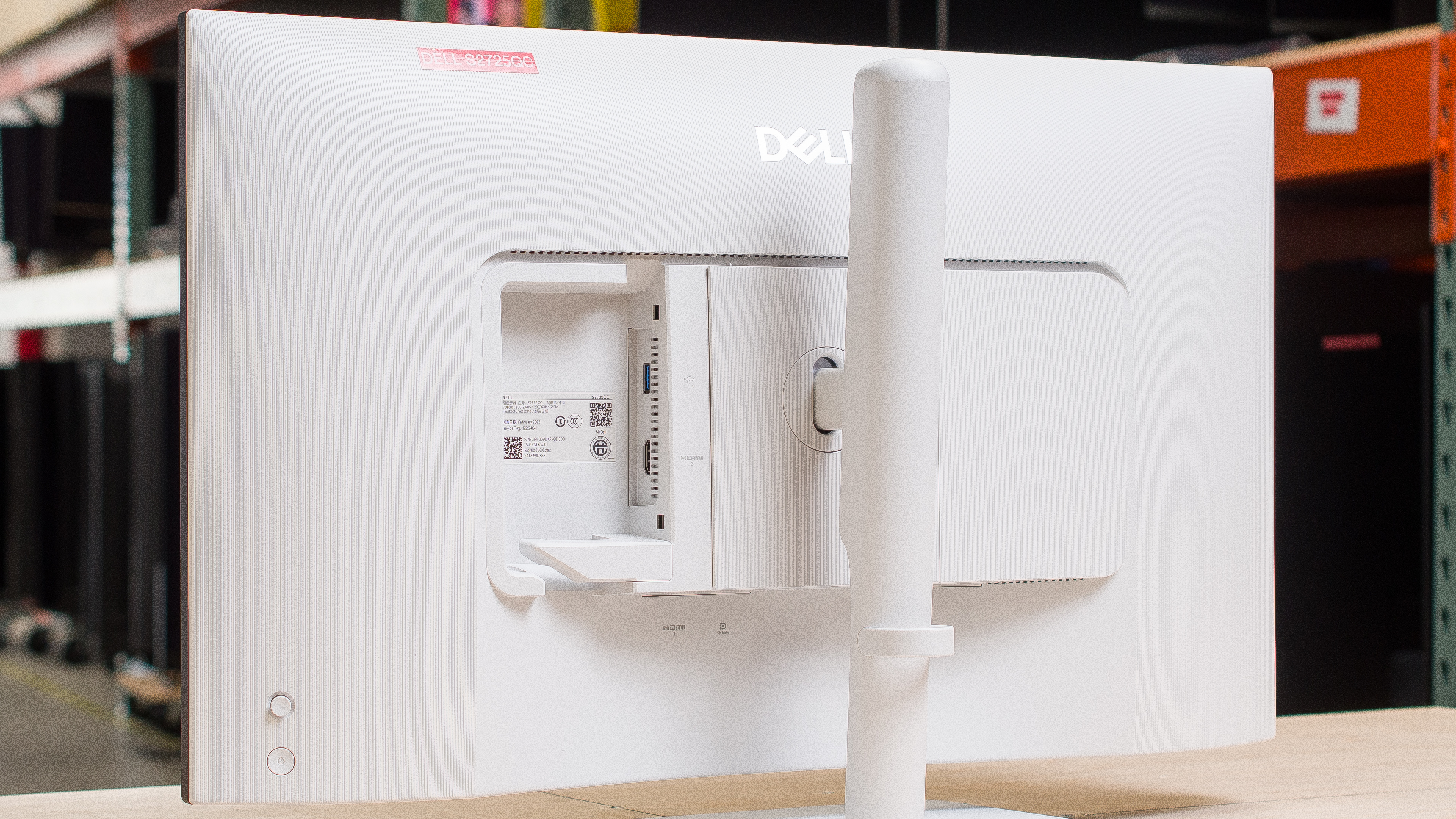

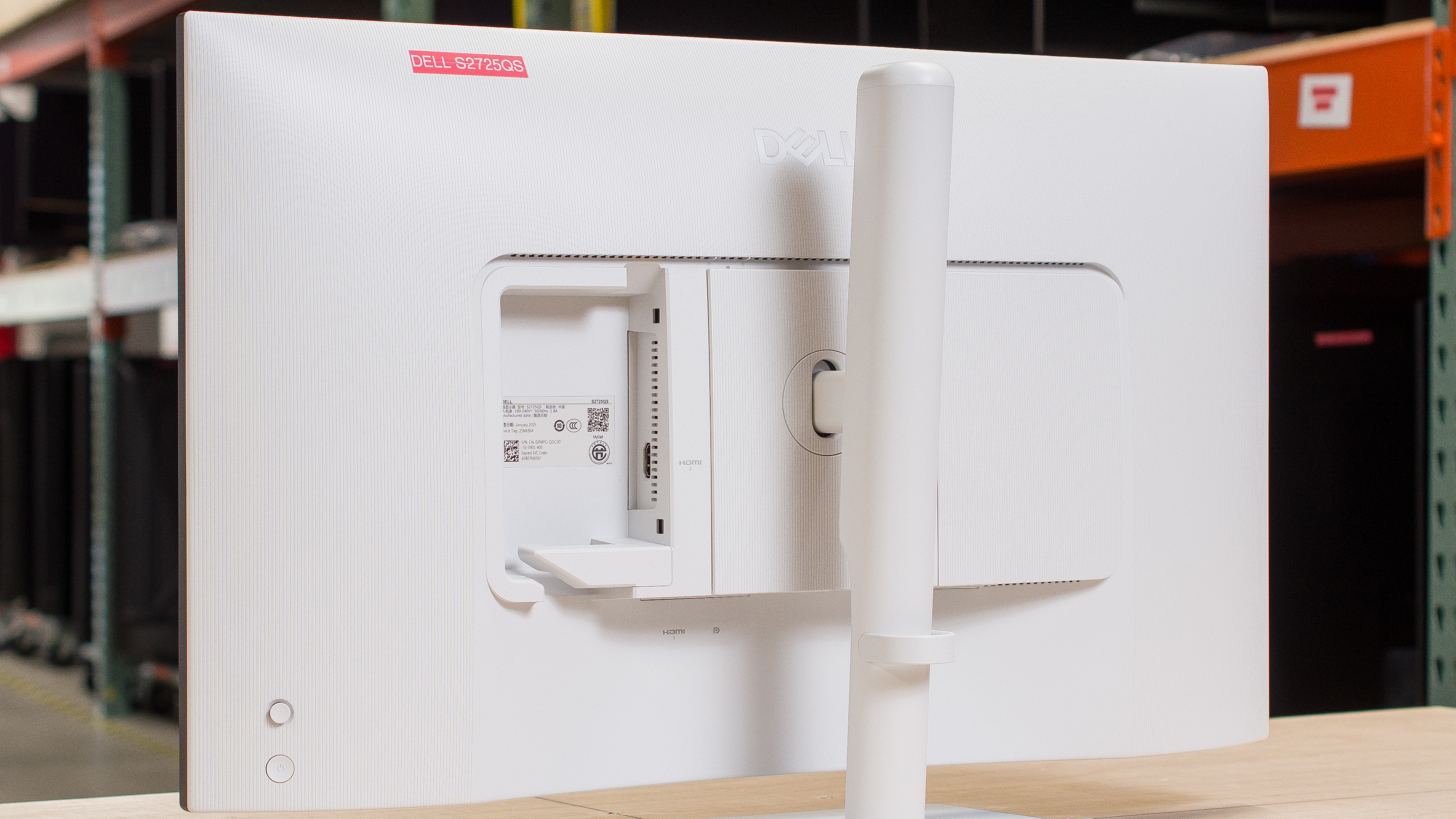

Build Quality Picture
Ergonomics
6.0
6.0

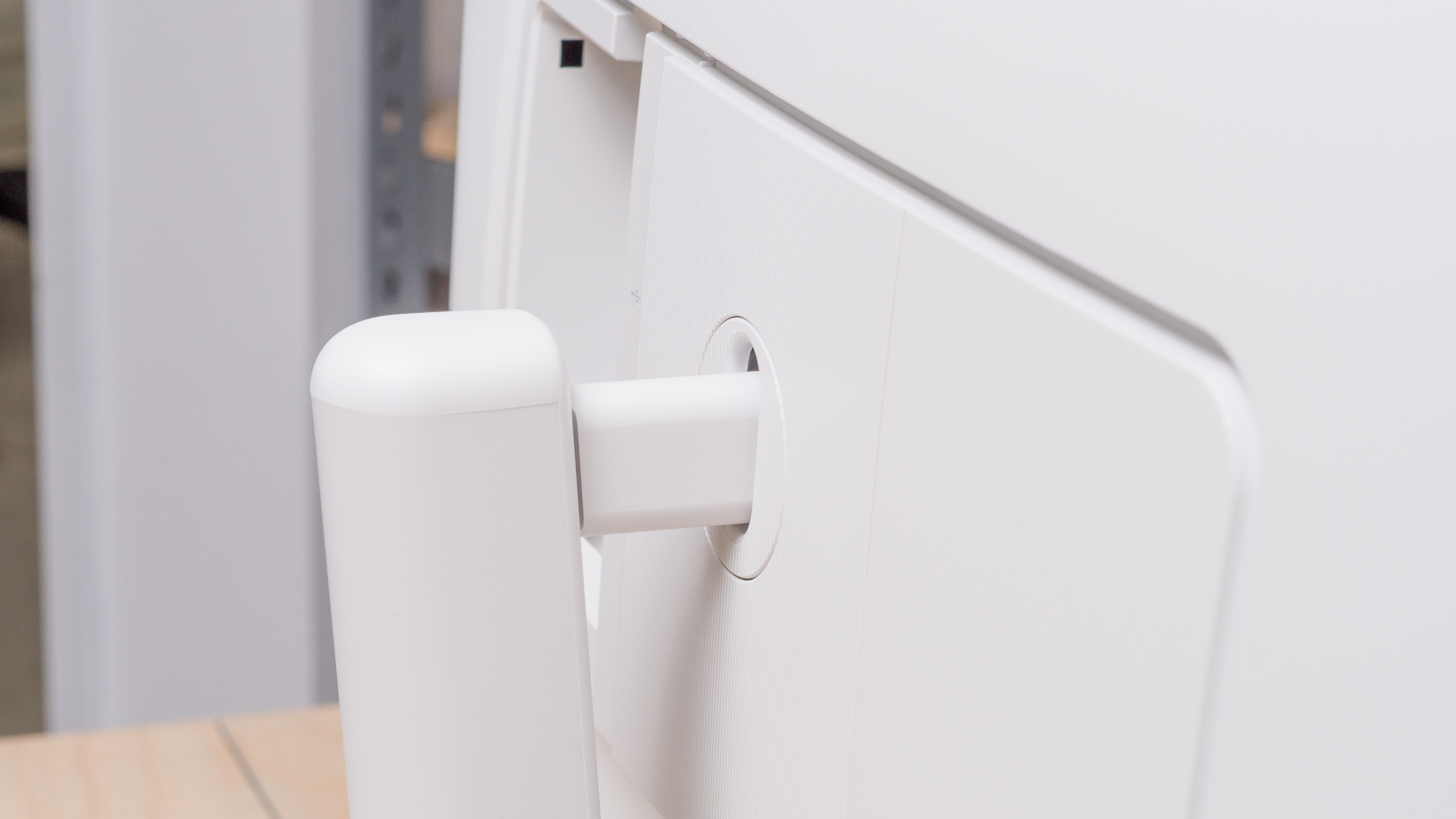

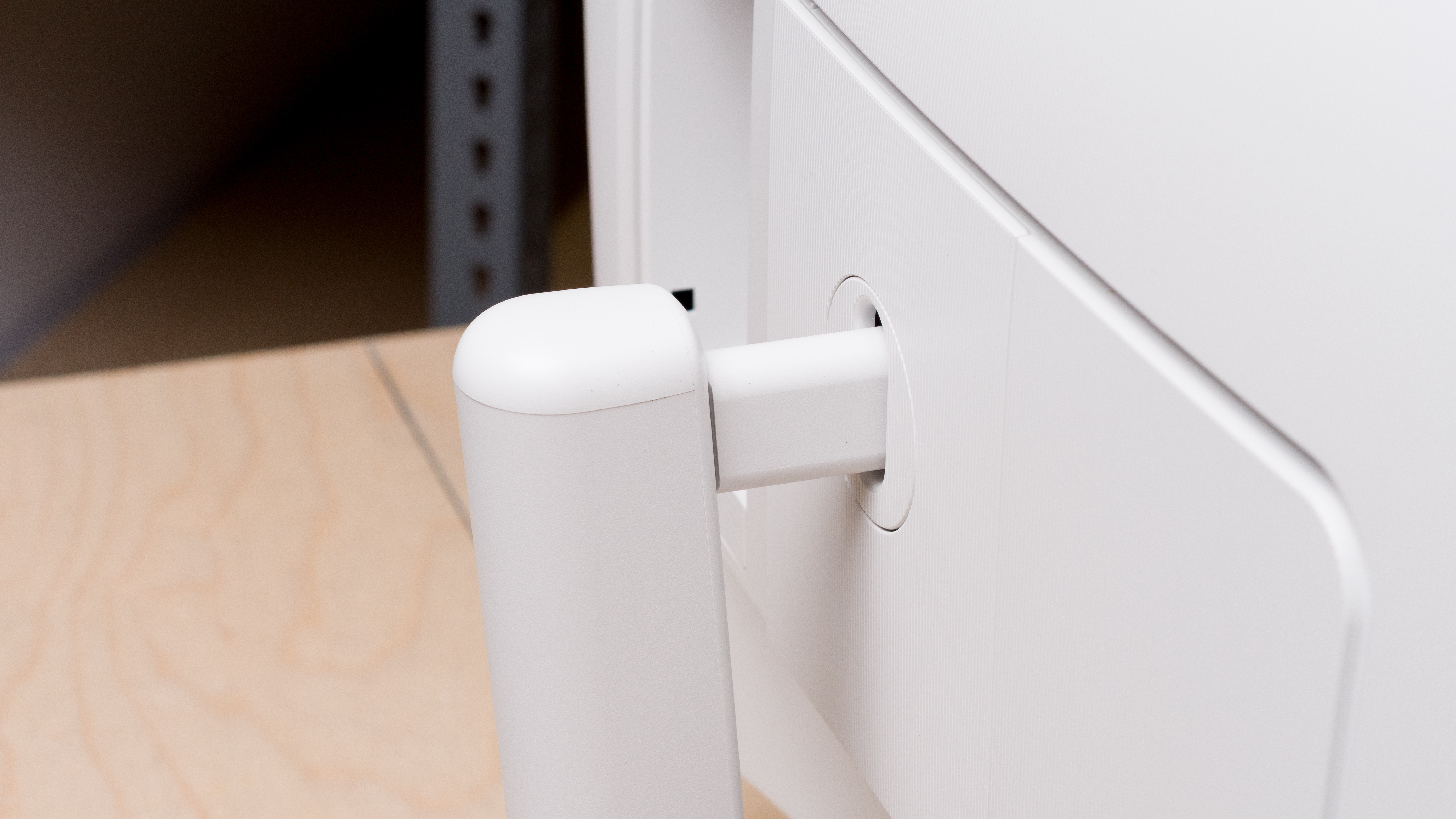

Ergonomics Picture

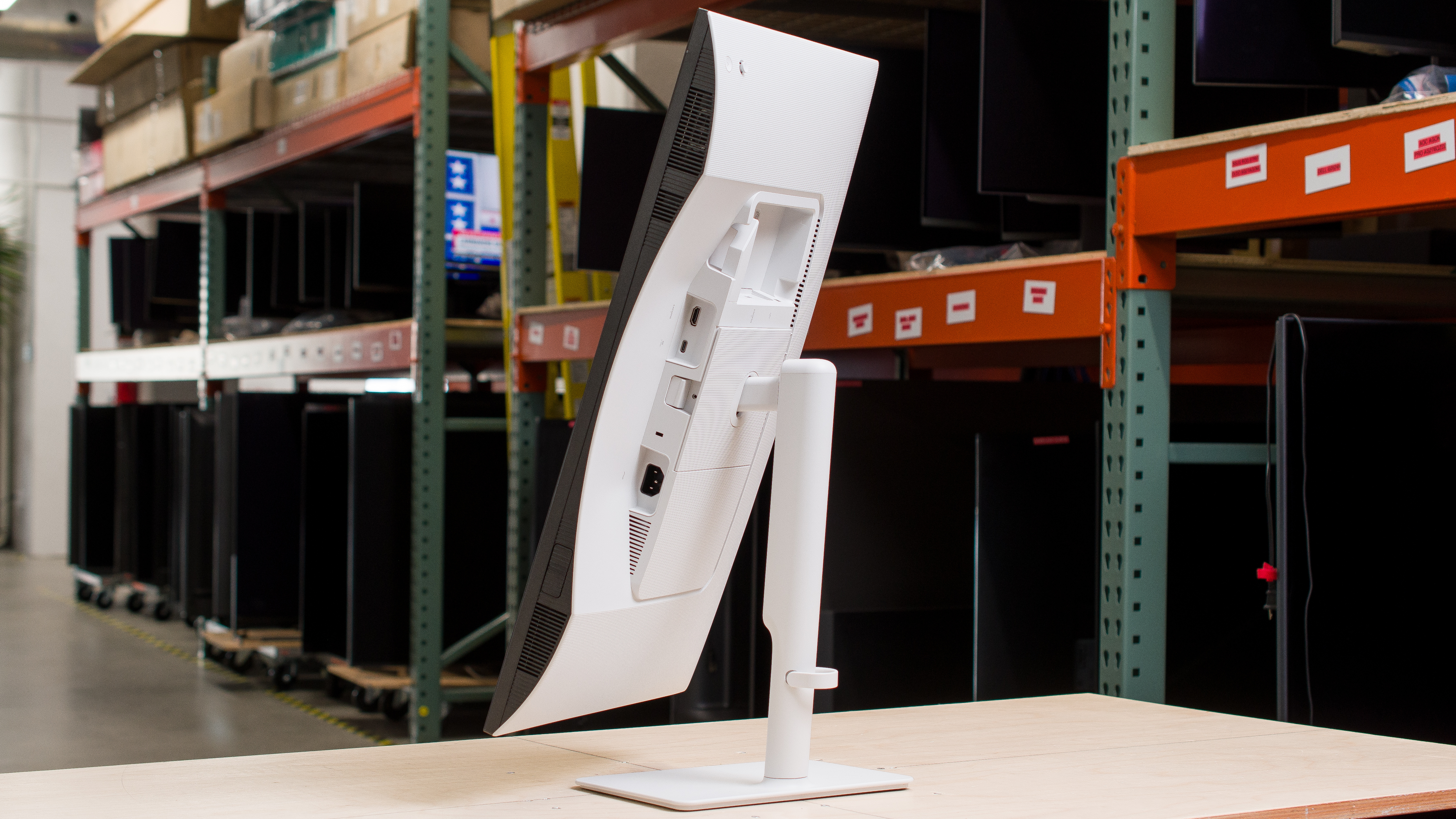

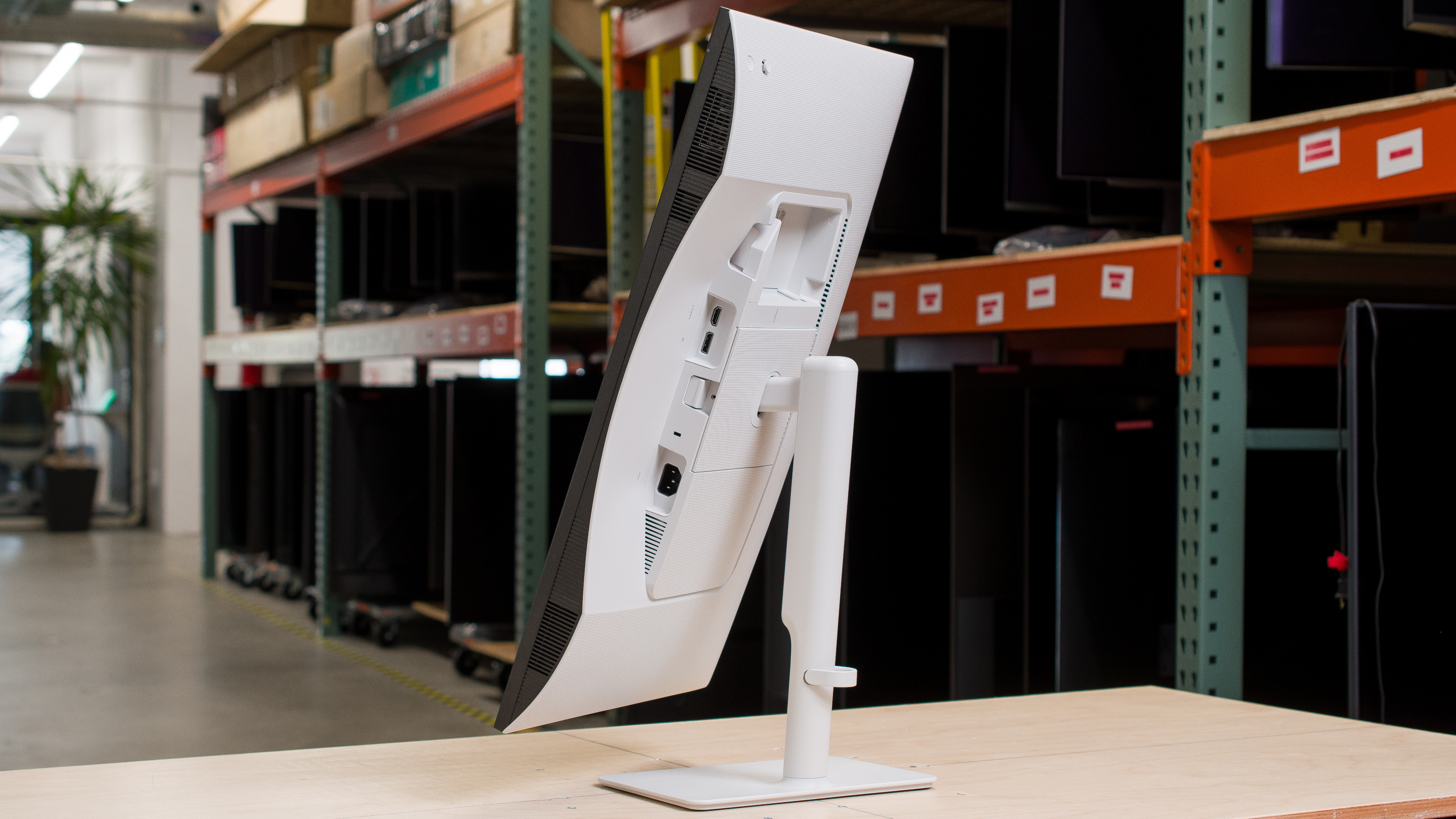

Back Picture
Height Adjustment
3.1" (8.0 cm)
3.1" (8.0 cm)
Min Height To Top Of Panel
19.2" (48.7 cm)
19.3" (48.9 cm)
Tilt Range
-15° to 5°
-15° to 5°
Rotate Portrait/Landscape
No
No
Swivel Range
-15° to 15°
-15° to 15°
Wall Mount
VESA 100x100
VESA 100x100
Stand

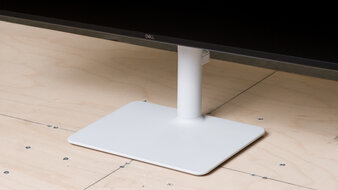

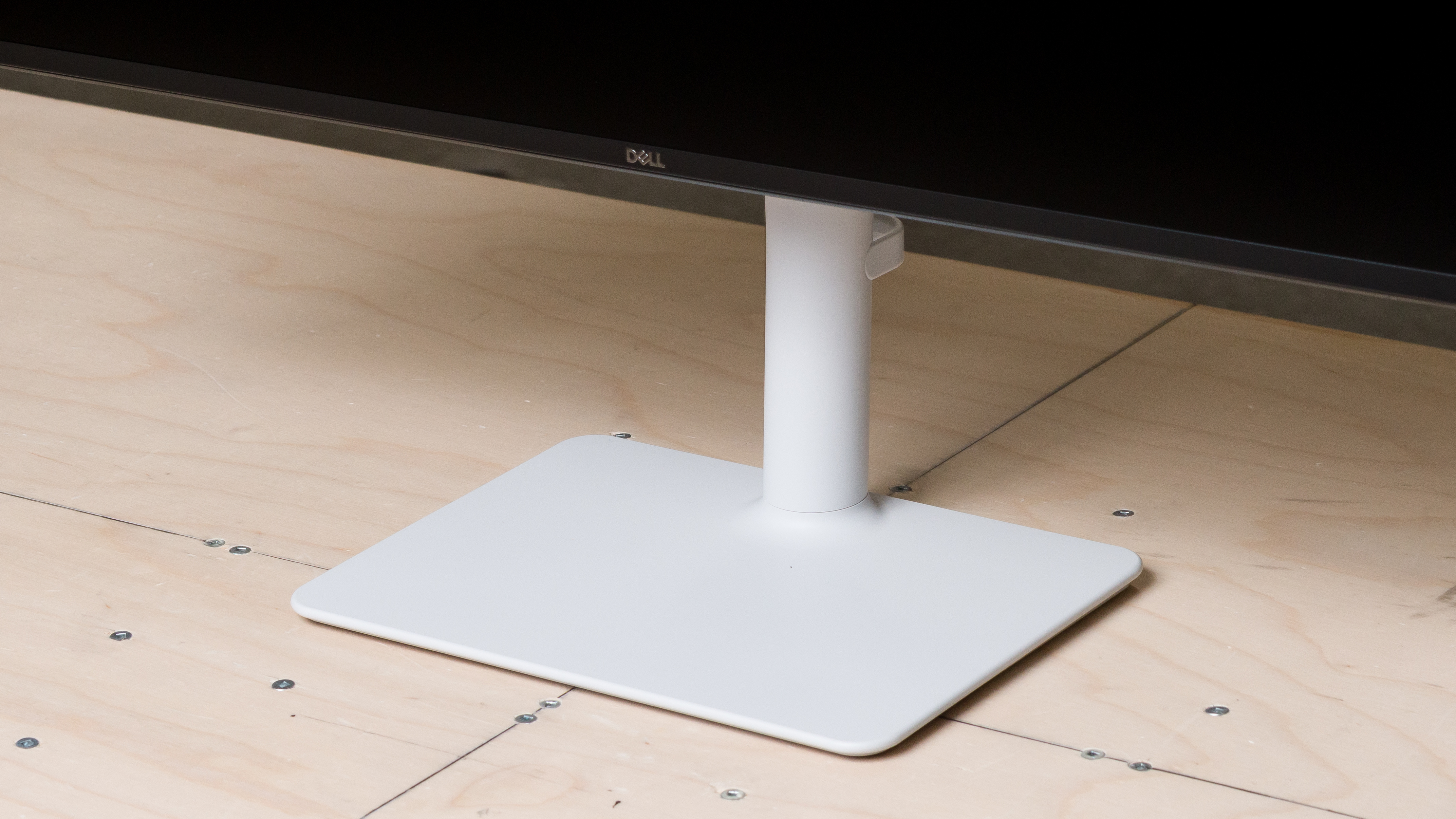

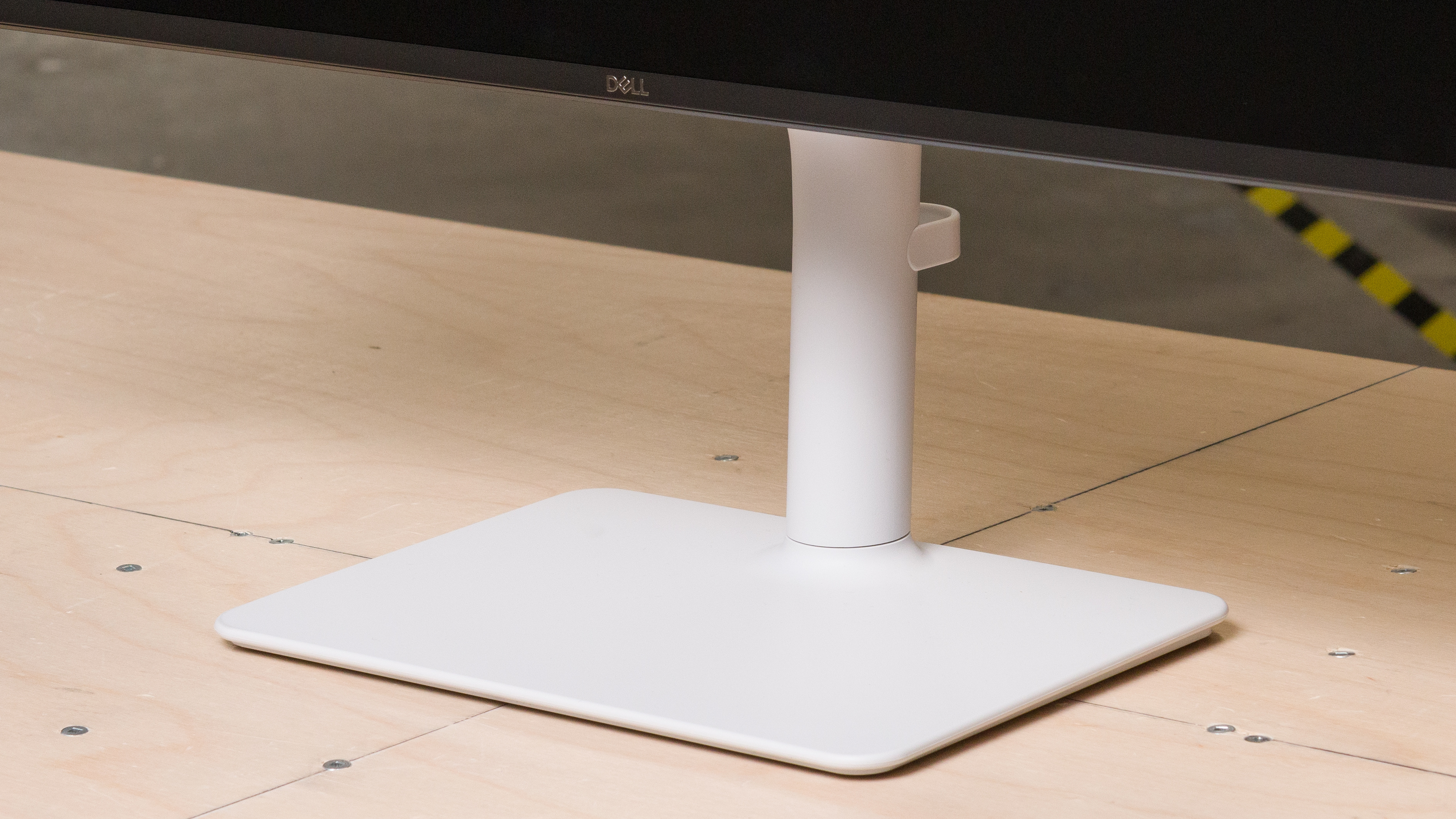

Stand Picture

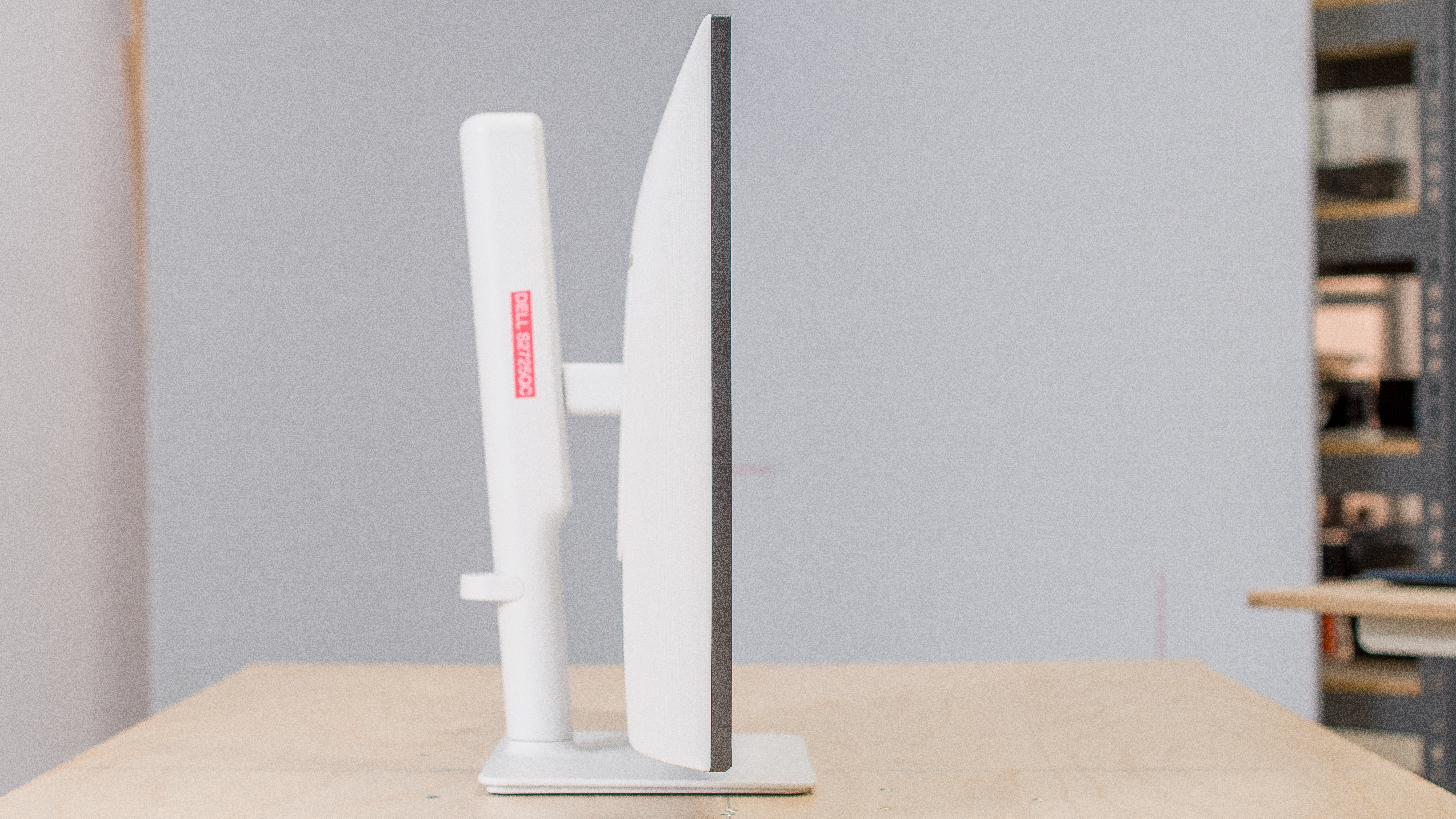

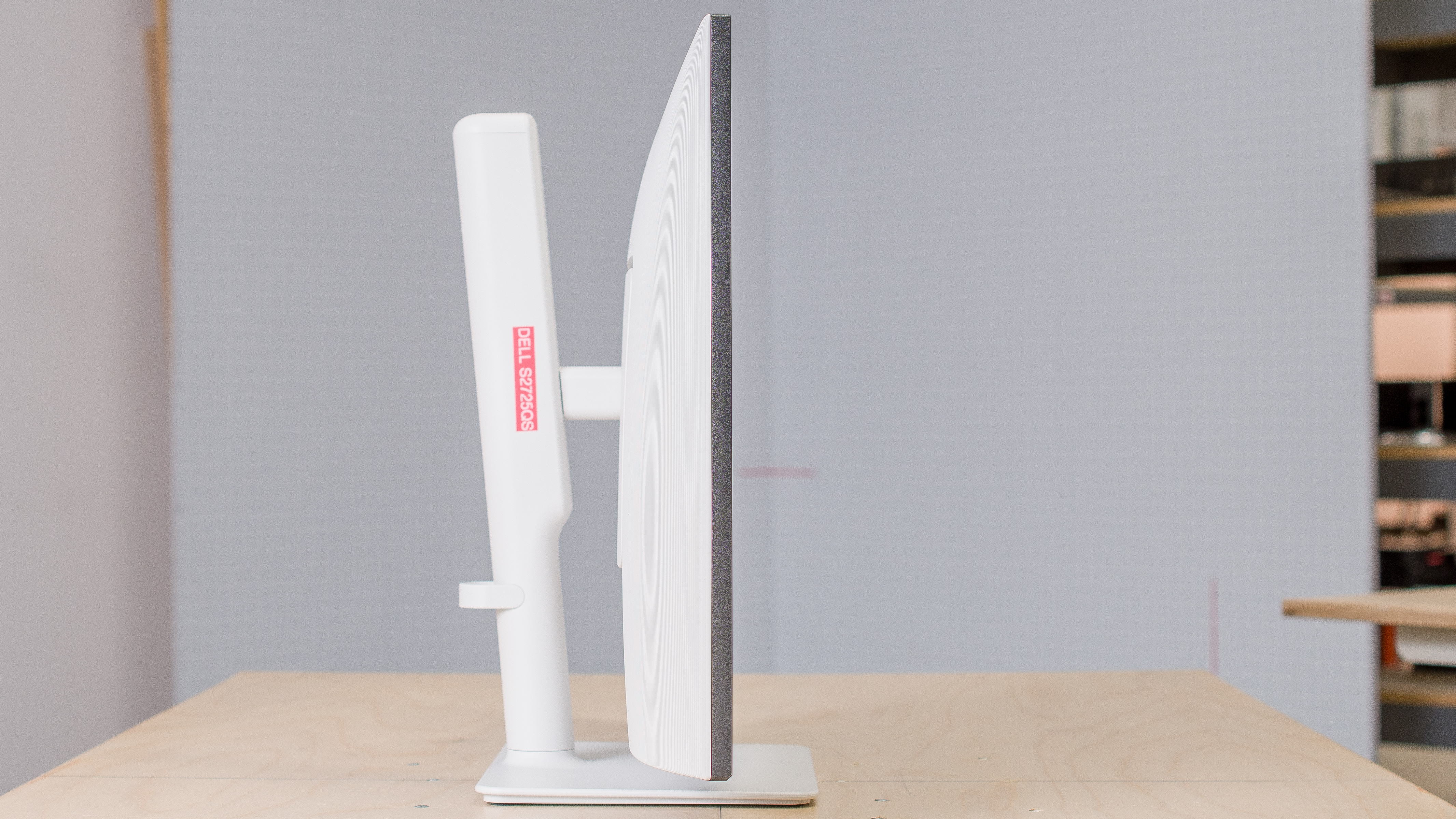

Thickness Picture
Base Width
24.1" (61.3 cm)
24.0" (61.0 cm)
Base Depth
10.8" (27.5 cm)
11.8" (30.0 cm)
Thickness (With Display)
8.1" (20.5 cm)
8.1" (20.5 cm)
Weight (With Display)
19.0 lbs (8.6 kg)
15.5 lbs (7.0 kg)

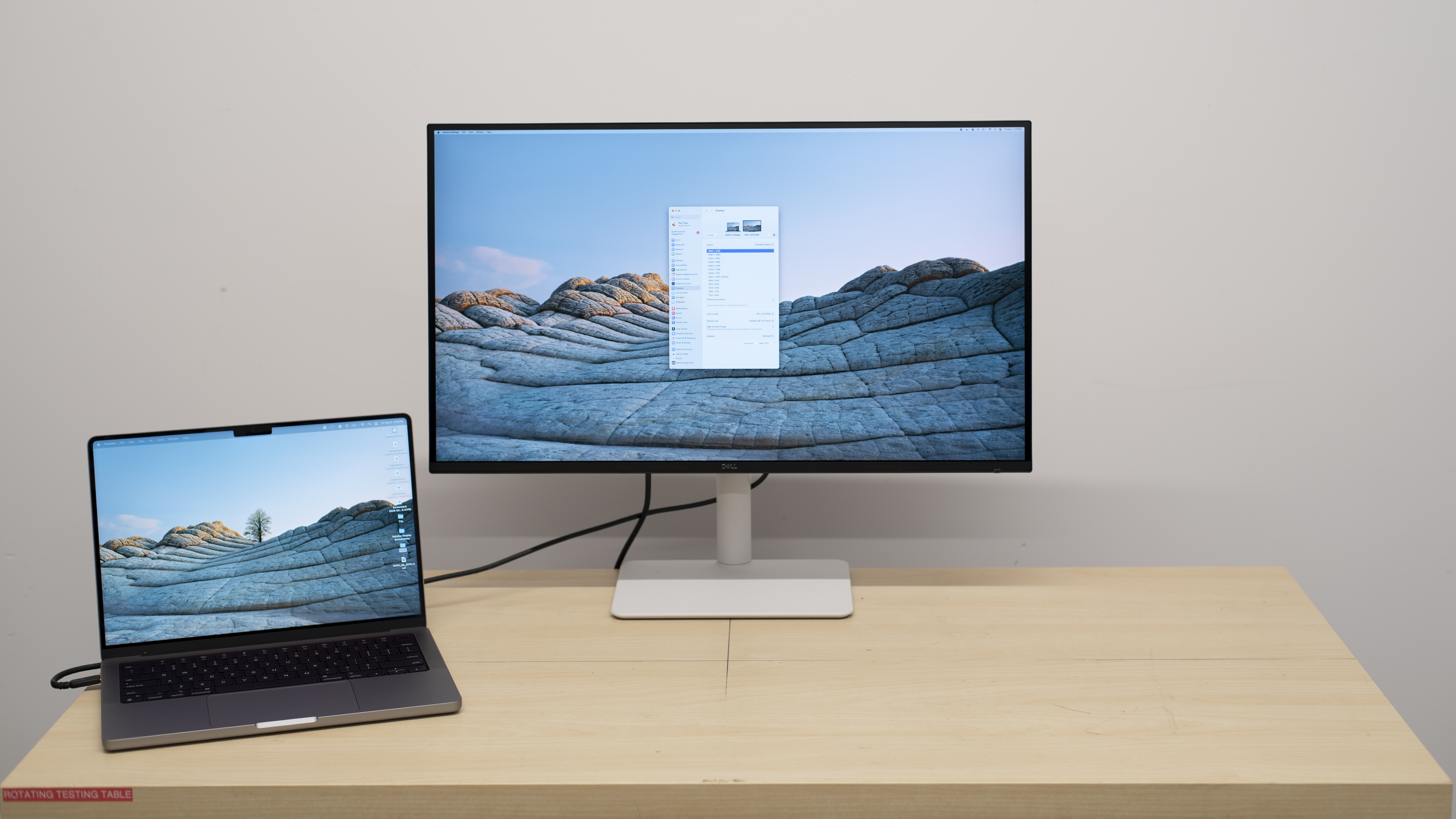

Display

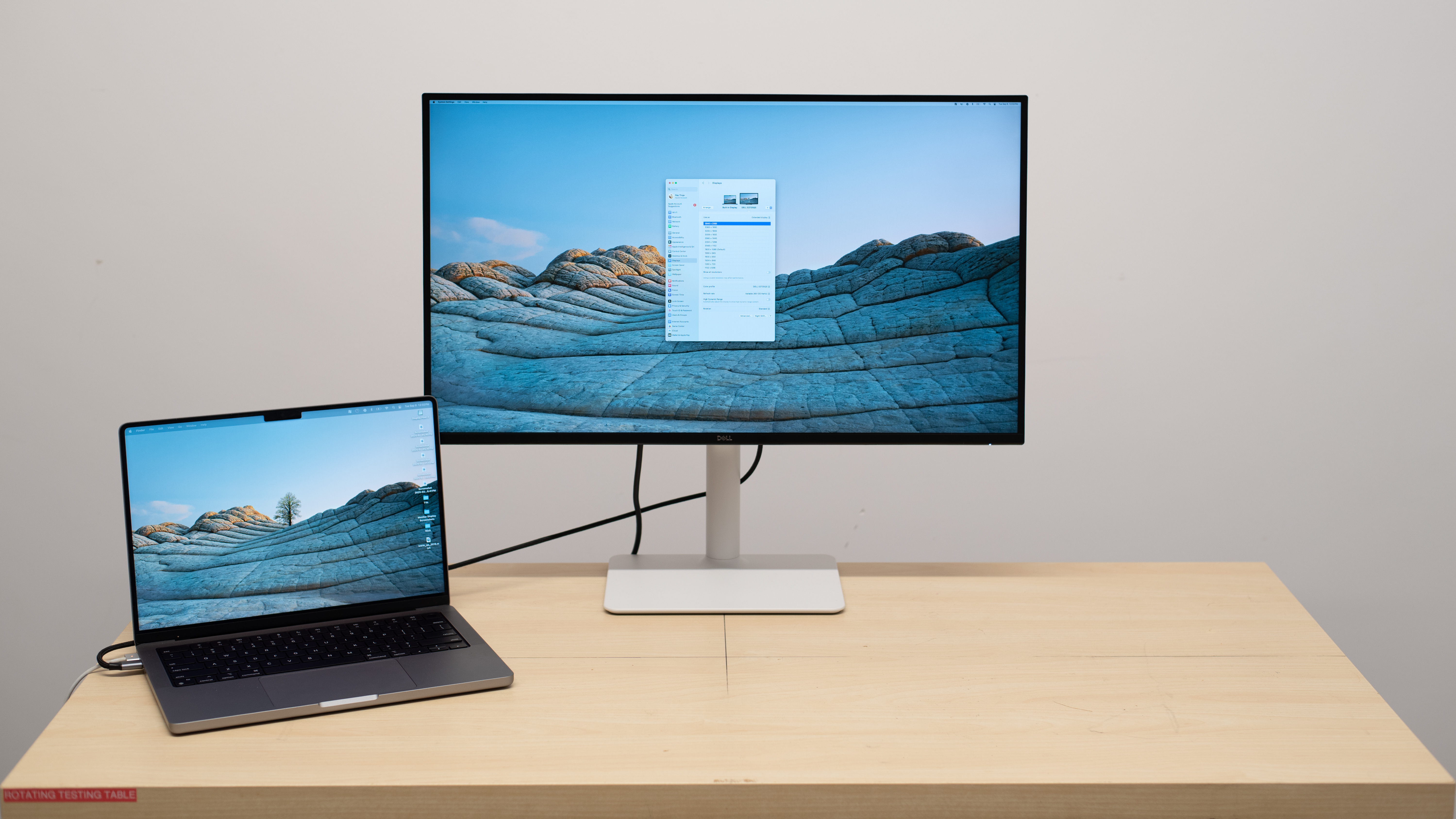

Display Picture
Size
32"
32"
Housing Width
28.3" (71.8 cm)
28.1" (71.5 cm)
Housing Height
16.9" (42.8 cm)
17.0" (43.2 cm)
Thickness (Without Stand)
2.8" (7.2 cm)
2.4" (6.2 cm)
Weight (Without Stand)
13.1 lbs (5.9 kg)
9.7 lbs (4.4 kg)
Borders Size (Bezels)
0.4" (1.1 cm)
0.4" (0.9 cm)

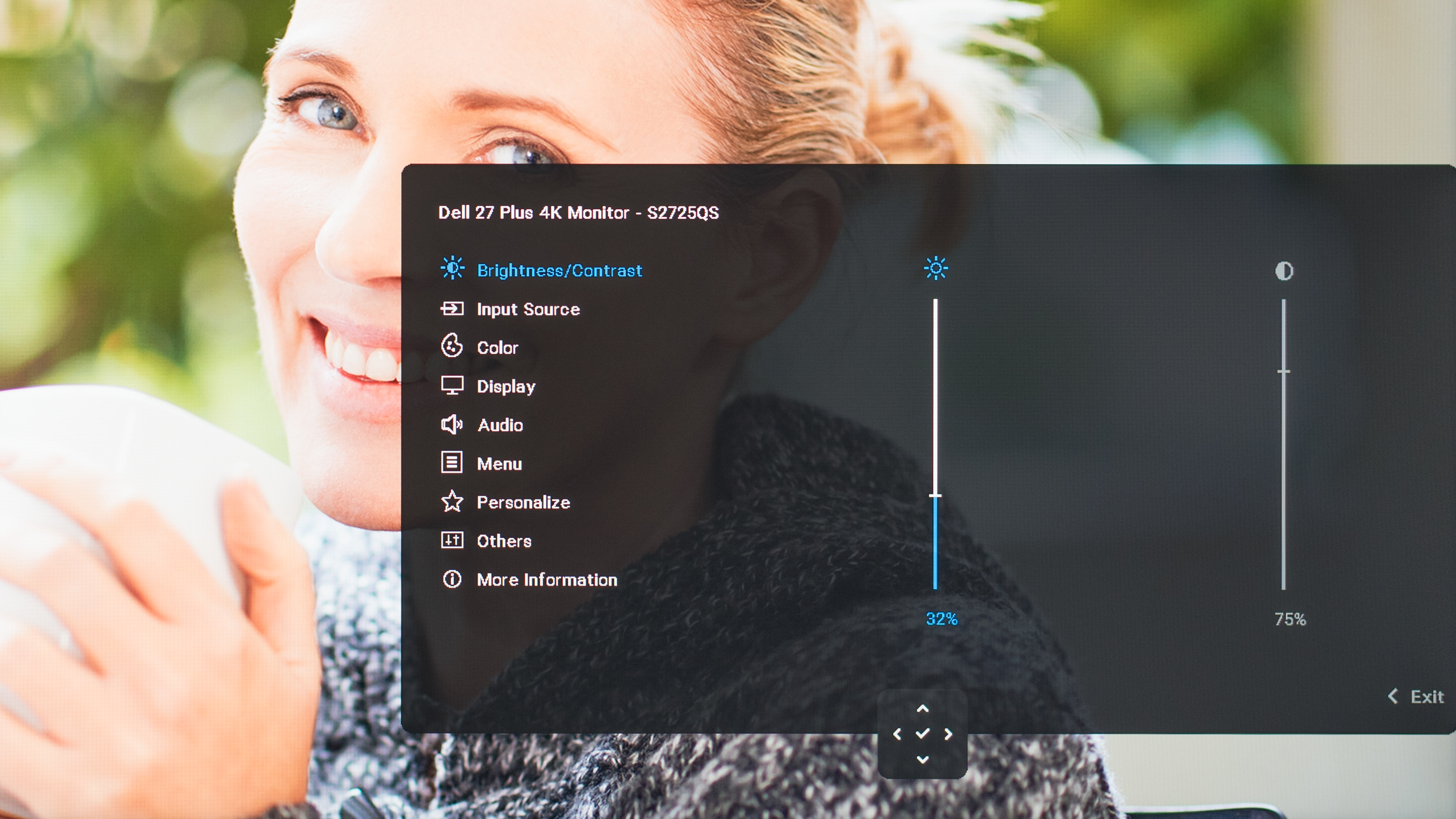

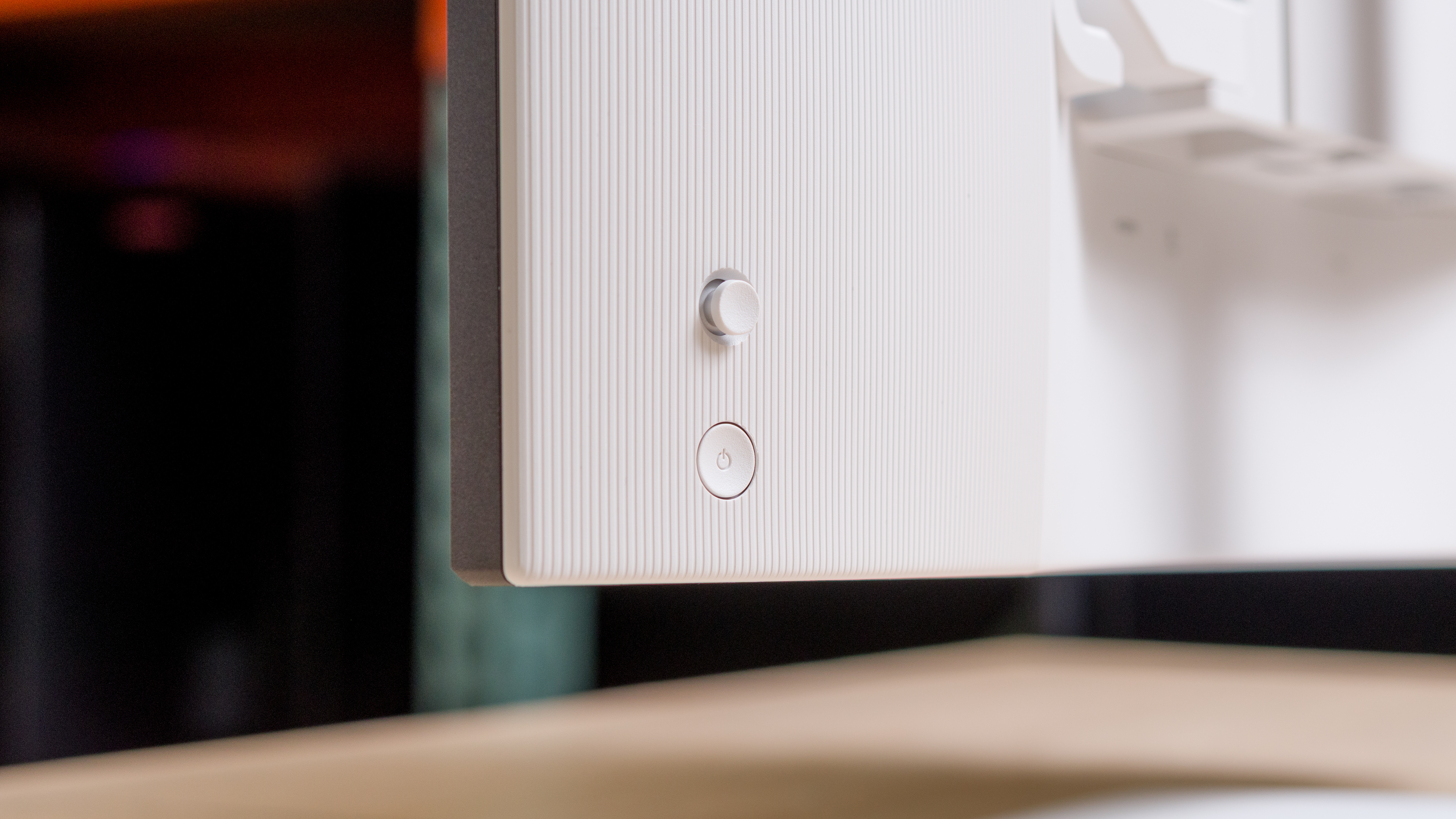

Controls

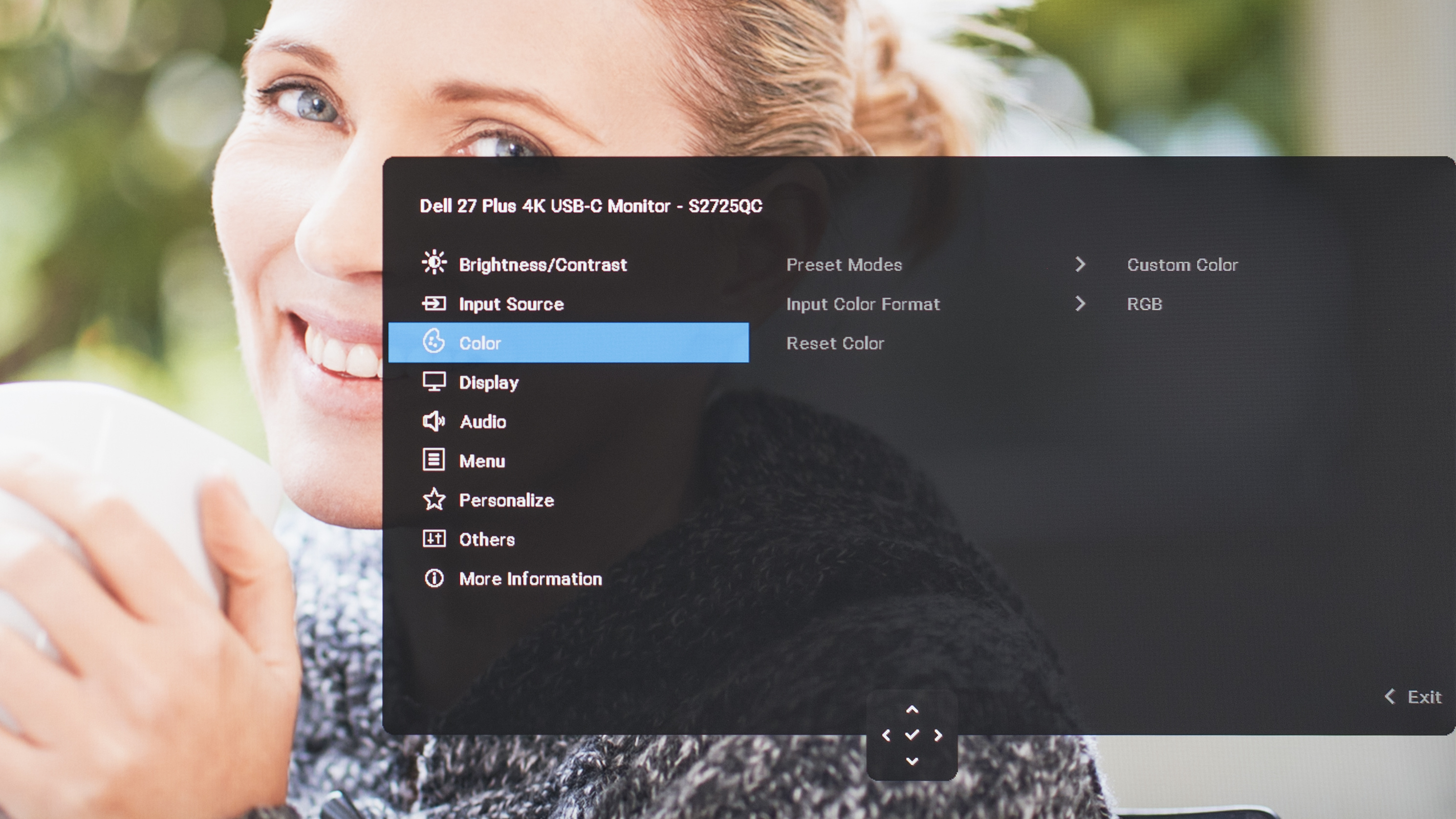

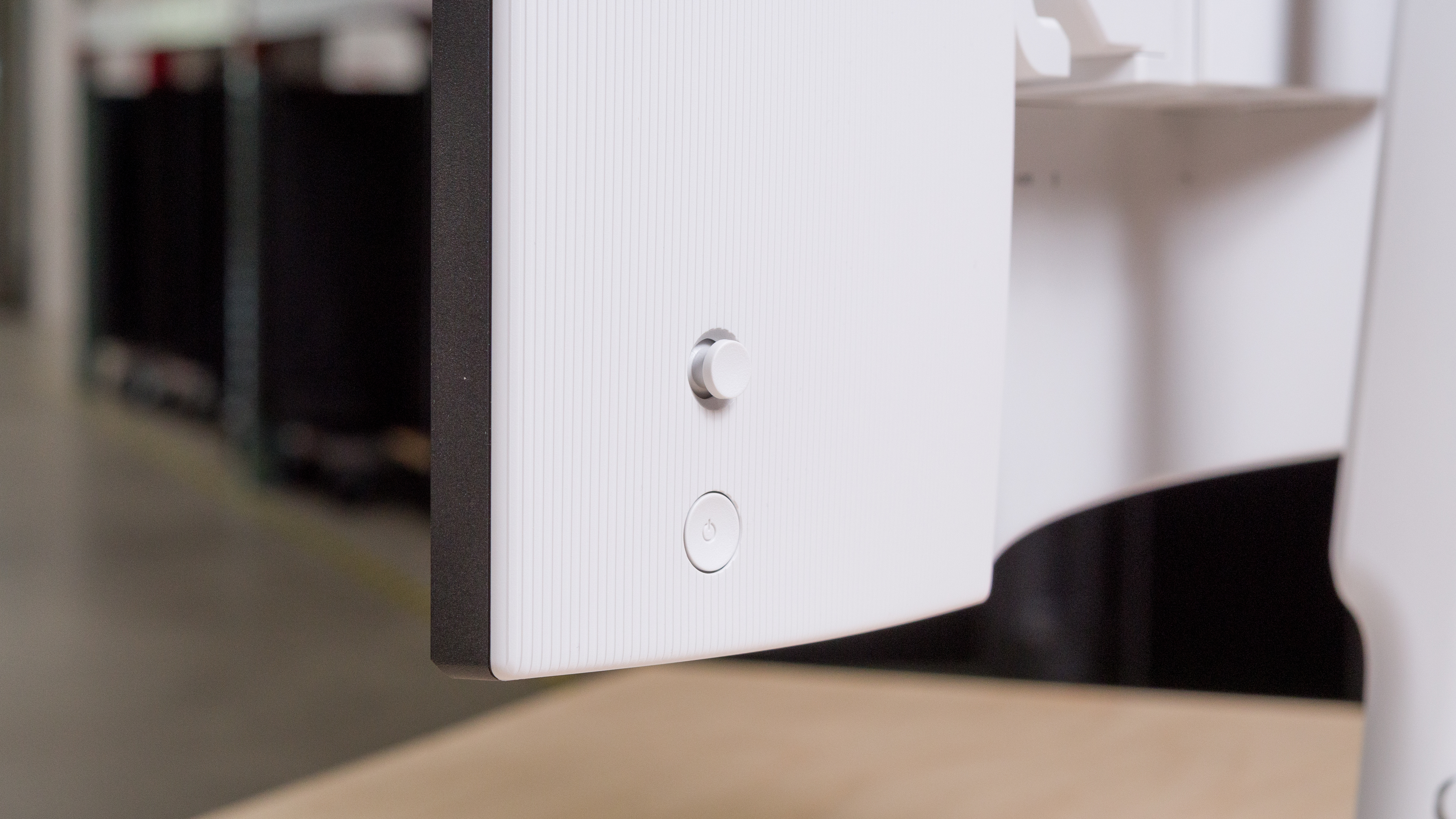

Controls Picture
In The Box

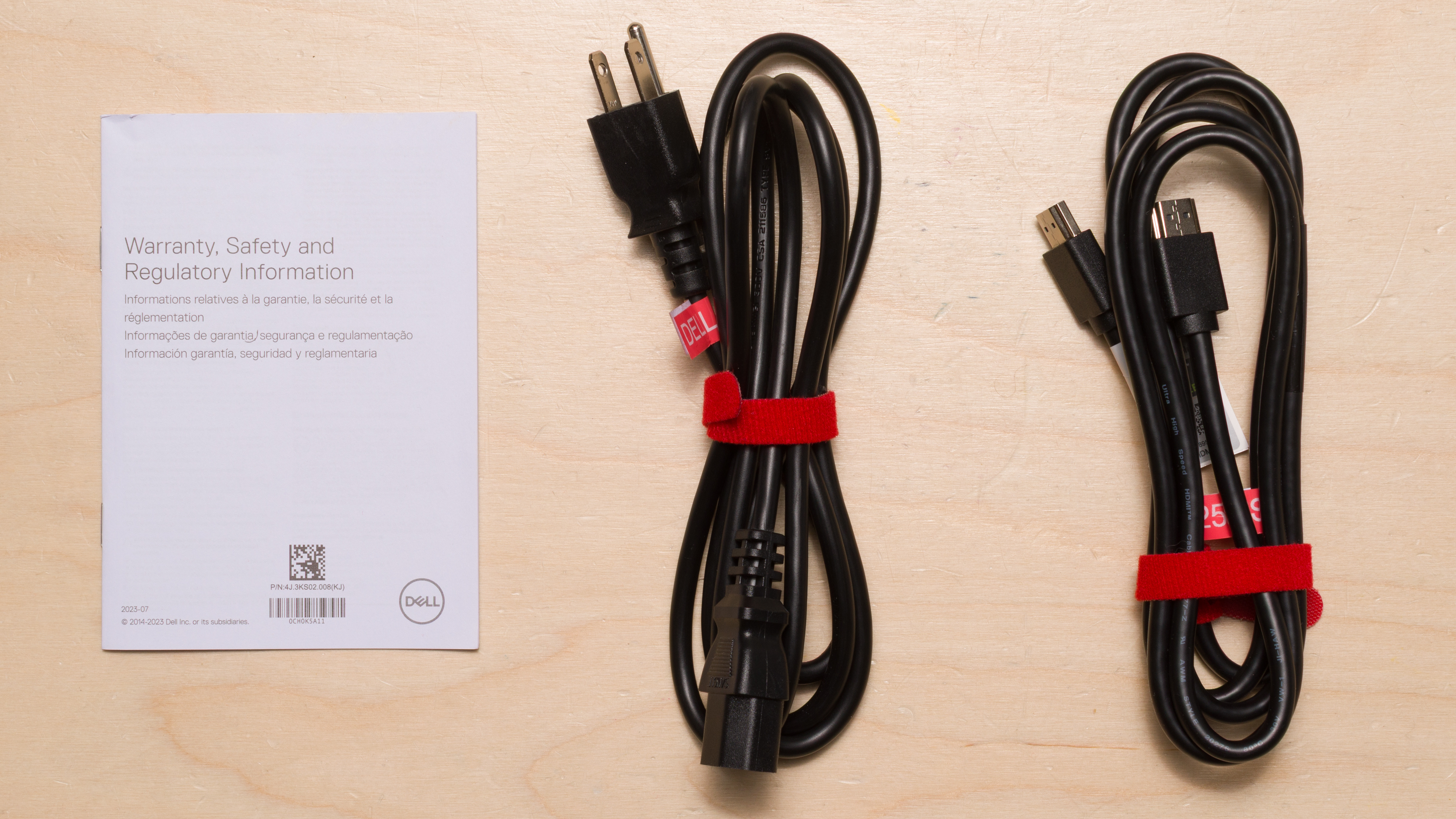

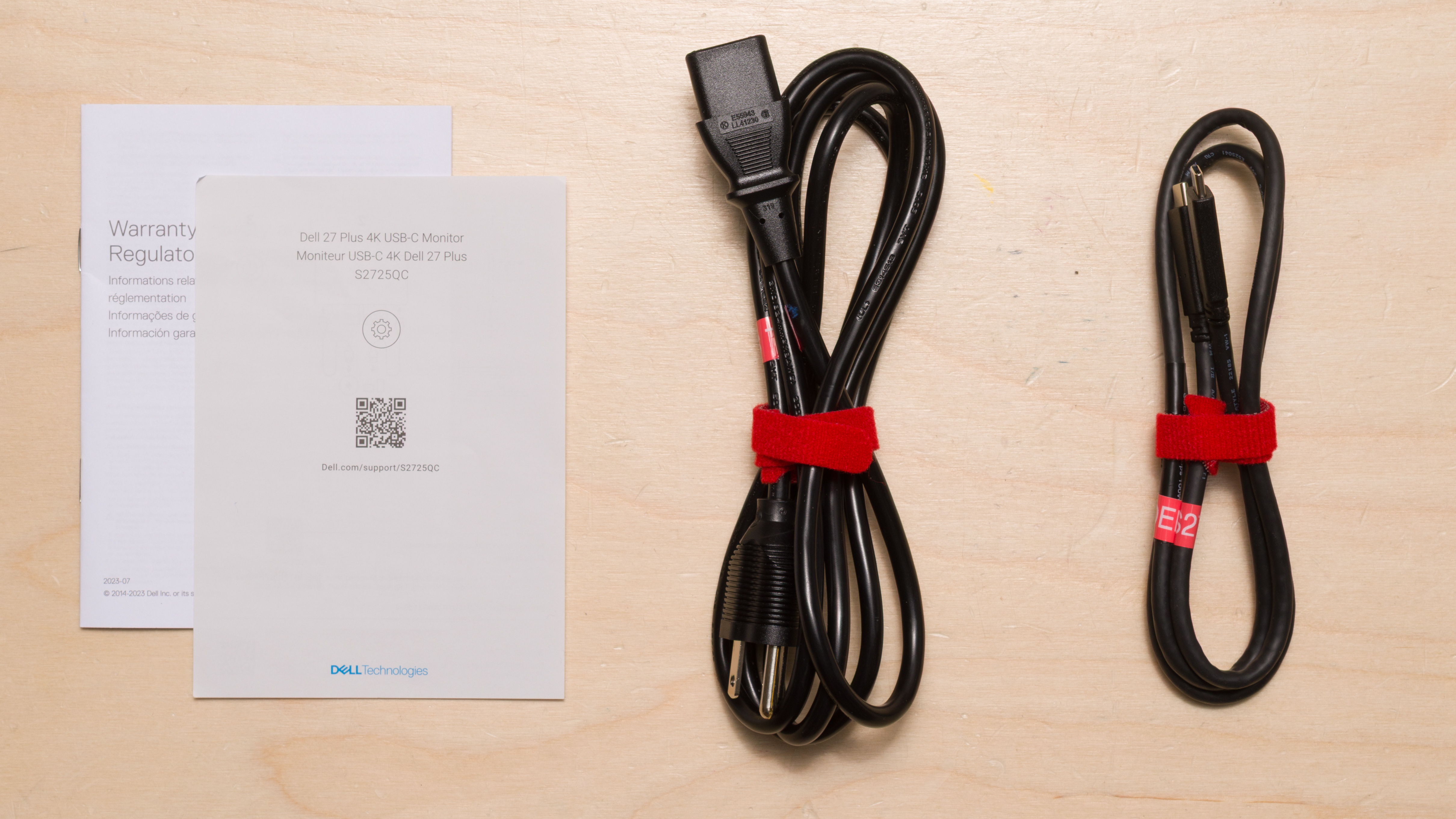

In The Box Picture
Power Supply
External Brick
External Brick
Picture Quality
Contrast
10
10

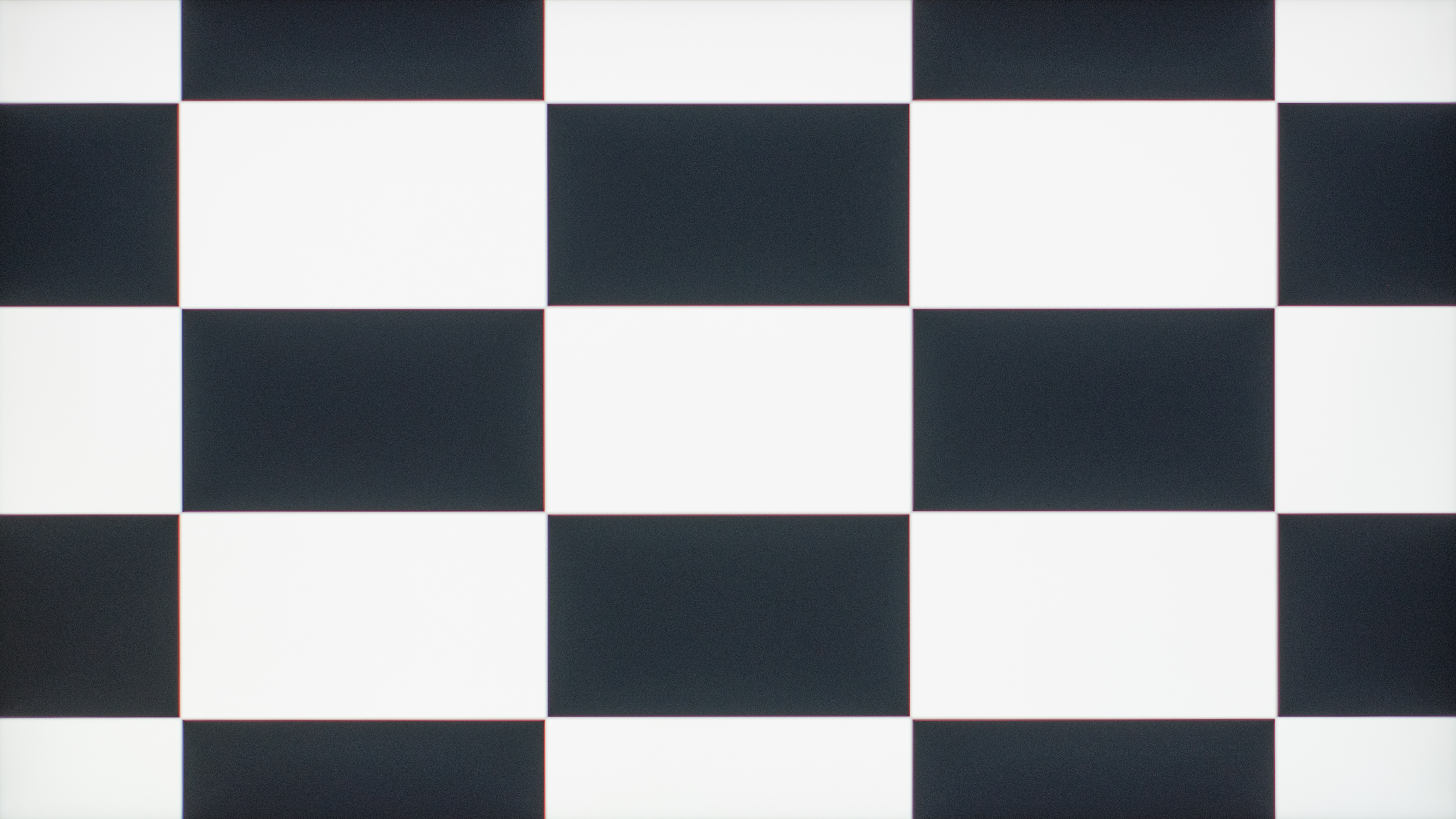

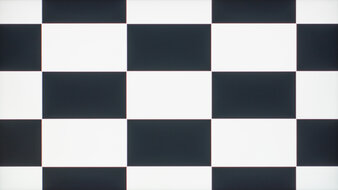

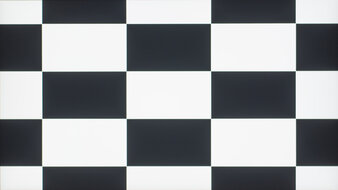

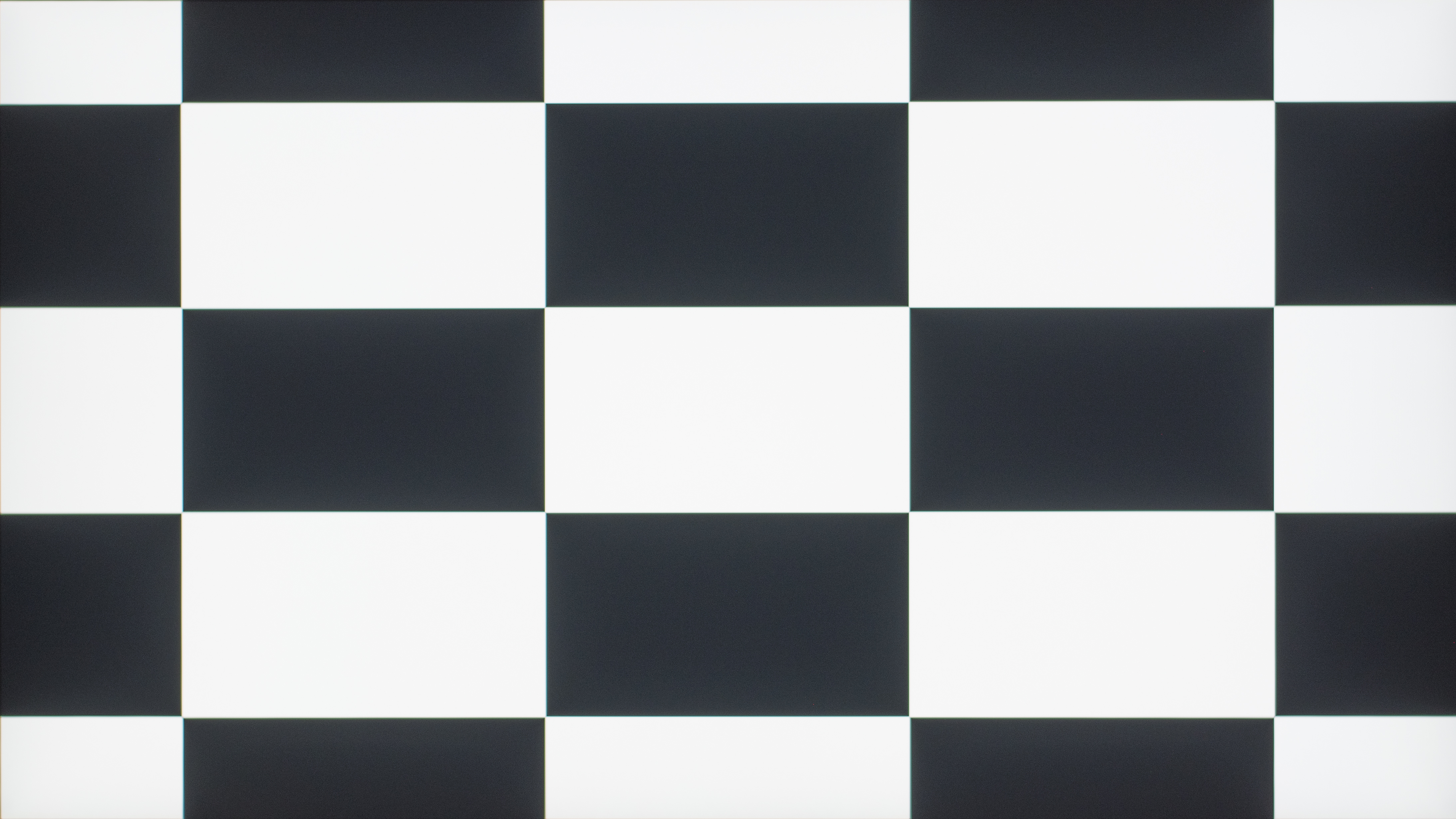

Checkerboard Picture
Native Contrast
Inf : 1
Inf : 1
Contrast With Local Dimming
Inf : 1
Inf : 1
Local Dimming
10
10
Local Dimming Video
Local Dimming
No
No

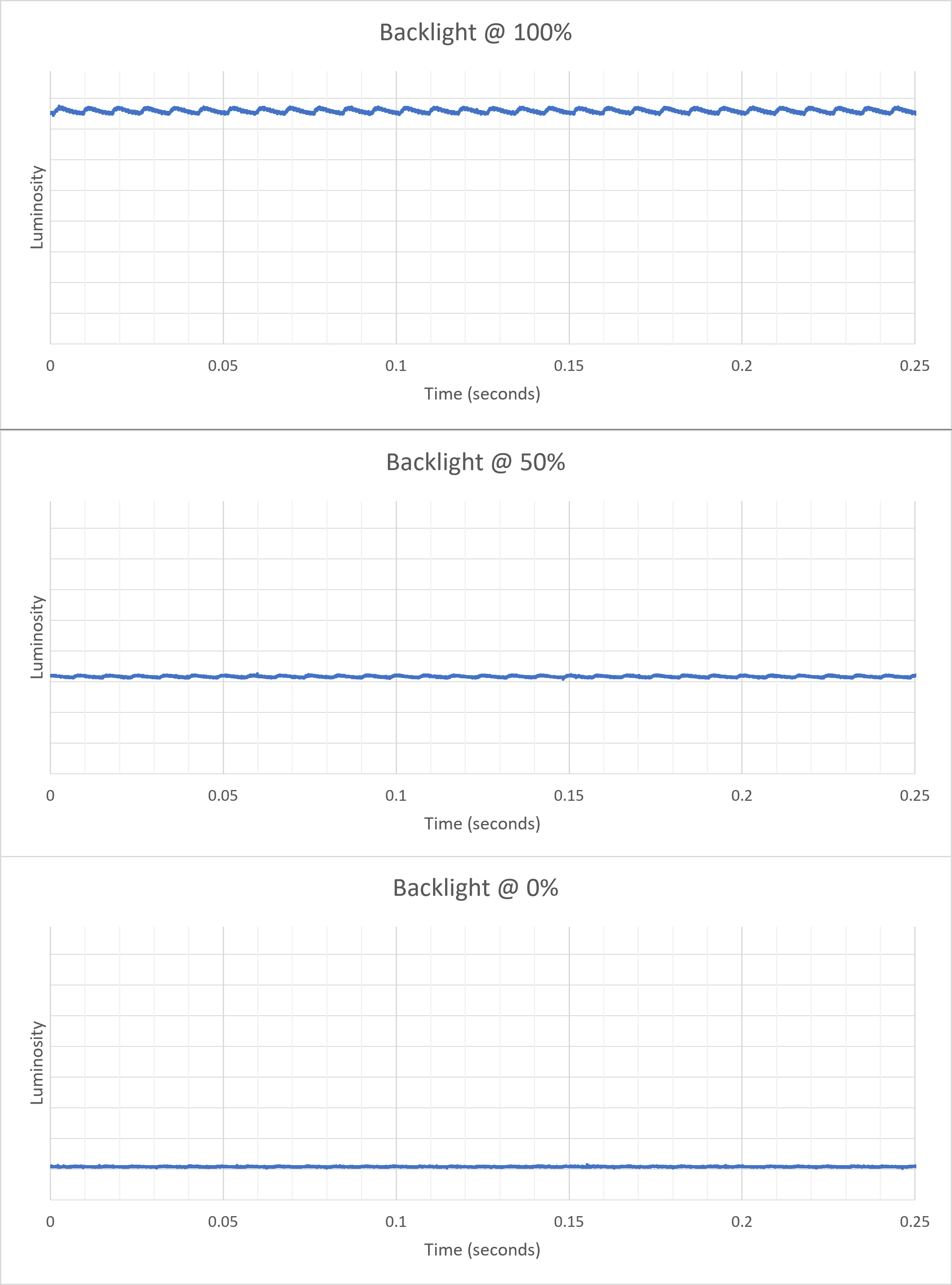

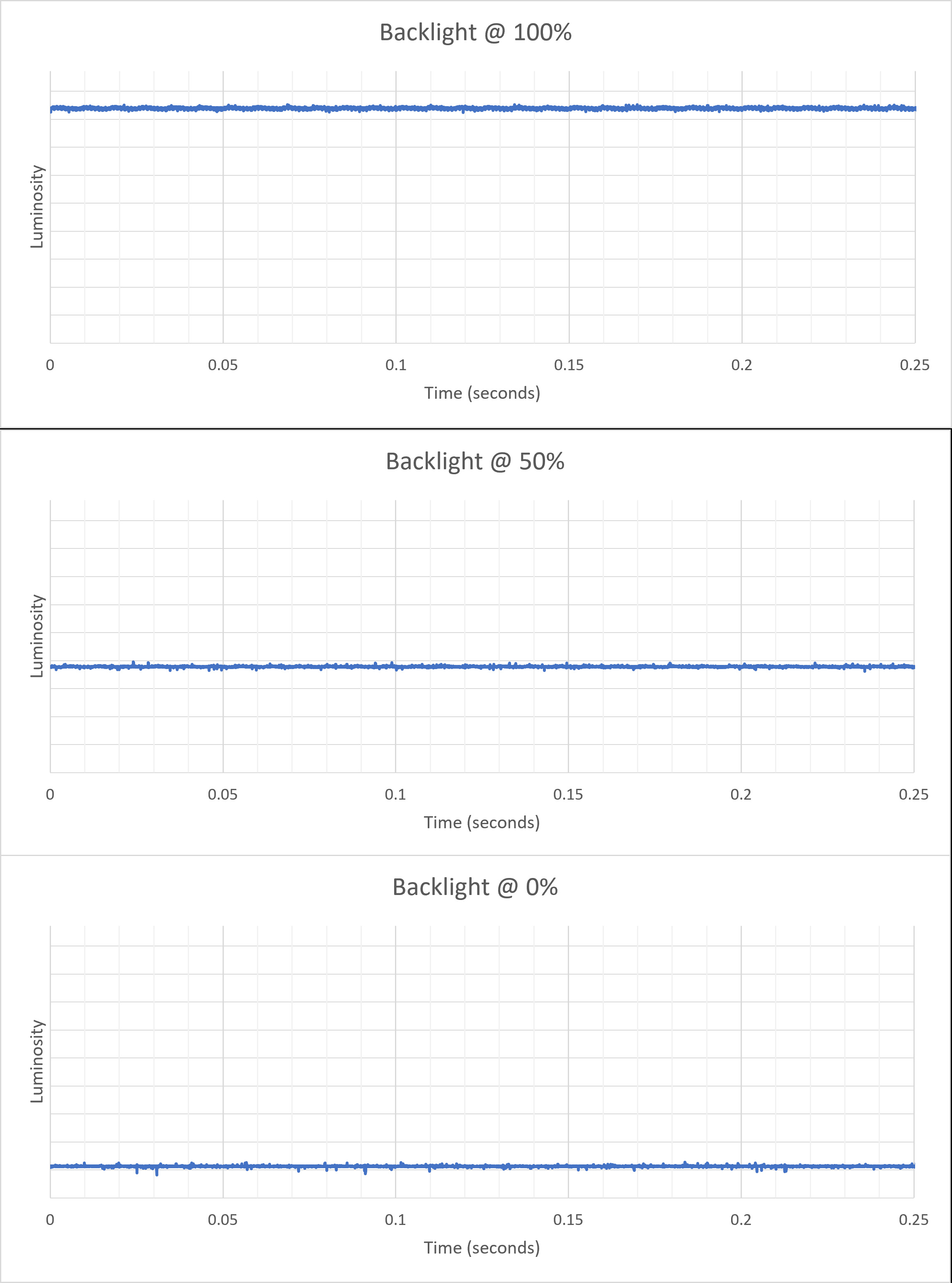

Backlight
No Backlight
No Backlight
SDR Brightness
7.5
7.1
Real Scene
286 cd/m²
240 cd/m²
Peak 2% Window
445 cd/m²
430 cd/m²
Peak 10% Window
444 cd/m²
429 cd/m²
Peak 25% Window
358 cd/m²
339 cd/m²
Peak 50% Window
304 cd/m²
291 cd/m²
Peak 100% Window
255 cd/m²
270 cd/m²
Sustained 2% Window
442 cd/m²
426 cd/m²
Sustained 10% Window
438 cd/m²
425 cd/m²
Sustained 25% Window
354 cd/m²
337 cd/m²
Sustained 50% Window
302 cd/m²
290 cd/m²
Sustained 100% Window
253 cd/m²
270 cd/m²
Automatic Brightness Limiting (ABL)
0.036
0.032
Minimum Brightness
13 cd/m²
28 cd/m²
HDR Brightness
6.7
7.0

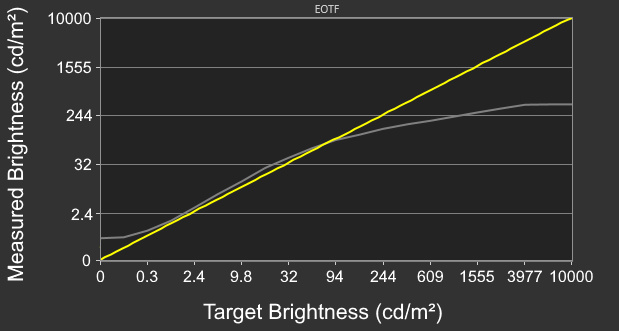

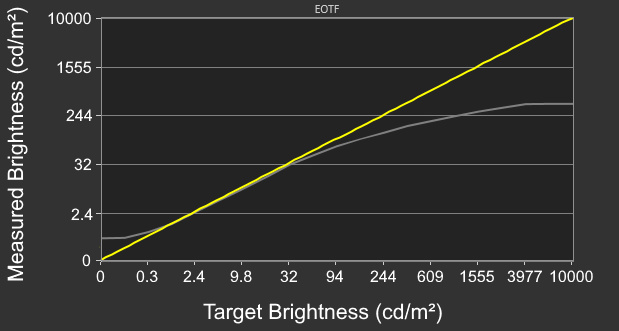

EOTF
VESA DisplayHDR Certification
DisplayHDR TRUE BLACK 400
DisplayHDR TRUE BLACK 400
Real Scene
397 cd/m²
451 cd/m²
Peak 2% Window
1,025 cd/m²
1,080 cd/m²
Peak 10% Window
466 cd/m²
694 cd/m²
Peak 25% Window
369 cd/m²
352 cd/m²
Peak 50% Window
309 cd/m²
279 cd/m²
Peak 100% Window
255 cd/m²
258 cd/m²
Sustained 2% Window
1,018 cd/m²
1,051 cd/m²
Sustained 10% Window
460 cd/m²
681 cd/m²
Sustained 25% Window
365 cd/m²
351 cd/m²
Sustained 50% Window
308 cd/m²
278 cd/m²
Sustained 100% Window
254 cd/m²
258 cd/m²
Automatic Brightness Limiting (ABL)
0.079
0.089
Horizontal Viewing Angle
10
10
Horizontal Viewing Angle Video

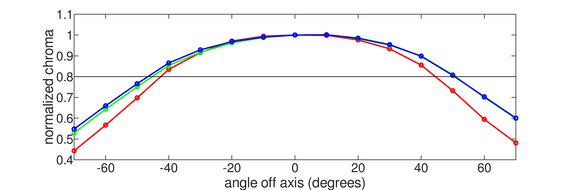

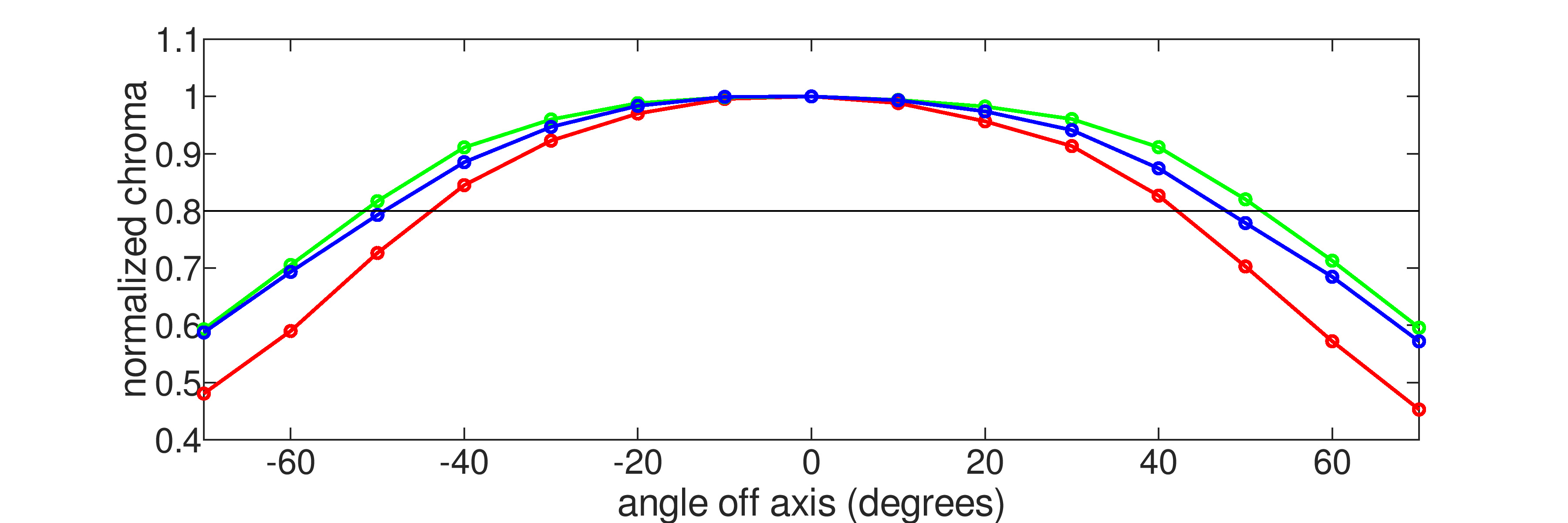

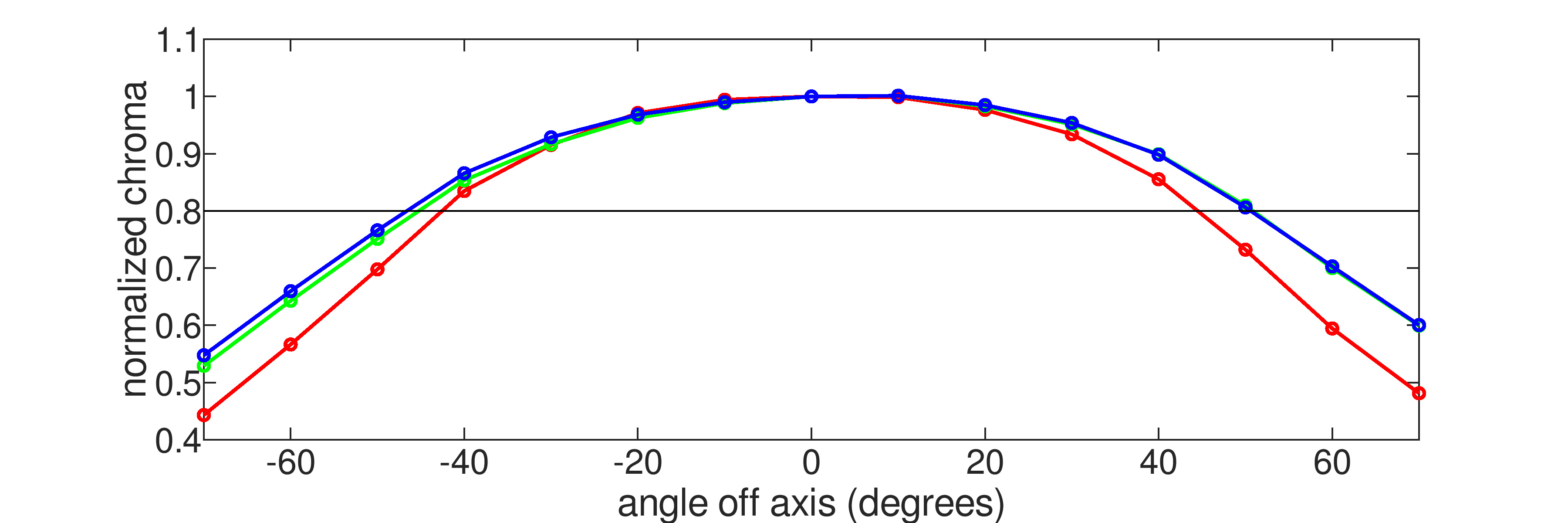

Horizontal Chroma Graph
Color Washout From Left
70°
70°
Color Washout From Right
70°
70°

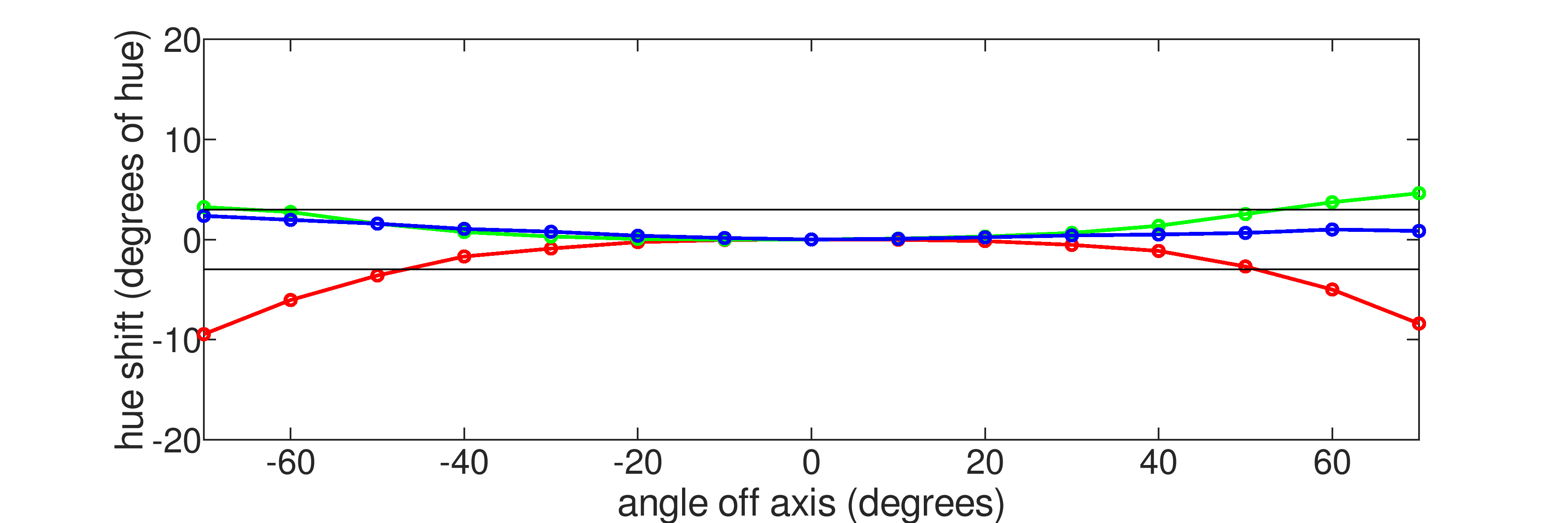

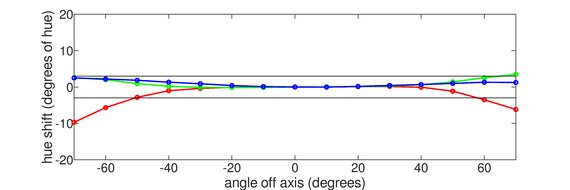

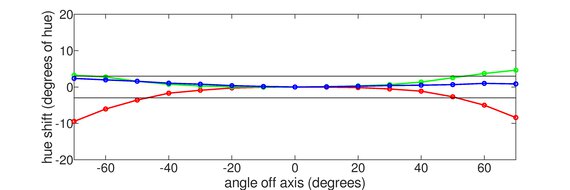

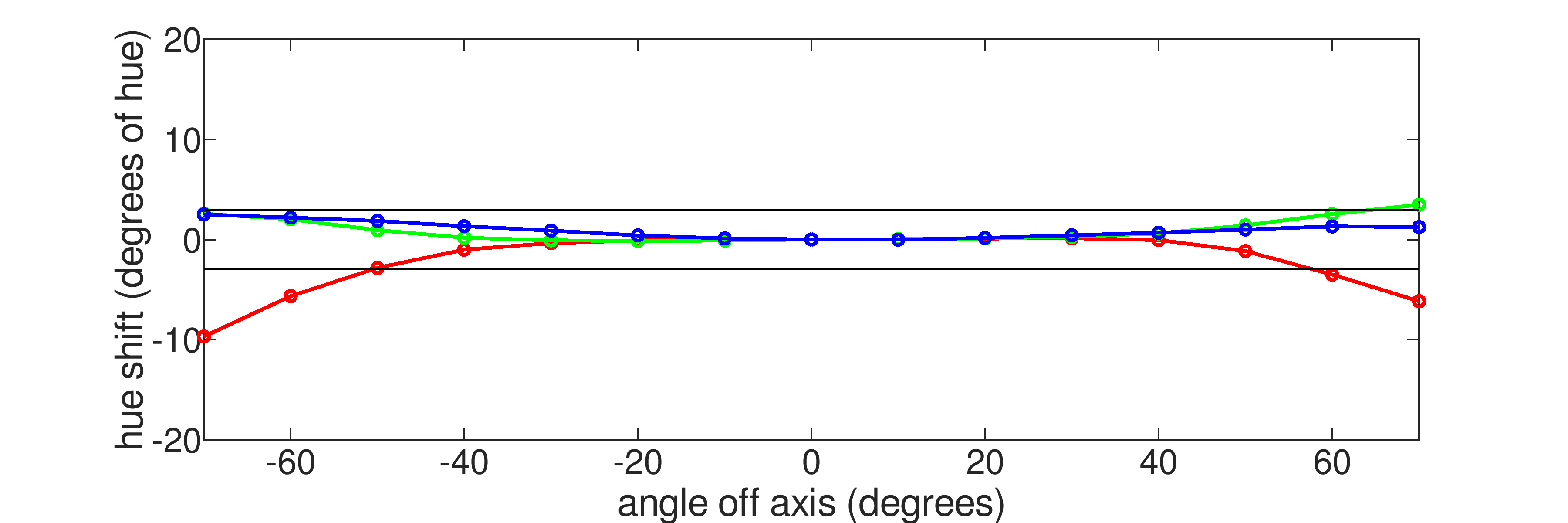

Horizontal Hue Graph
Color Shift From Left
70°
70°
Color Shift From Right
70°
70°

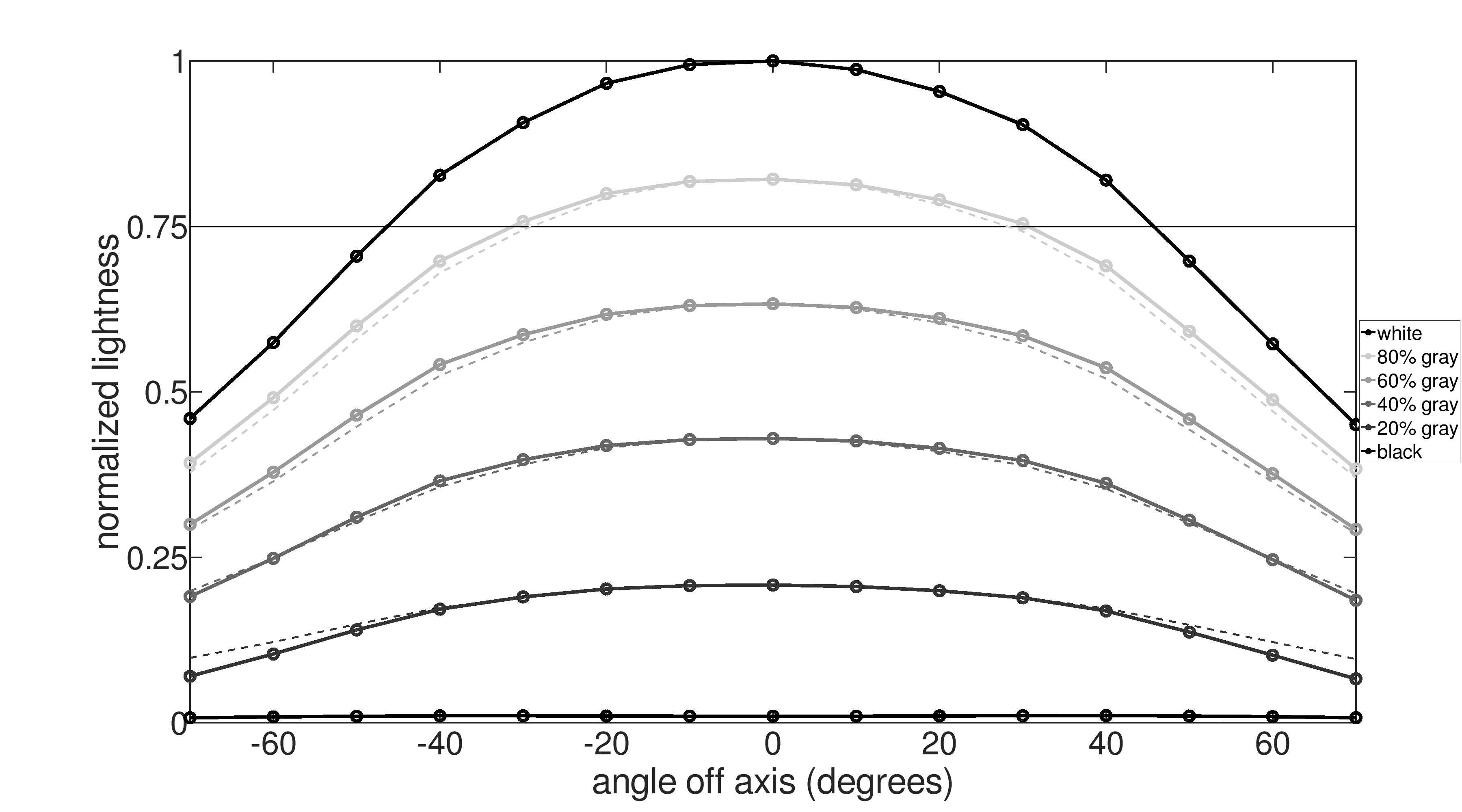

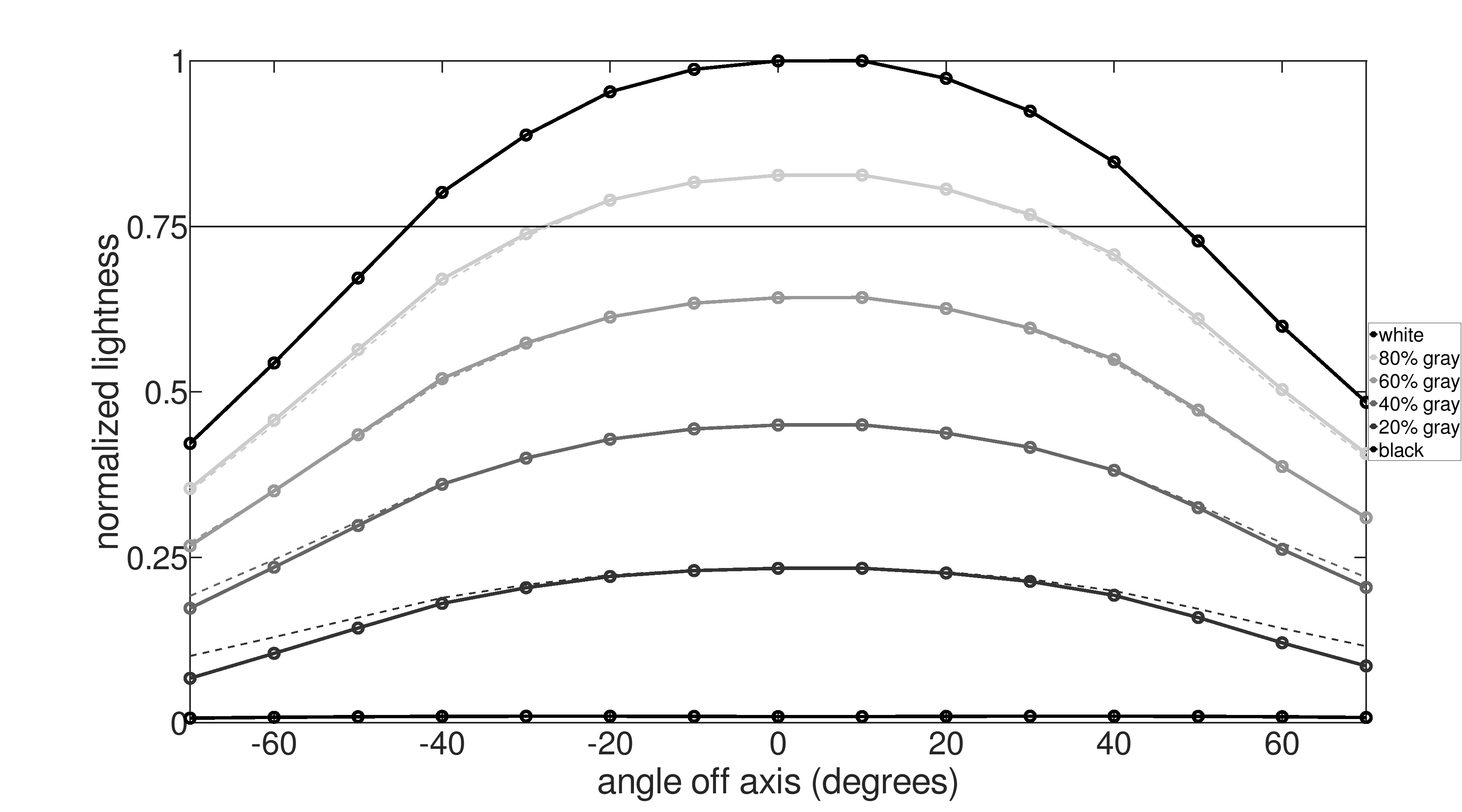

Horizontal Lightness Graph
Brightness Loss From Left
70°
70°
Brightness Loss From Right
70°
70°

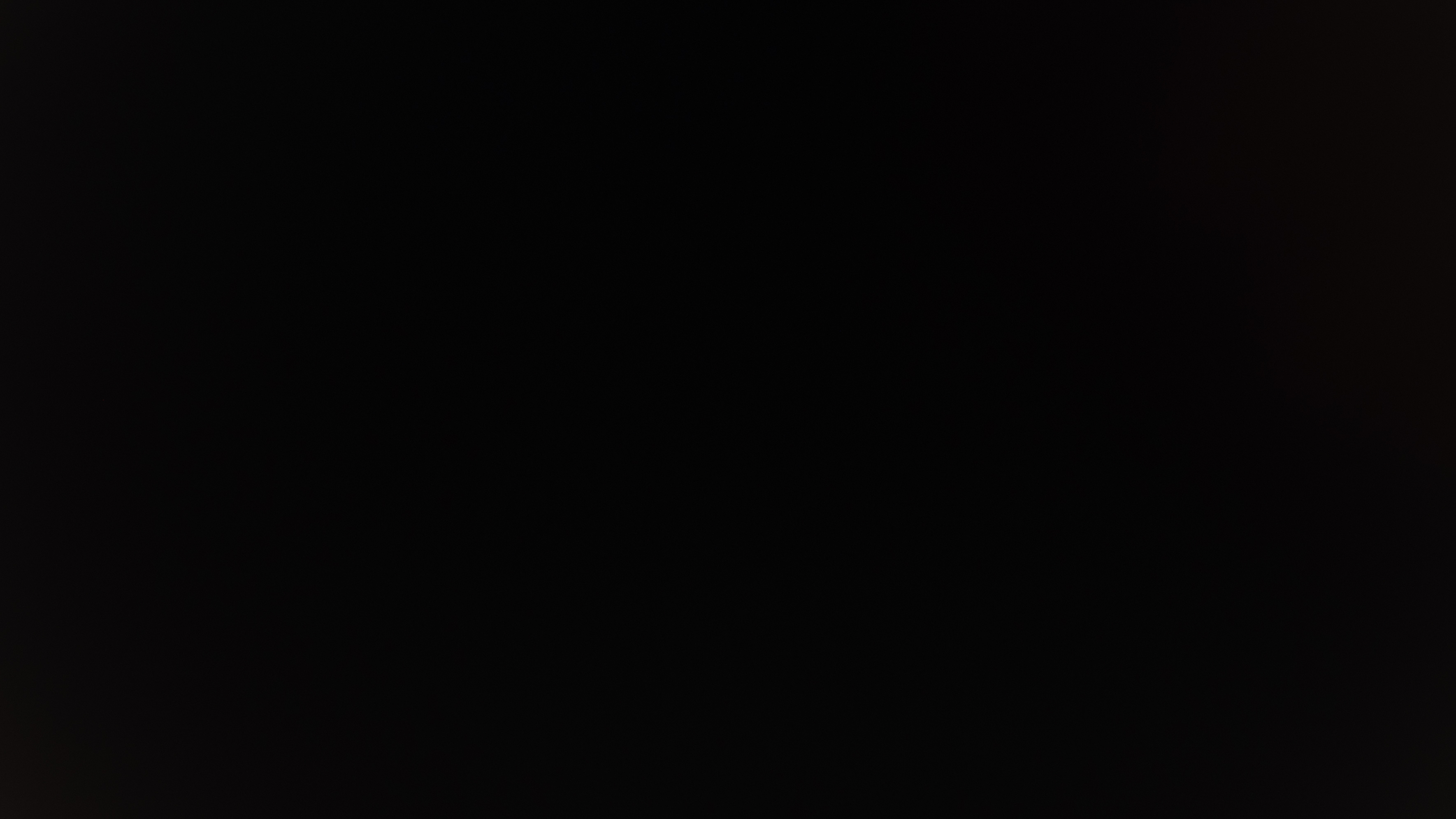

Black Level Raise From Left
70°
70°
Black Level Raise From Right
70°
70°
Gamma Shift From Left
70°
70°
Gamma Shift From Right
70°
70°
Vertical Viewing Angle
10
10
Vertical Viewing Angle Video
Vertical Chroma Graph
Color Washout From Below
70°
70°
Color Washout From Above
70°
70°
Vertical Hue Graph
Color Shift From Below
70°
70°
Color Shift From Above
70°
70°
Vertical Lightness Graph
Brightness Loss From Below
70°
70°
Brightness Loss From Above
70°
70°
Black Level Raise From Below
70°
70°
Black Level Raise From Above
70°
70°
Gamma Shift From Below
70°
70°
Gamma Shift From Above
70°
70°
Gray Uniformity
8.8
8.7

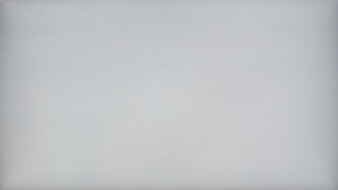

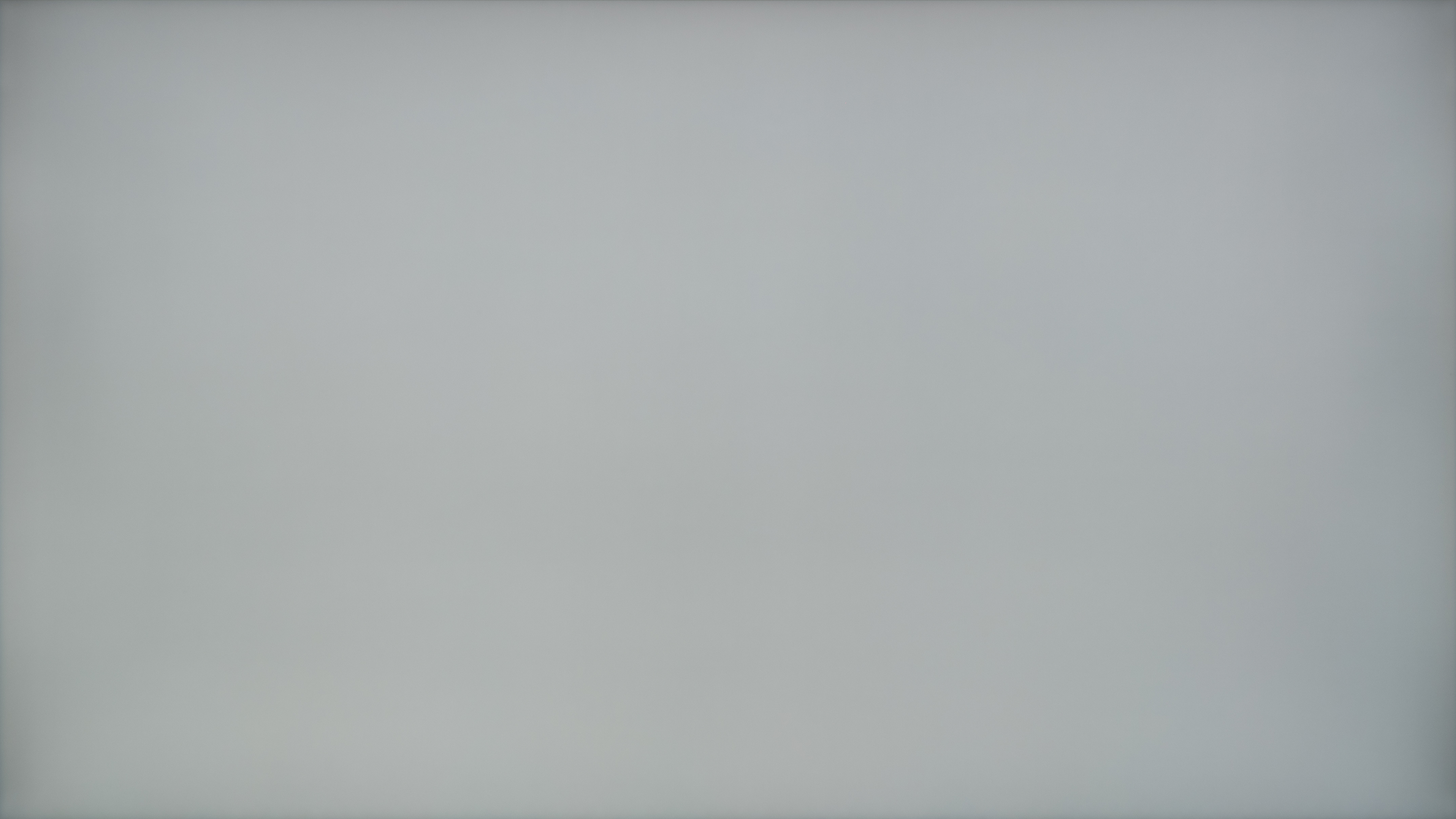

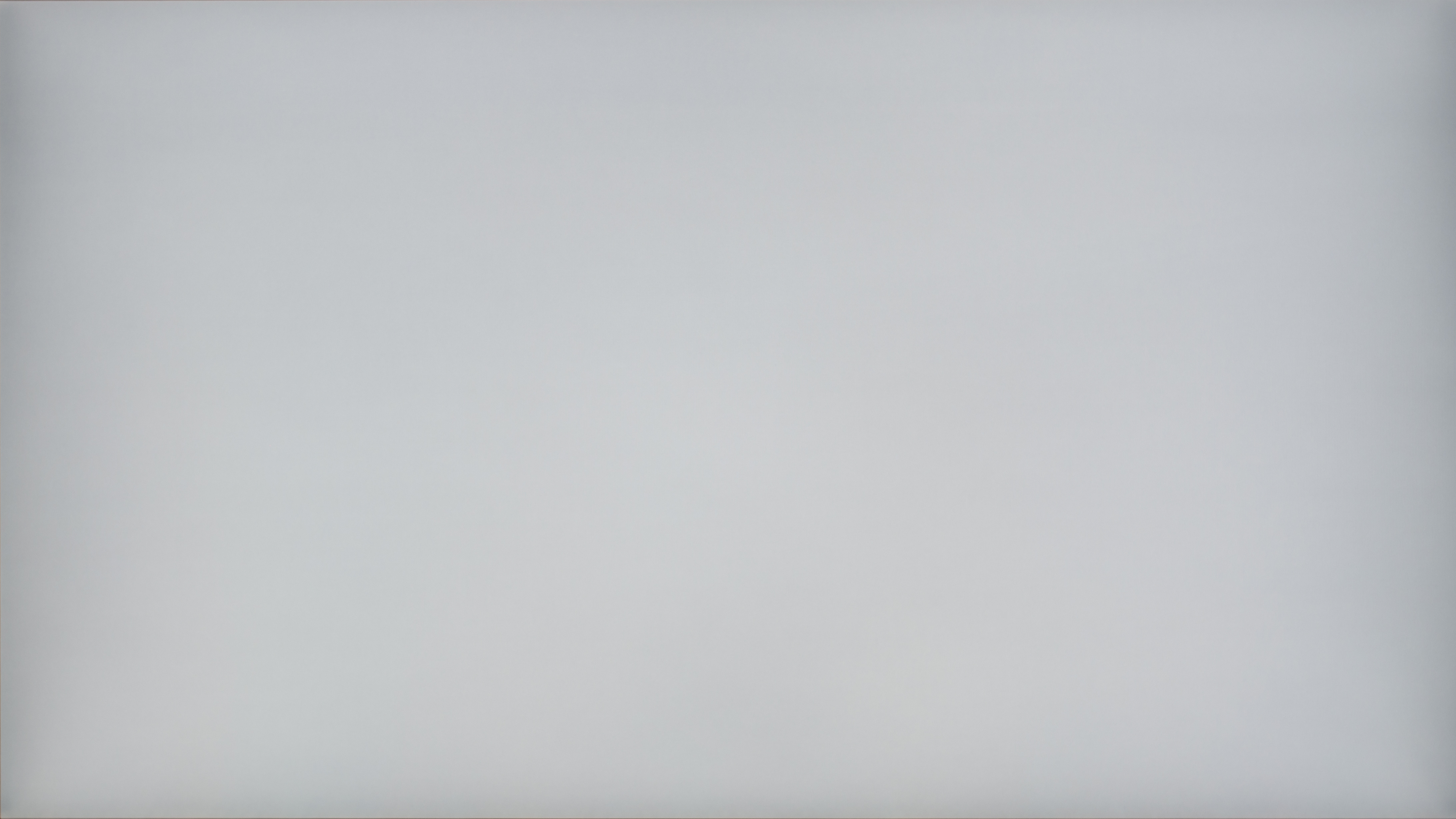

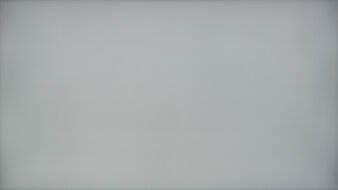

50% Uniformity Picture
50% Std. Dev.
0.761%
1.633%
50% DSE
0.124%
0.122%
Black Uniformity
10
10

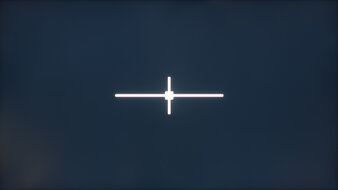

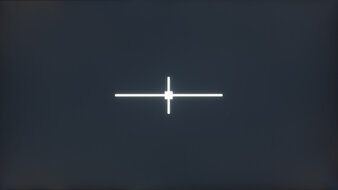

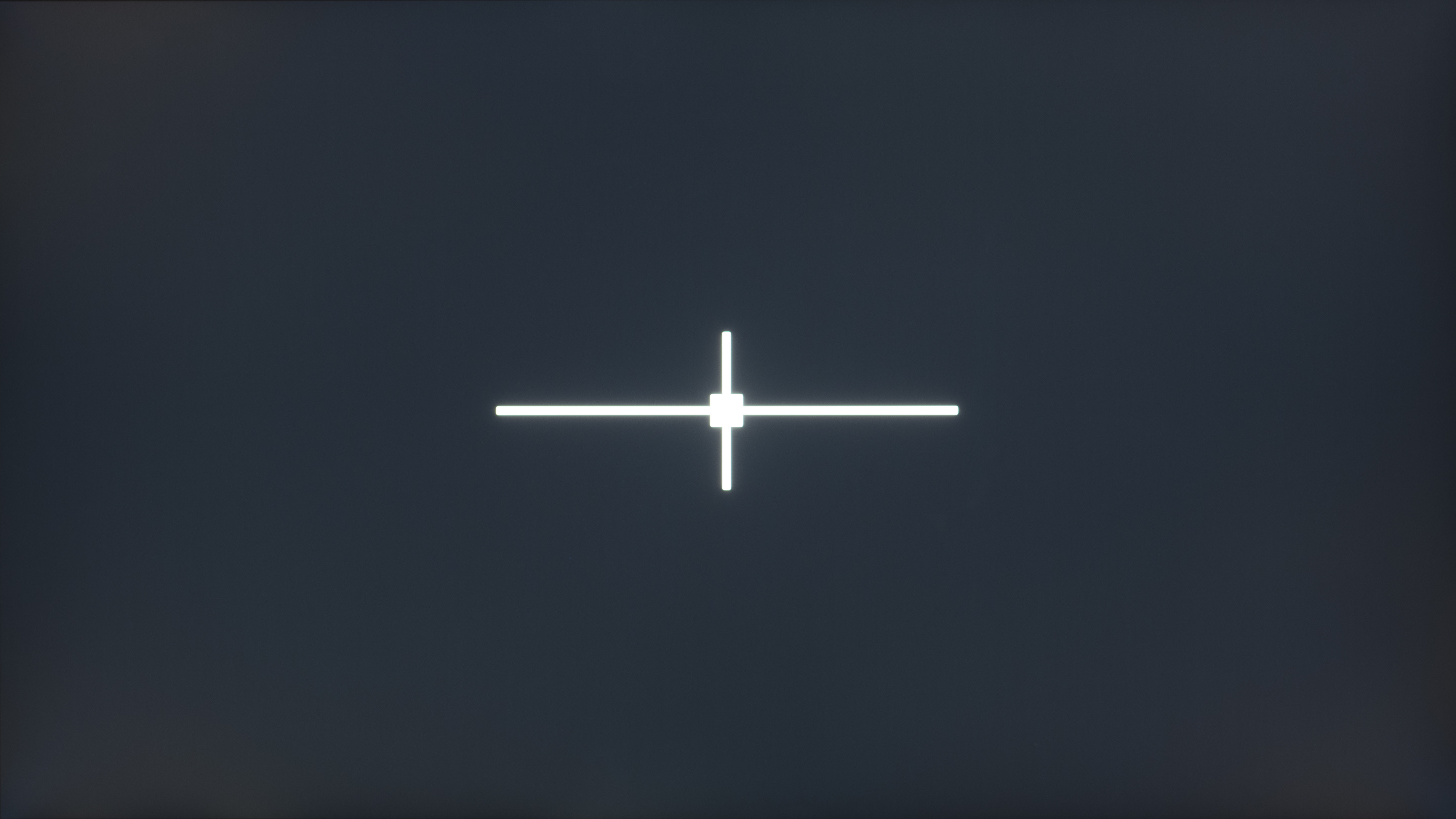

Native Black Uniformity Picture
Native Std. Dev.
0.214%
0.255%
Black Uniformity Picture With Local Dimming
Std. Dev. w/ L.D.
N/A
N/A
Color Accuracy (Pre-Calibration)
7.5
8.2

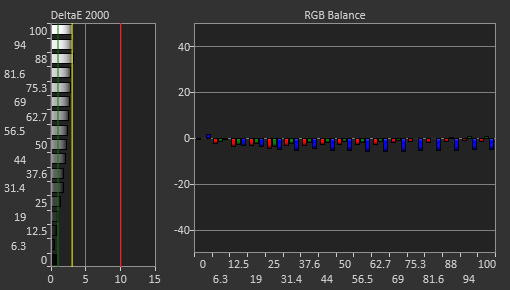

Pre Calibration Picture

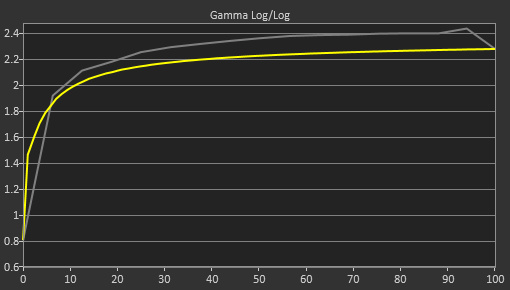

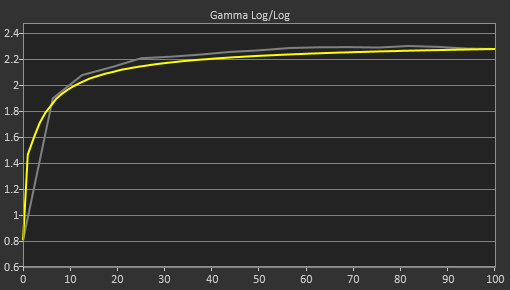

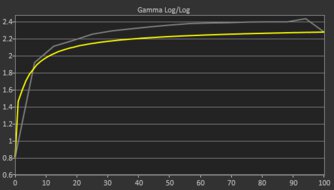

Pre Gamma Curve Picture
Pre Color Picture
Picture Mode
sRGB Cal Mode
sRGB Cal Mode
sRGB Gamut Area xy
97.4%
104.1%
White Balance dE (Avg.)
6.02
3.59
Color Temperature (Avg.)
6,469 K
6,197 K
Gamma (Avg.)
2.09
2.34
Color dE (Avg.)
3.56
2.26
Contrast Setting
N/A
N/A
RGB Settings
Default
Default
Gamma Setting
Default
Default
Brightness Setting
34
80
Measured Brightness
126 cd/m²
114 cd/m²
Brightness Locked
No
No
Color Accuracy (Post-Calibration)
9.7
9.1
Post Calibration Picture

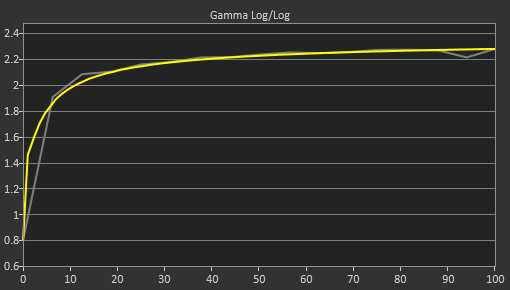

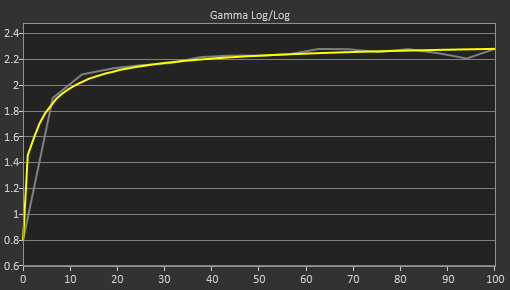

Post Gamma Curve Picture
Post Color Picture
Picture Mode
User Mode
User Mode
sRGB Gamut Area xy
101.8%
105.3%

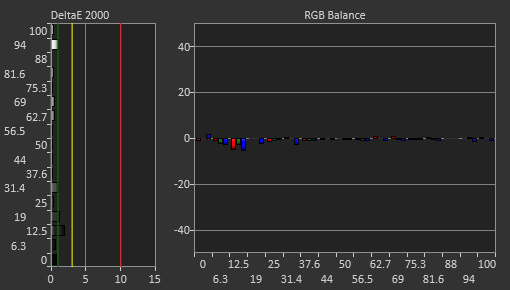

White Balance dE (Avg.)
0.51
0.65
Color Temperature (Avg.)
6,526 K
6,553 K
Gamma (Avg.)
2.18
2.21
Color dE (Avg.)
0.34
0.84
Contrast Setting
80
80
RGB Settings
96-99-100
100-100-98
Gamma Setting
2.2
2.2
Brightness Setting
37
28
Measured Brightness
99 cd/m²
101 cd/m²
SDR Color Gamut
9.8
9.7

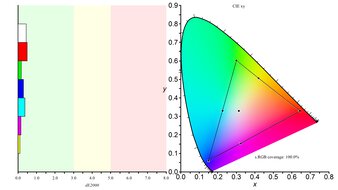

sRGB Color Gamut Picture
sRGB Coverage xy
100.0%
100.0%
sRGB Picture Mode
User Mode
User Mode
Adobe RGB Color Gamut Picture
Adobe RGB Coverage xy
94.8%
91.2%
Adobe RGB Picture Mode
User Mode
User Mode
HDR Color Gamut
9.5
9.1
Wide Color Gamut
Yes
Yes

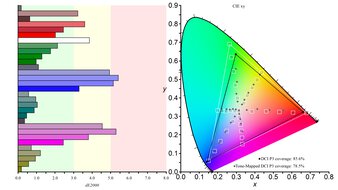

DCI-P3 Color Gamut Picture
DCI-P3 Coverage xy
98.9%
97.1%
DCI-P3 Picture Mode
Console HDR
Console HDR
Rec. 2020 Color Gamut Picture
Rec. 2020 Coverage xy
78.7%
70.8%
Rec. 2020 Picture Mode
Console HDR
Console HDR
HDR Color Volume
8.9
7.8

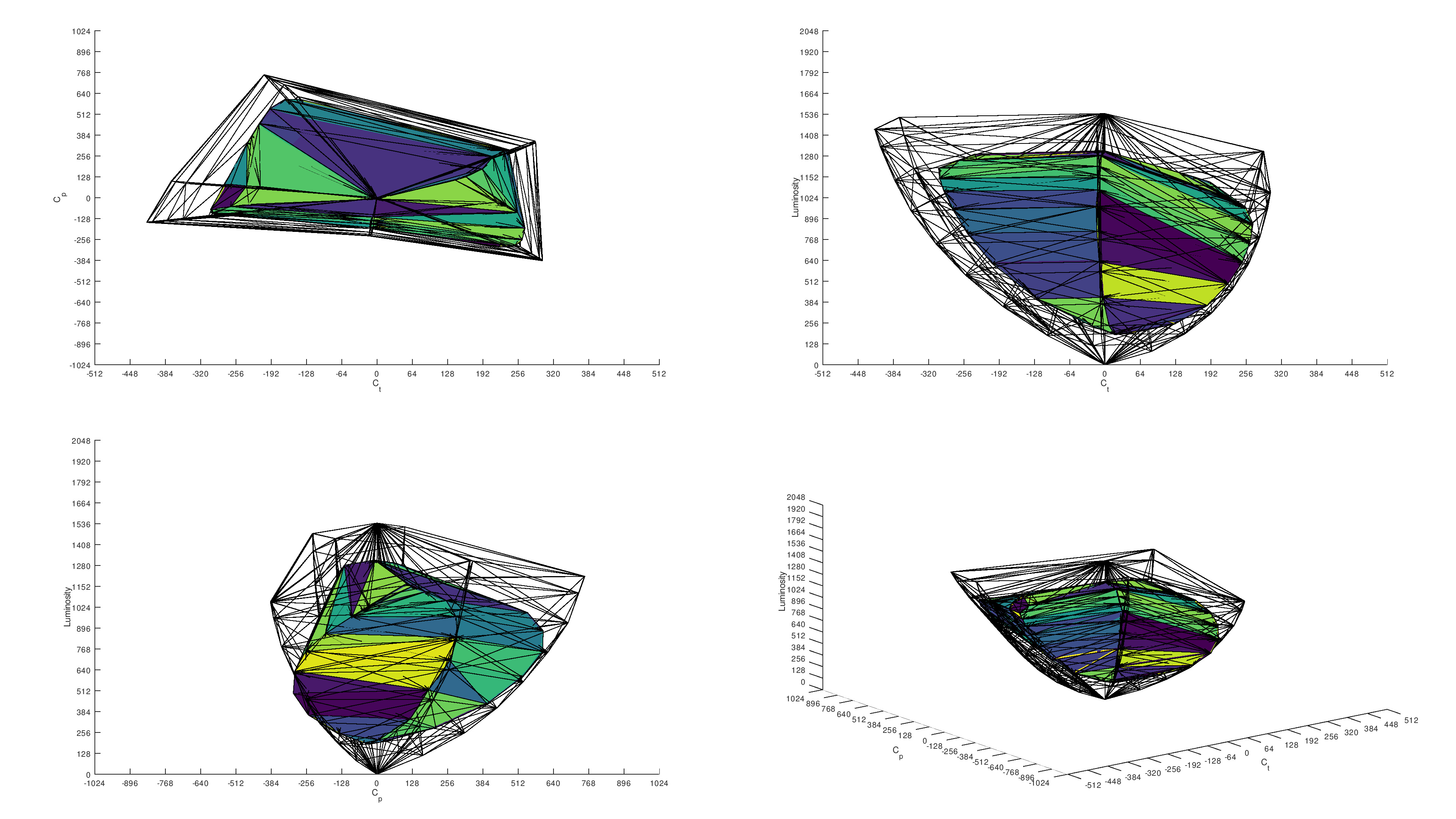

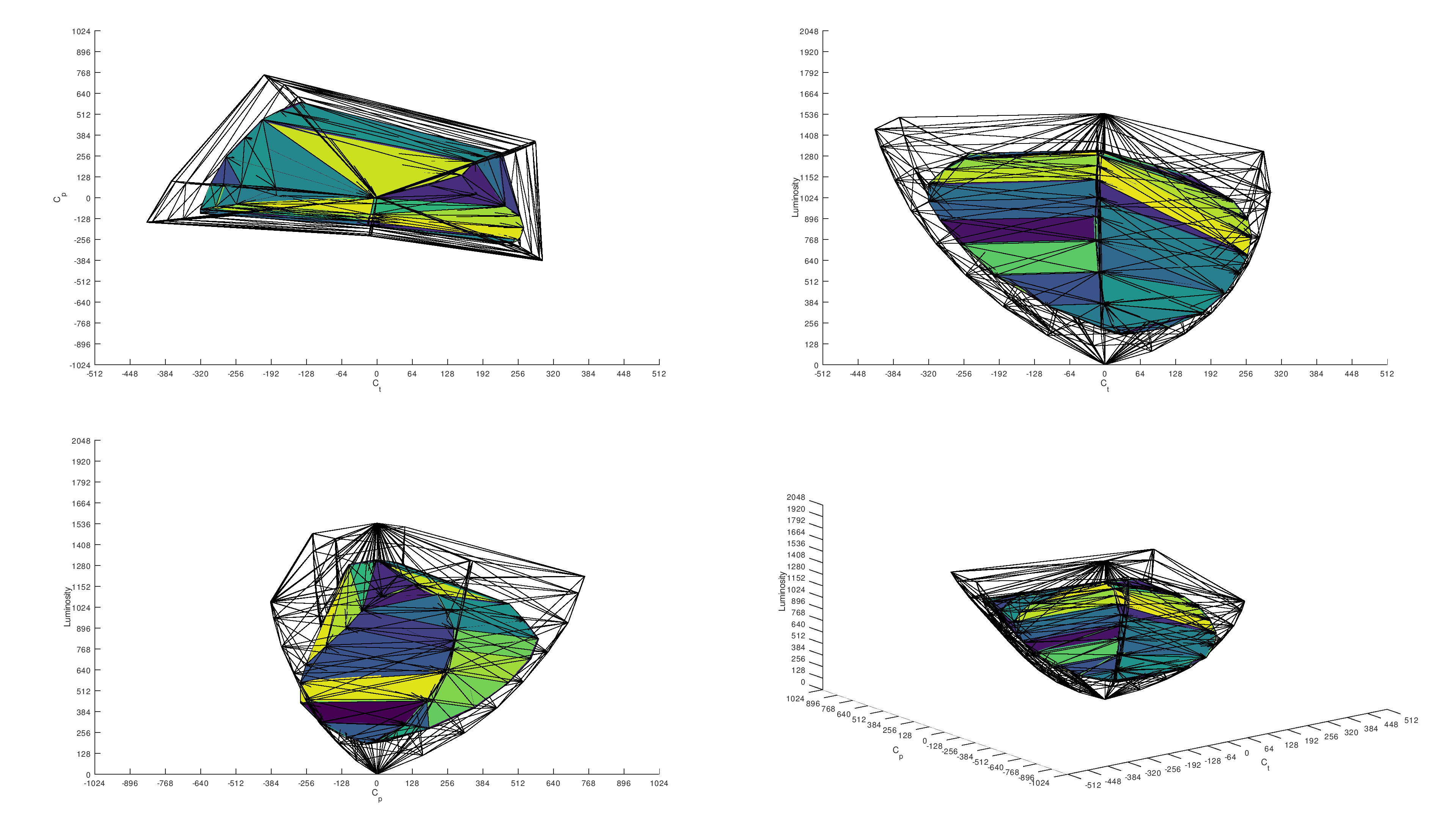

DCI-P3 Color Volume ITP Picture
1,000 cd/m² DCI-P3 Coverage ICtCp
92.4%
75.4%
DCI-P3 Picture Mode
Console HDR
Console HDR

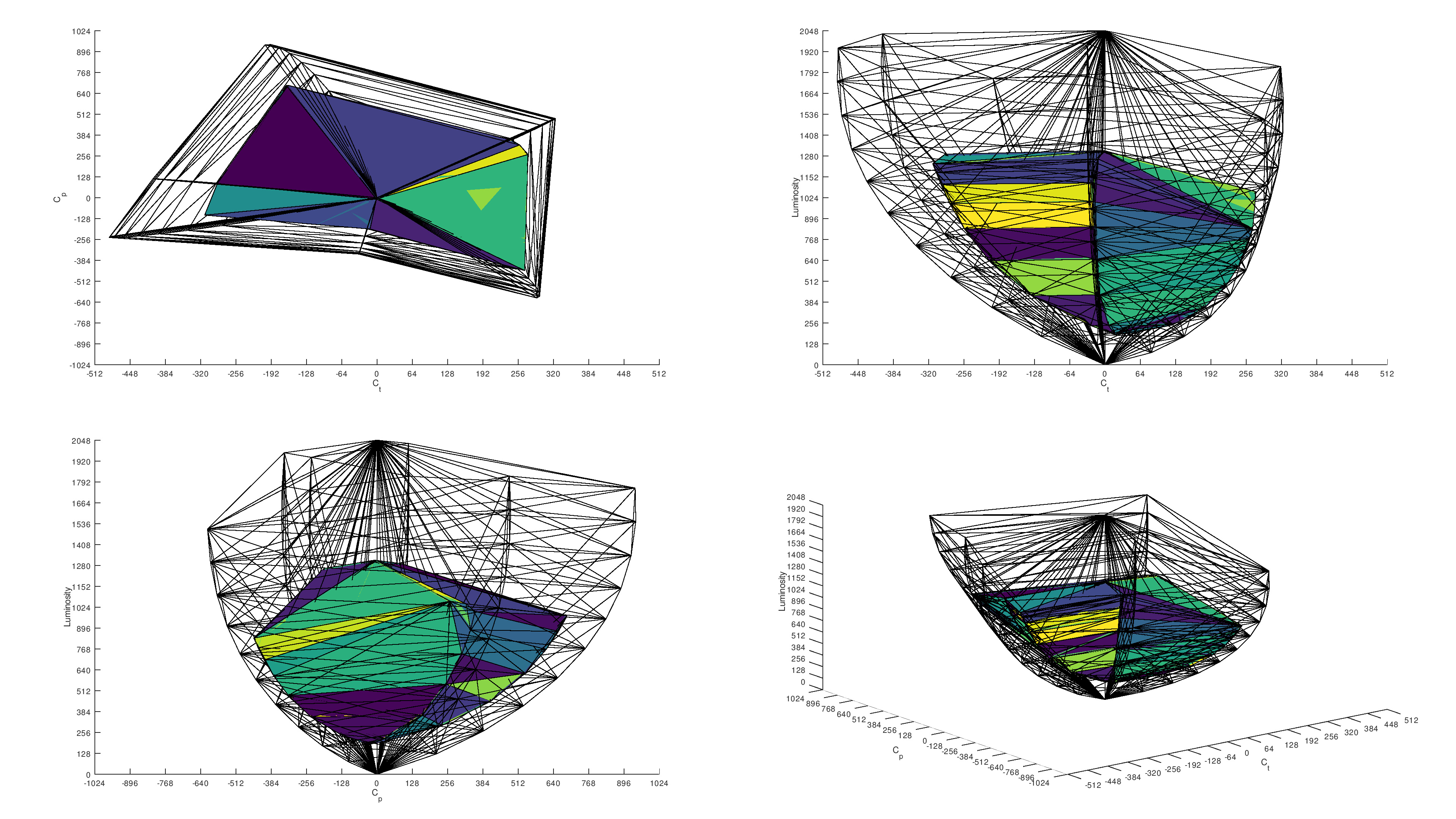

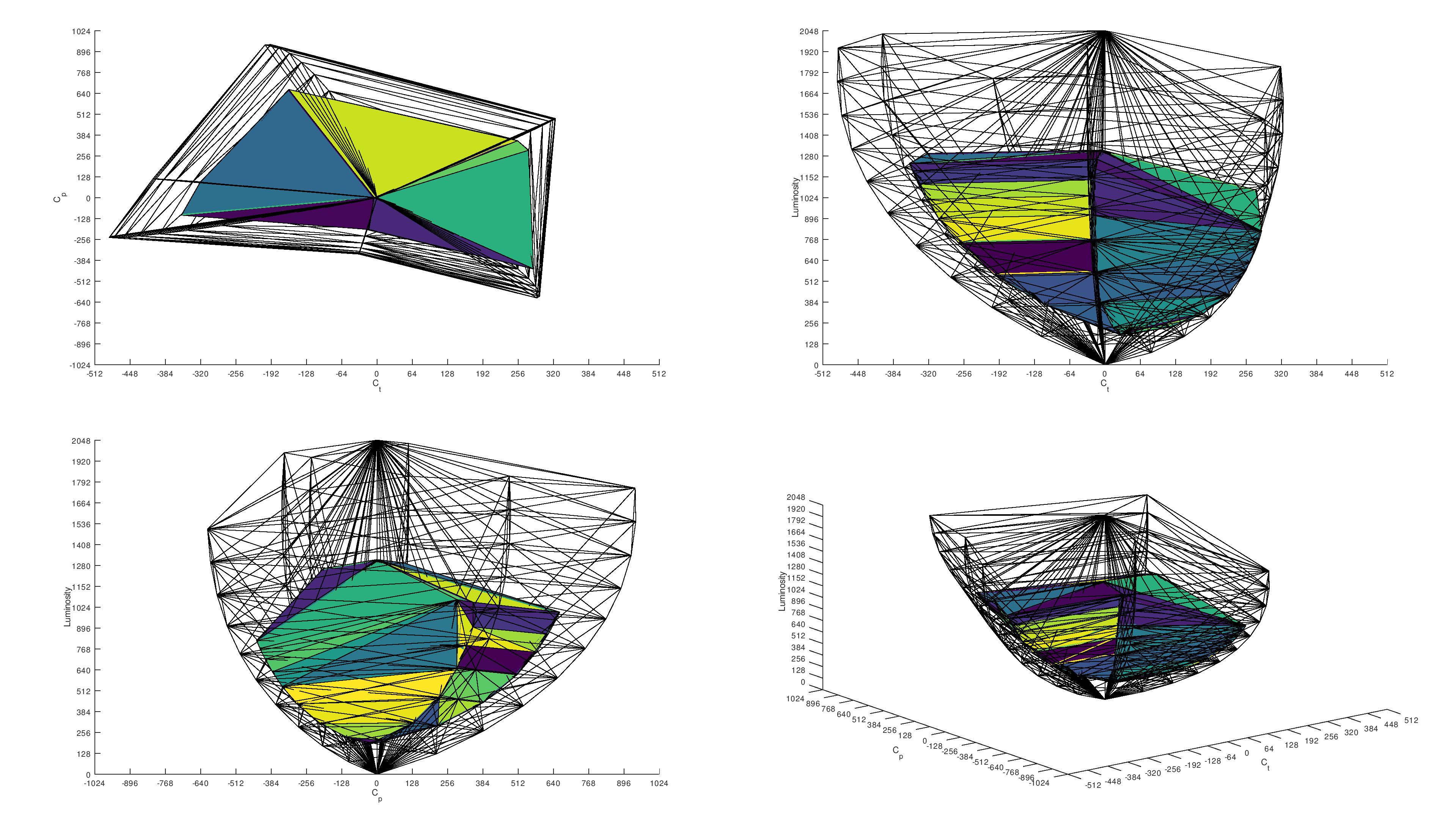

Rec. 2020 Color Volume ITP Picture
10,000 cd/m² Rec. 2020 Coverage ICtCp
47.0%
33.2%
Rec. 2020 Picture Mode
Console HDR
Console HDR
Text Clarity
8.5
9.0

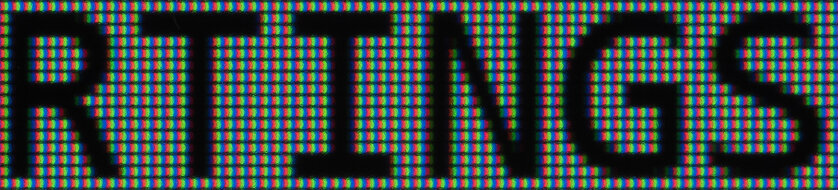

ClearType On

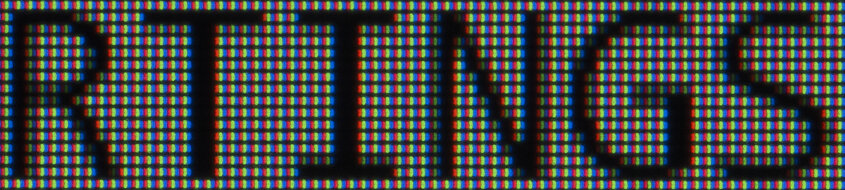

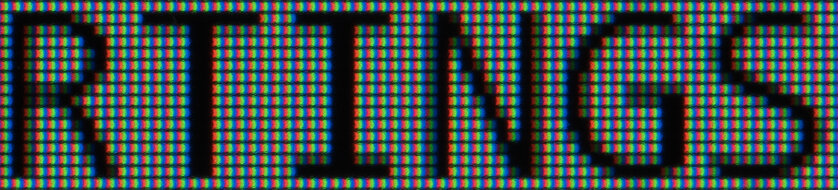

ClearType Off
Pixel Type
QD-OLED
OLED

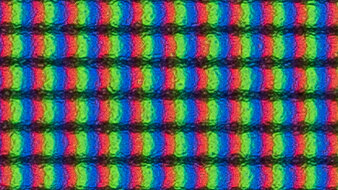

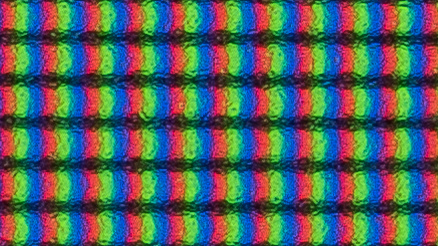

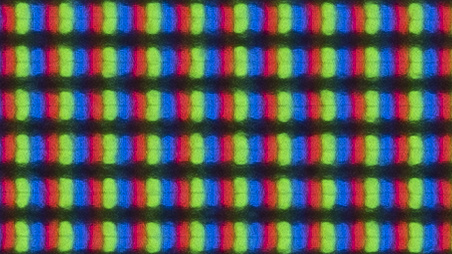

Pixels
Subpixel Layout
Triangular RGB
RGWB
Reflections
9.4
9.0
Average Room
Average Room Off Picture

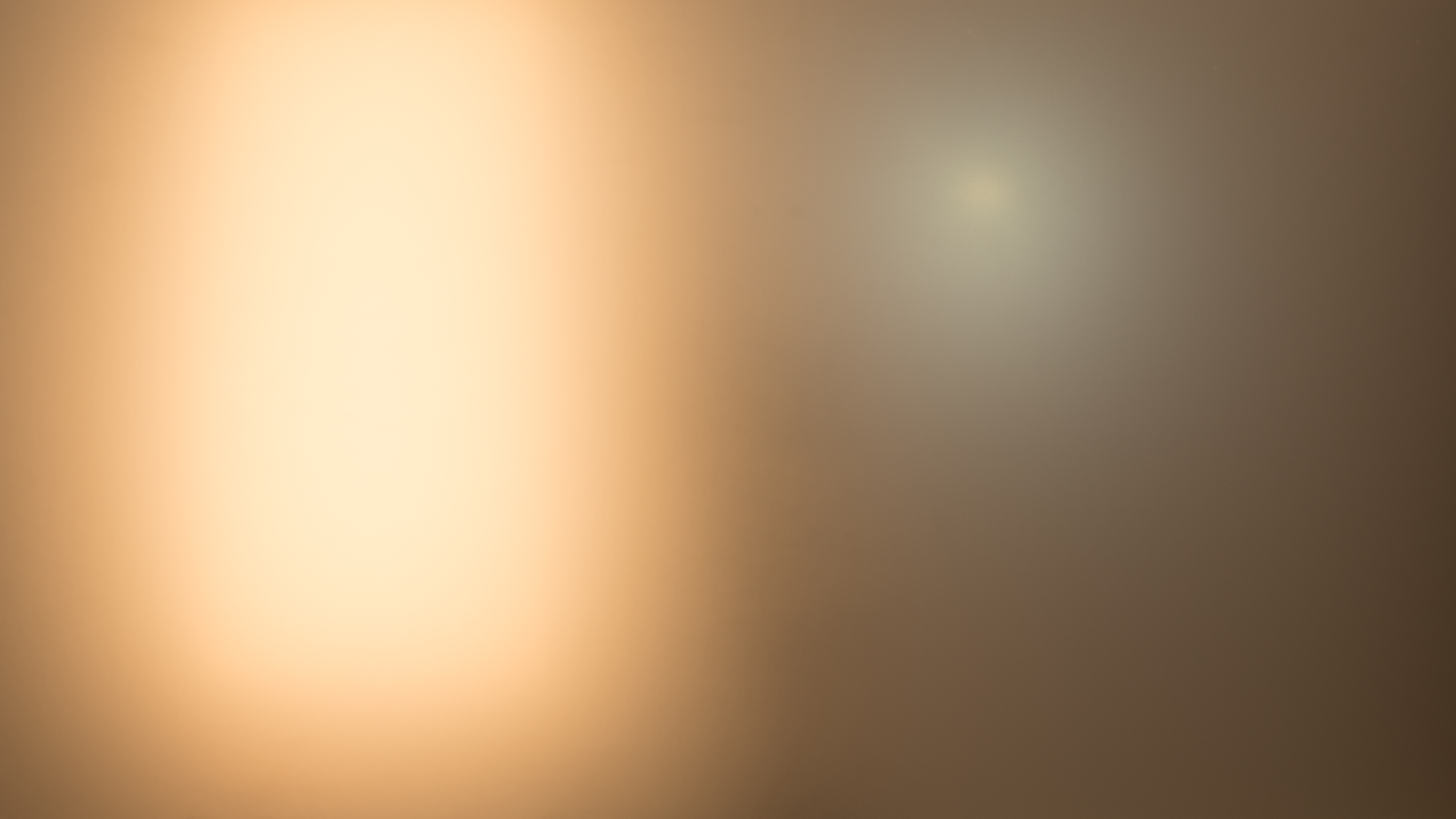

Bright Room Off Picture
Screen Finish
Glossy
Semi-Gloss

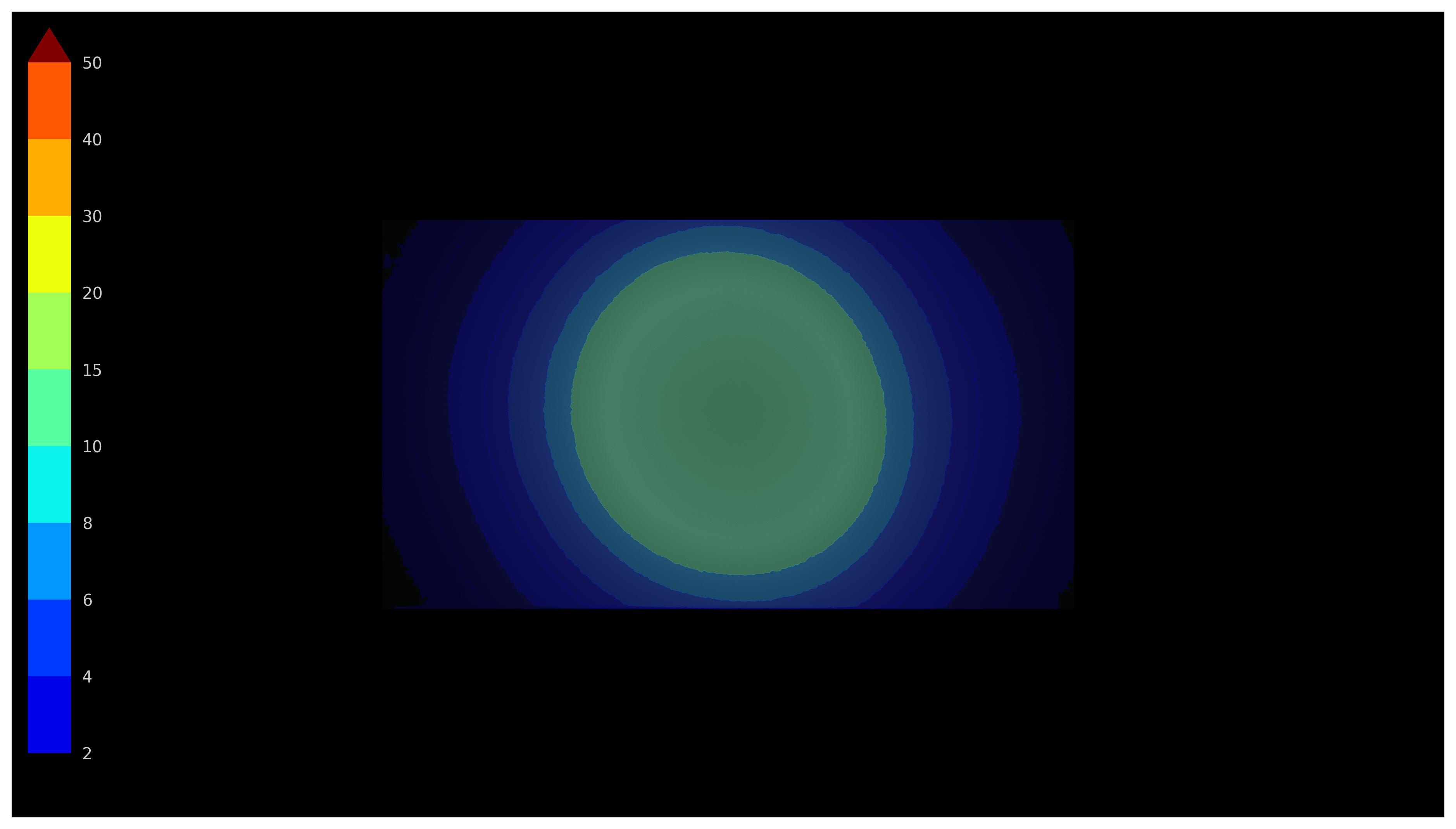

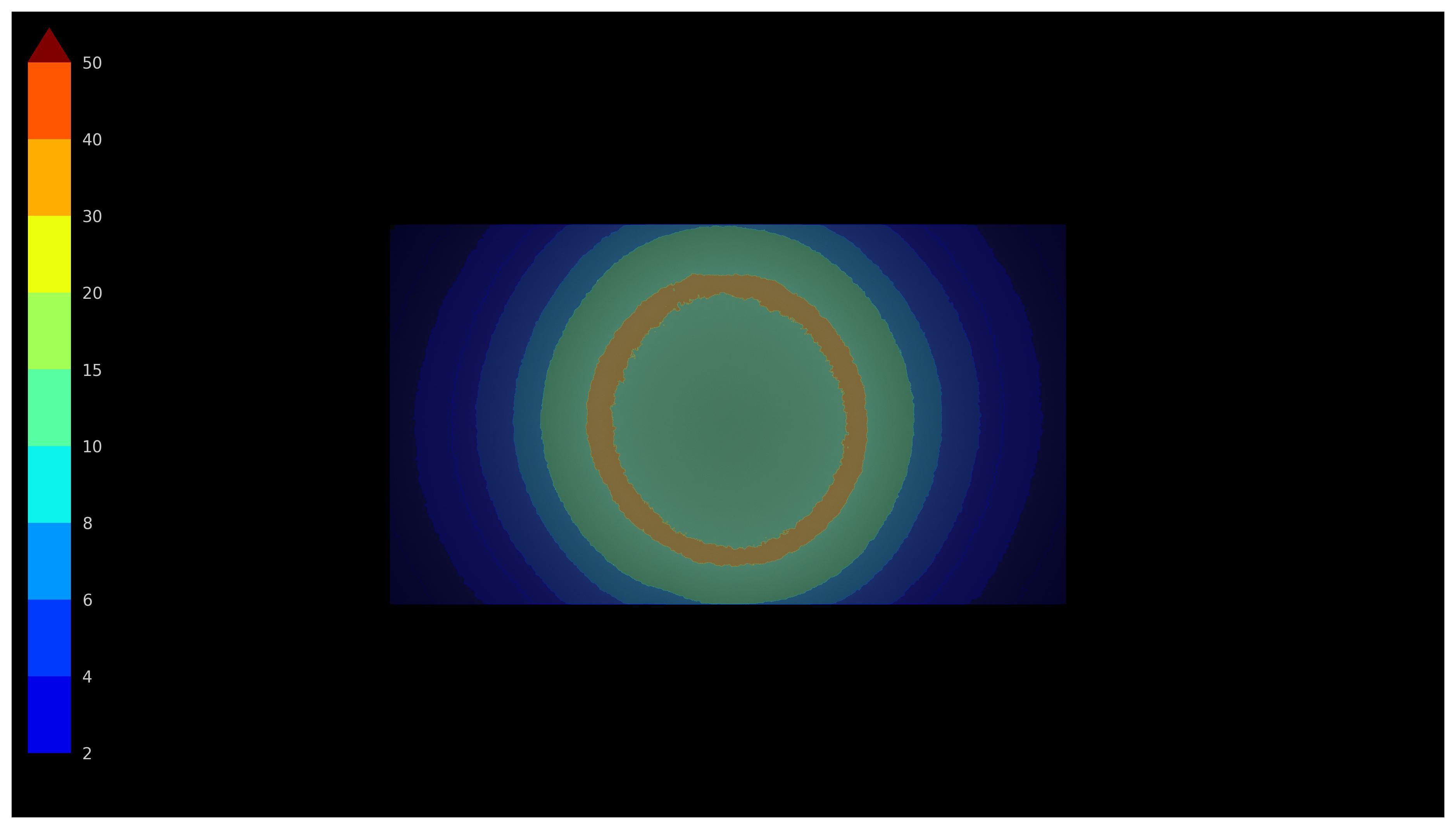

Total Reflections
1.3%
1.8%
Indirect Reflections
0.9%
0.9%

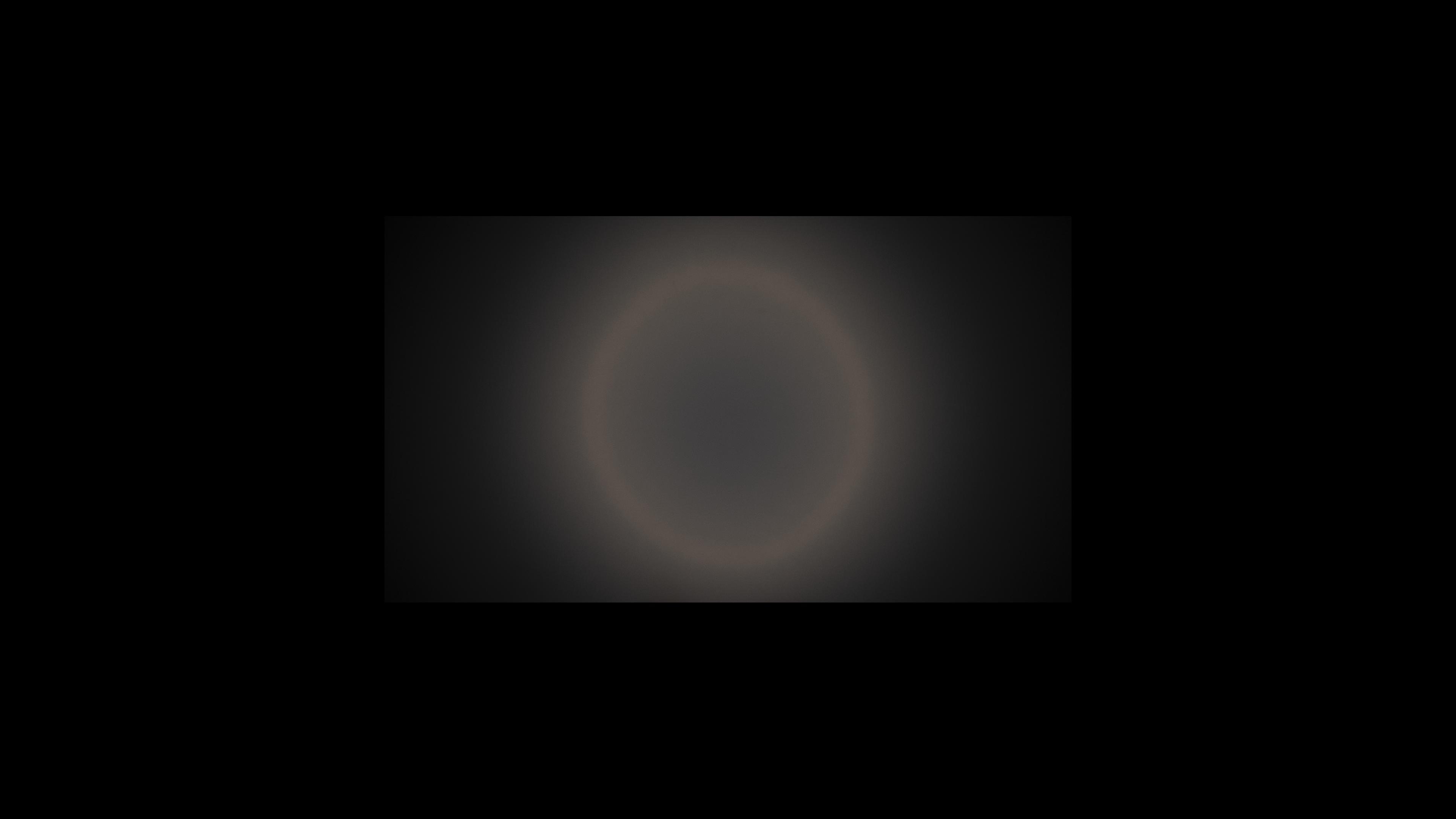

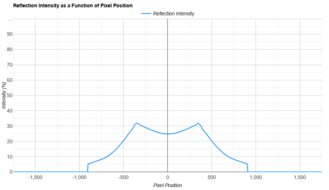

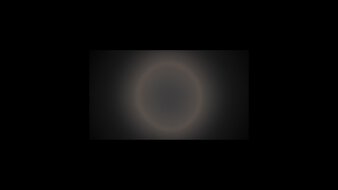

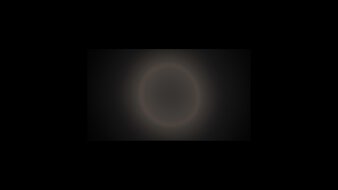

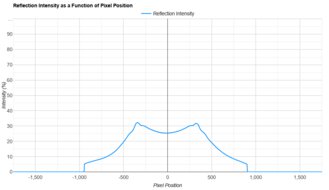

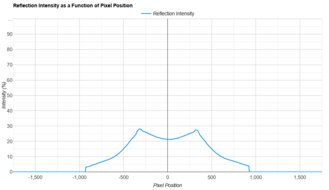

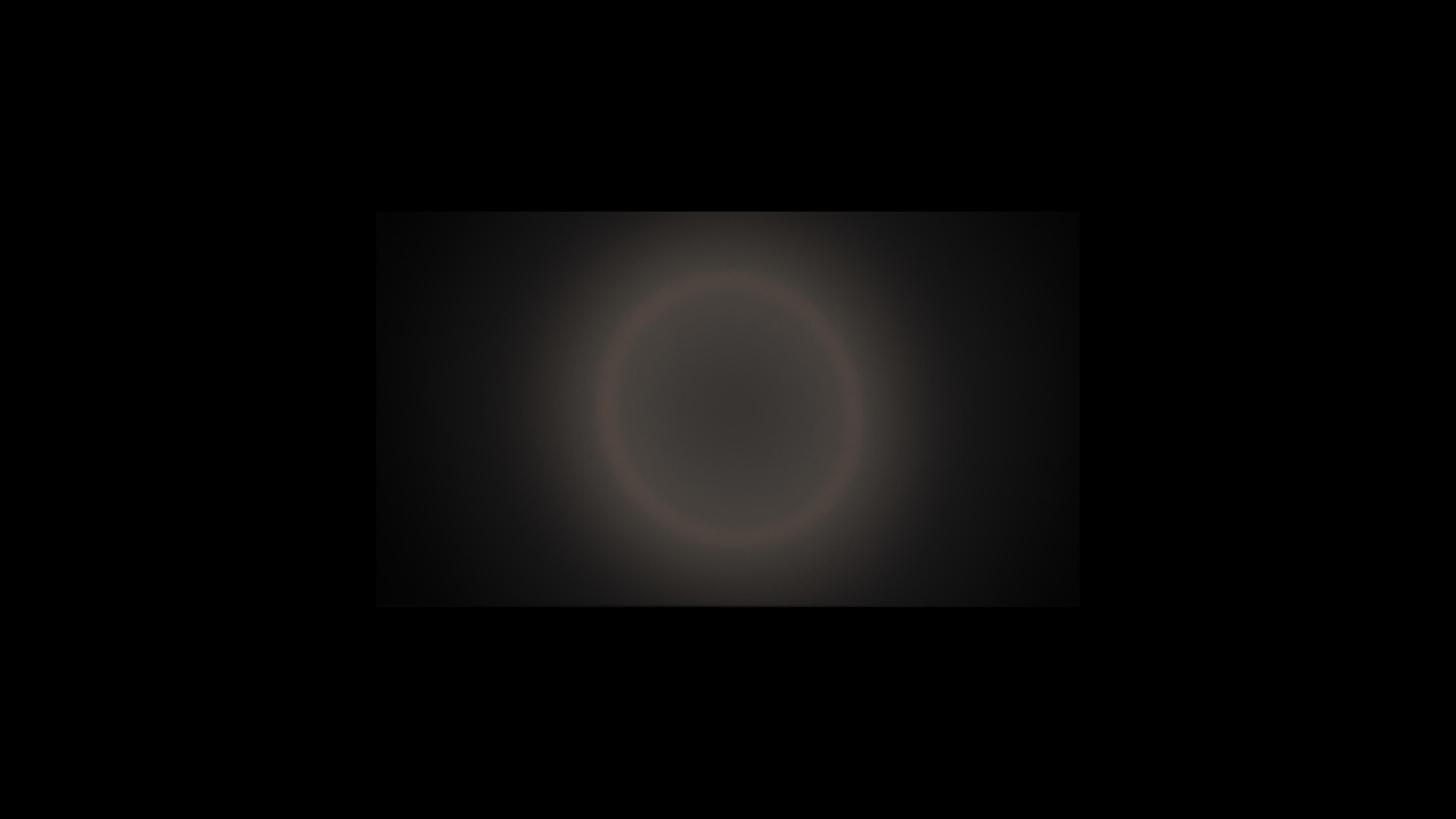

Calculated Direct Reflections
0.4%
1.0%
Gradient
9.8
9.6

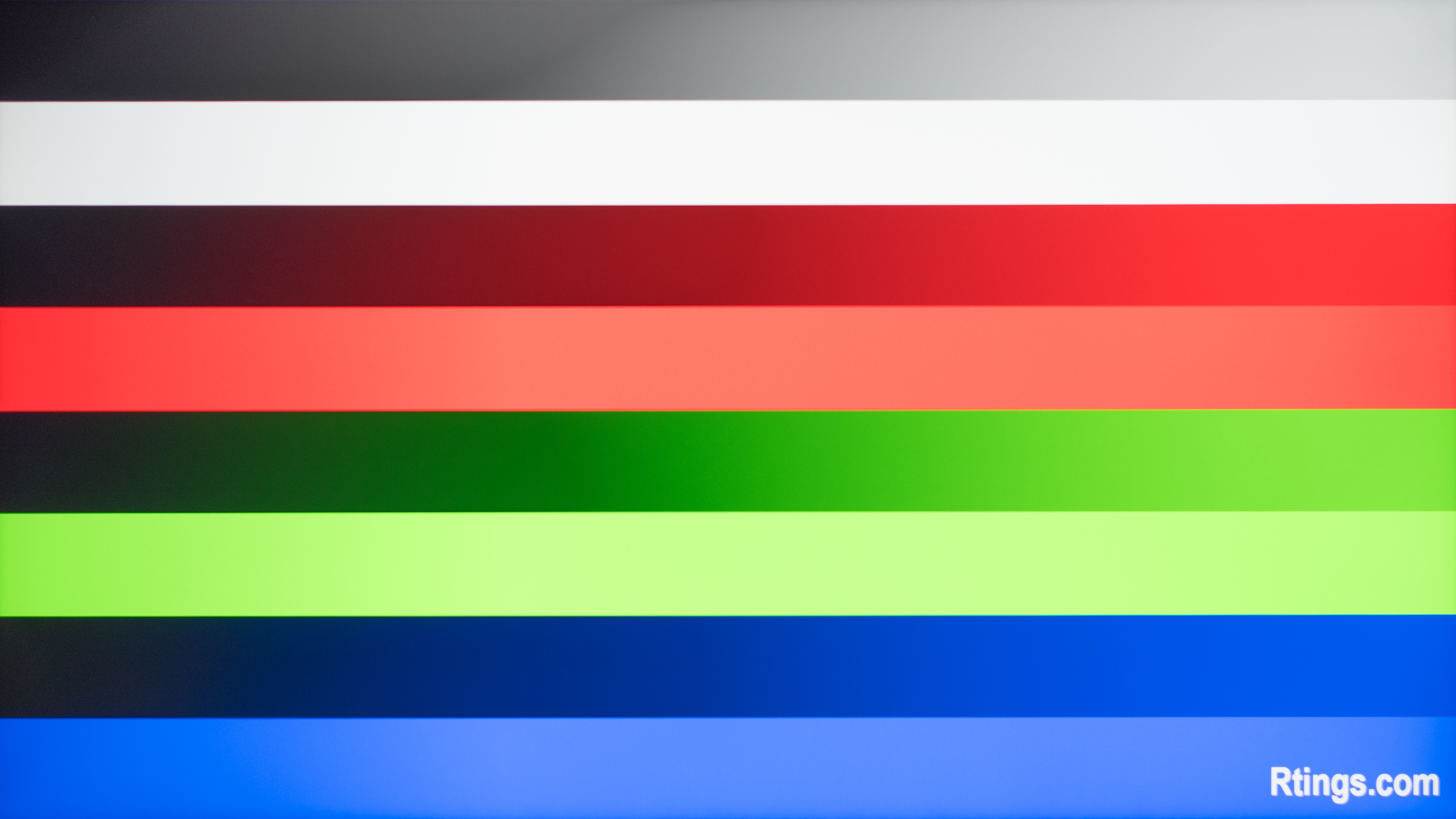

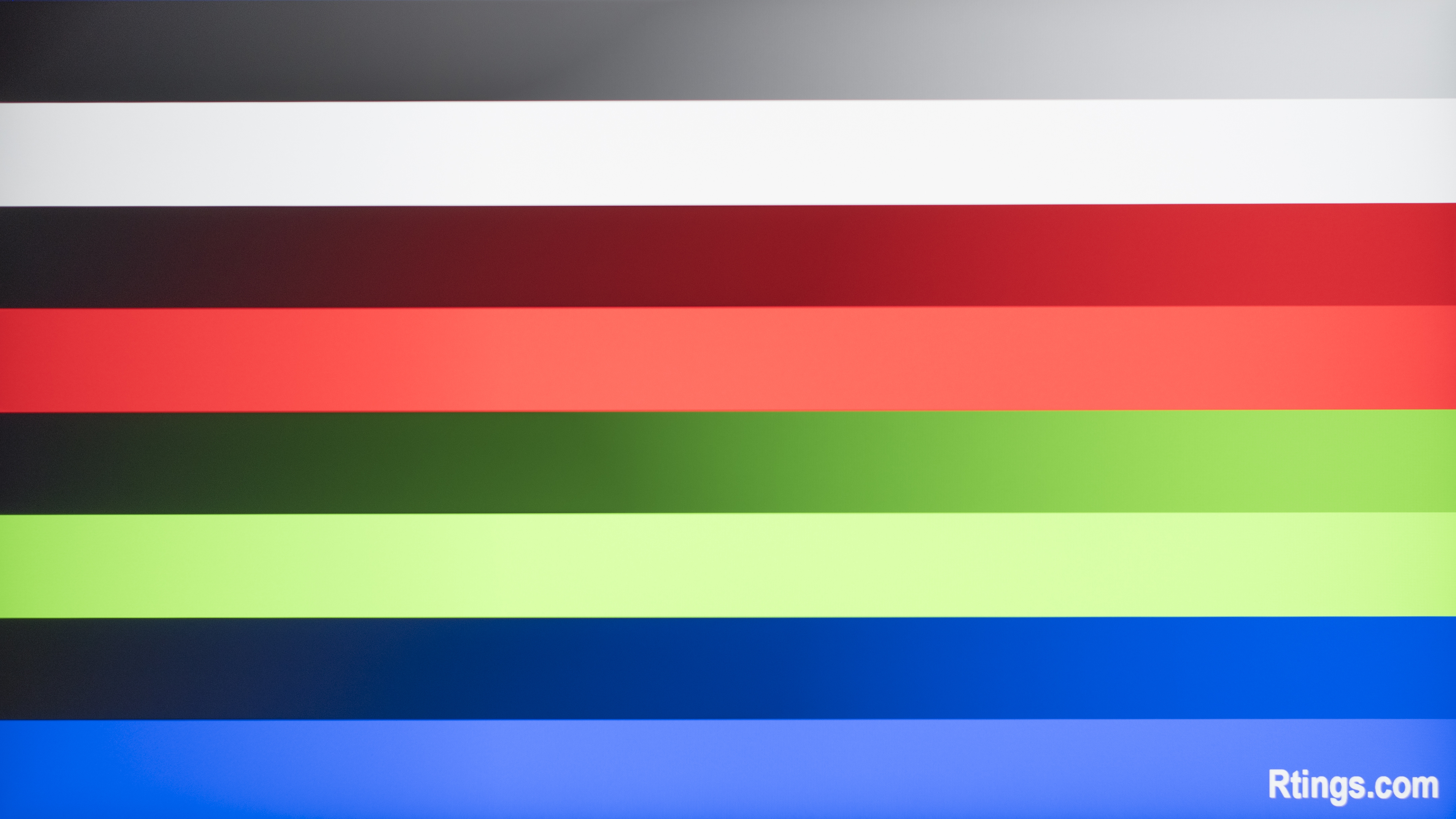

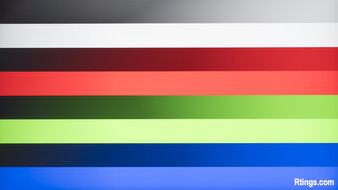

Gradient Picture
Color Depth
10 Bit
10 Bit
Motion
Refresh Rate
8.0
8.8
Native Refresh Rate
240 Hz
240 Hz
Max Refresh Rate
240 Hz
480 Hz
Max Refresh Rate Over DP
240 Hz
480 Hz
Max Refresh Rate Over HDMI
240 Hz
480 Hz
Max Refresh Rate Over DP @ 10-bit
240 Hz
480 Hz
Max Refresh Rate Over HDMI @ 10-Bit
240 Hz
480 Hz
Variable Refresh Rate (VRR)
Variable Refresh Rate
Yes
Yes
FreeSync
Yes
Yes
G-SYNC
Compatible (NVIDIA Certified)
Compatible (NVIDIA Certified)
VRR Maximum
240 Hz
480 Hz
VRR Minimum
< 20 Hz
< 20 Hz
VRR Supported Connectors
DisplayPort, HDMI
DisplayPort, HDMI
VRR Motion Performance
9.9
9.8

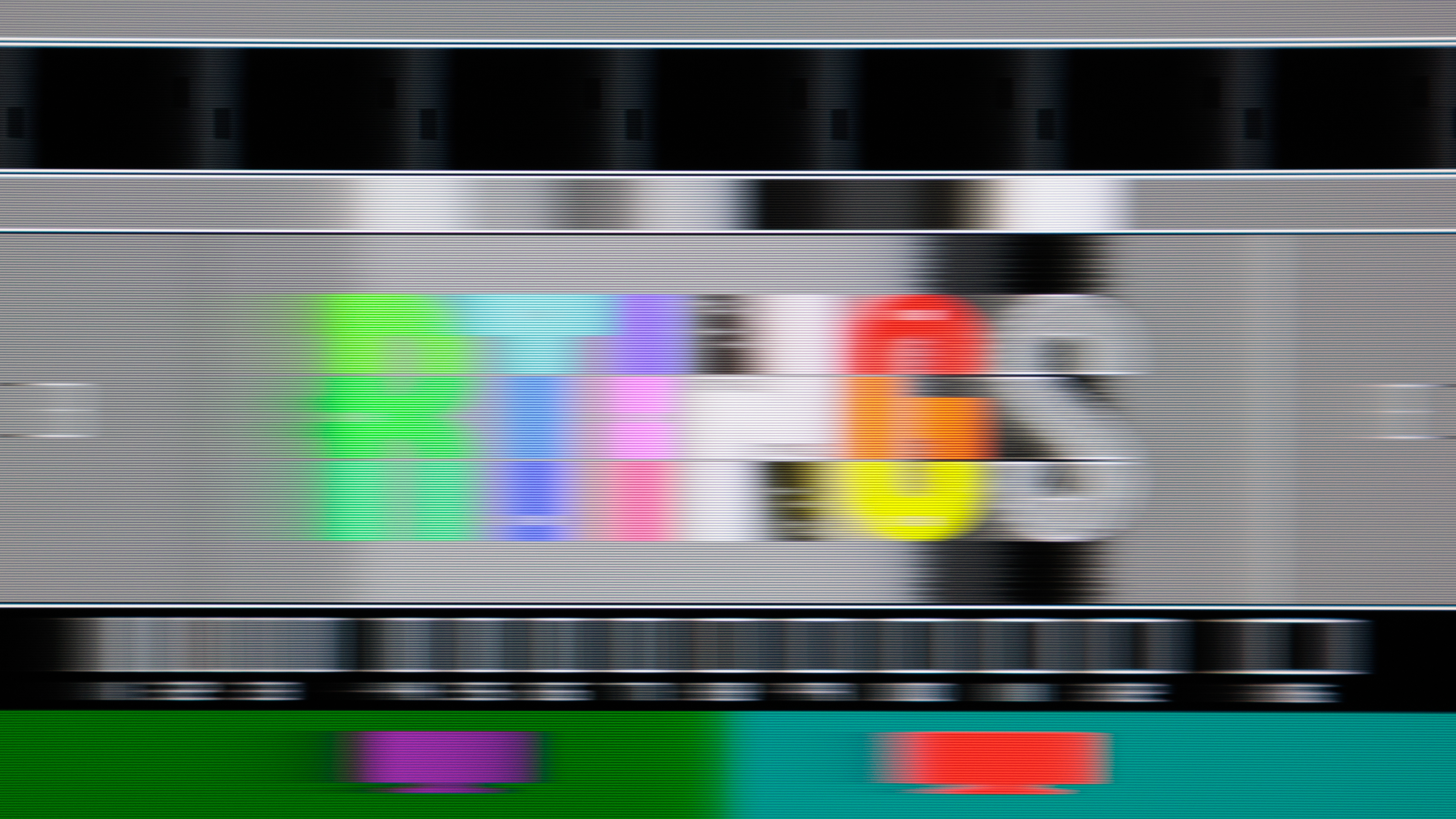

Pursuit Photo VRR

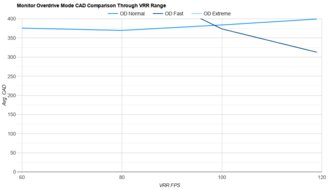

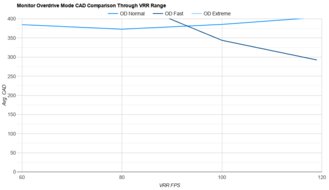

OD Mode CAD Comparison
Recommended VRR OD Setting
No OD Mode
No OD Mode
Variable Overdrive Advertised
No
No
Avg. CAD
13
15
Best CAD
13
15
Worst CAD
13
15
Refresh Rate Compliance
9.8
9.7
Fast GTG Sequence

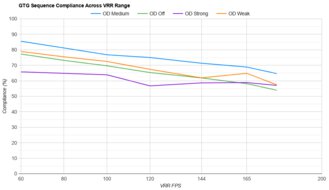

VRR Compliance
Compliance @ Max Hz
94%
91%
Compliance @ 120 FPS
96%
94%
Compliance @ 60 FPS
97%
96%
CAD @ Max Refresh Rate
9.9
9.9

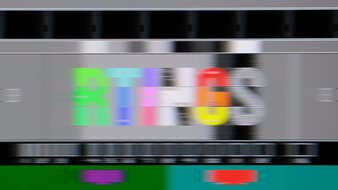

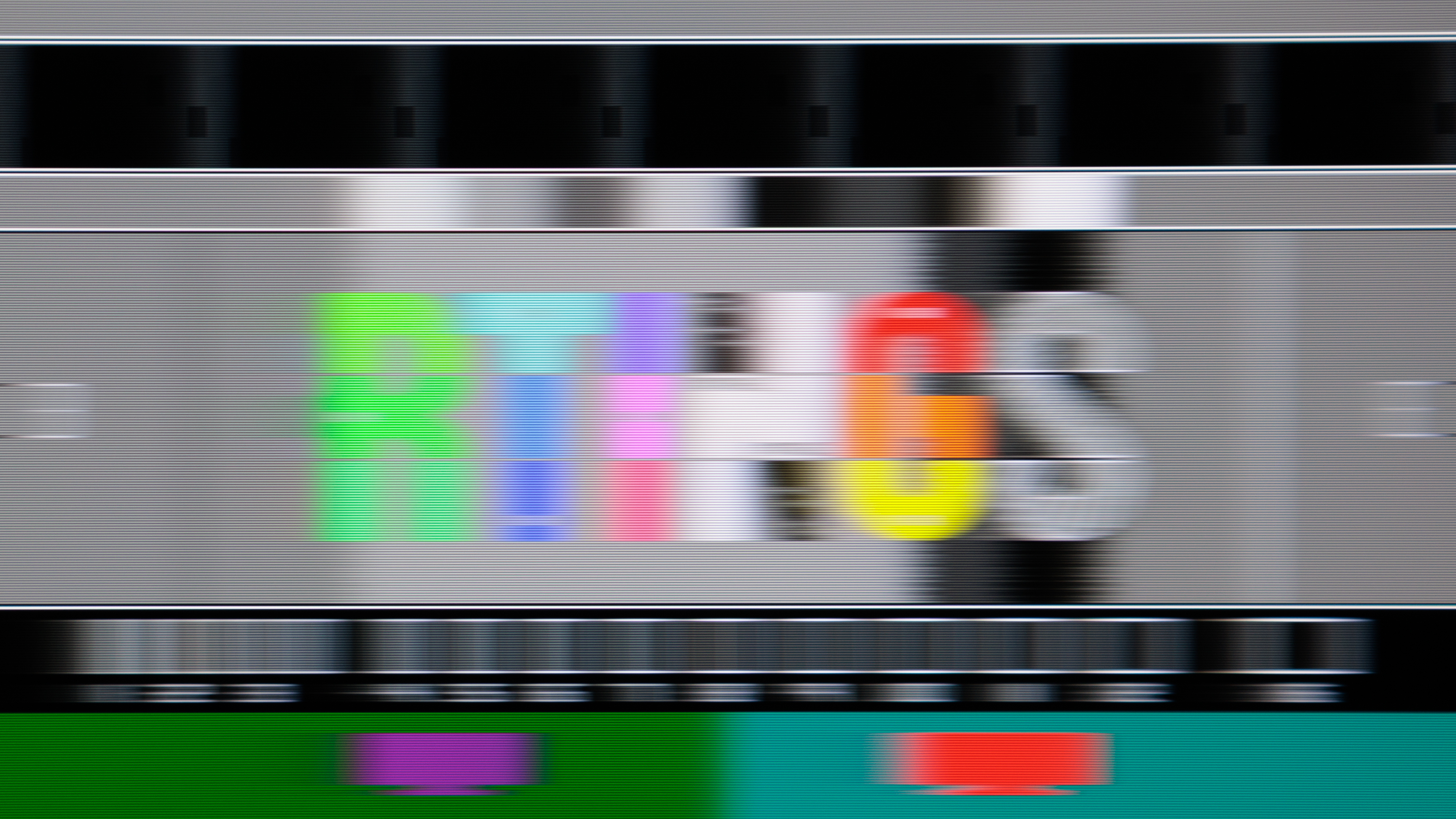

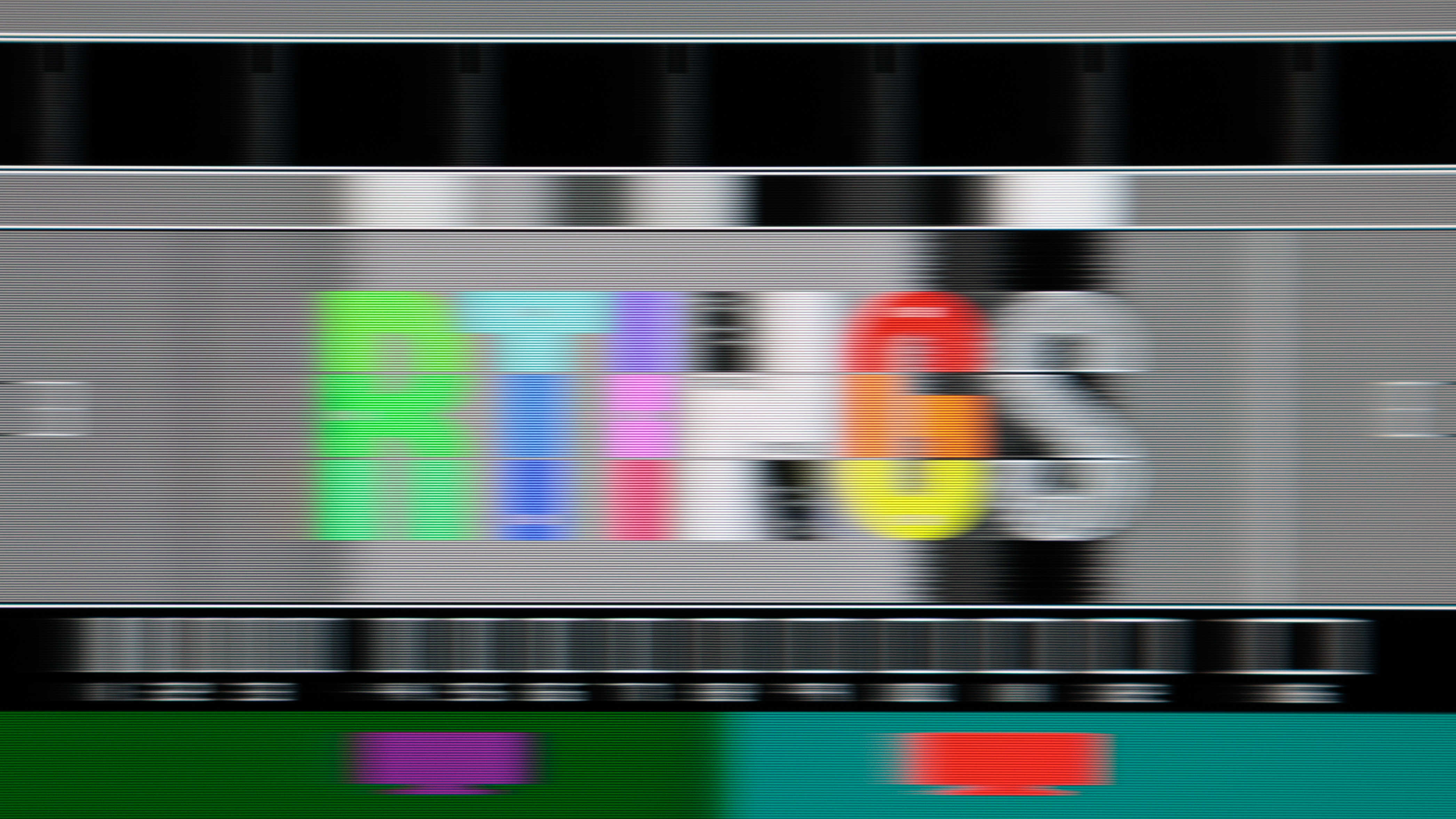

Pursuit Photo At Max Refresh
CAD Heatmap At Max Refresh
OD Transition Max Refresh Rate
OD noodmode
0 to 31
OD noodmode
0 to 31
Recommended Overdrive Setting
No OD Mode
No OD Mode
Avg. CAD
13
15
Best 10% CAD
7
8
Worst 10% CAD
21
22
Response Time @ Max Refresh Rate
First Response Time
0.3 ms
0.3 ms
Total Response Time
0.3 ms
0.3 ms
Recommended Overdrive Setting
No OD Mode
No OD Mode
RGB Overshoot
0 RGB
0 RGB
Worst 10% RGB Overshoot
0 RGB
0 RGB
Worst 10% First Response Time
0.7 ms
0.5 ms
Worst 10% Total Response Time
0.7 ms
0.5 ms

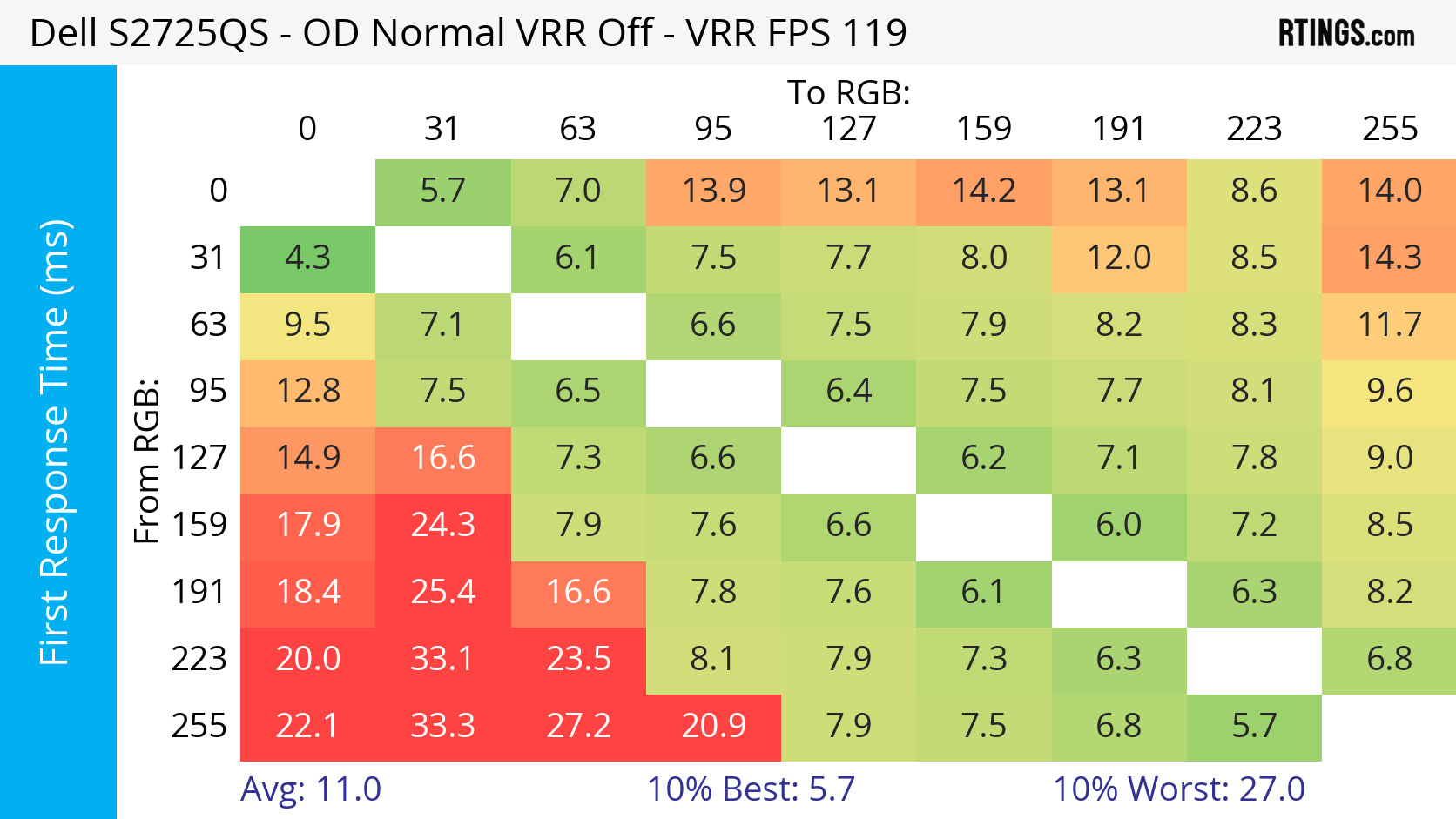

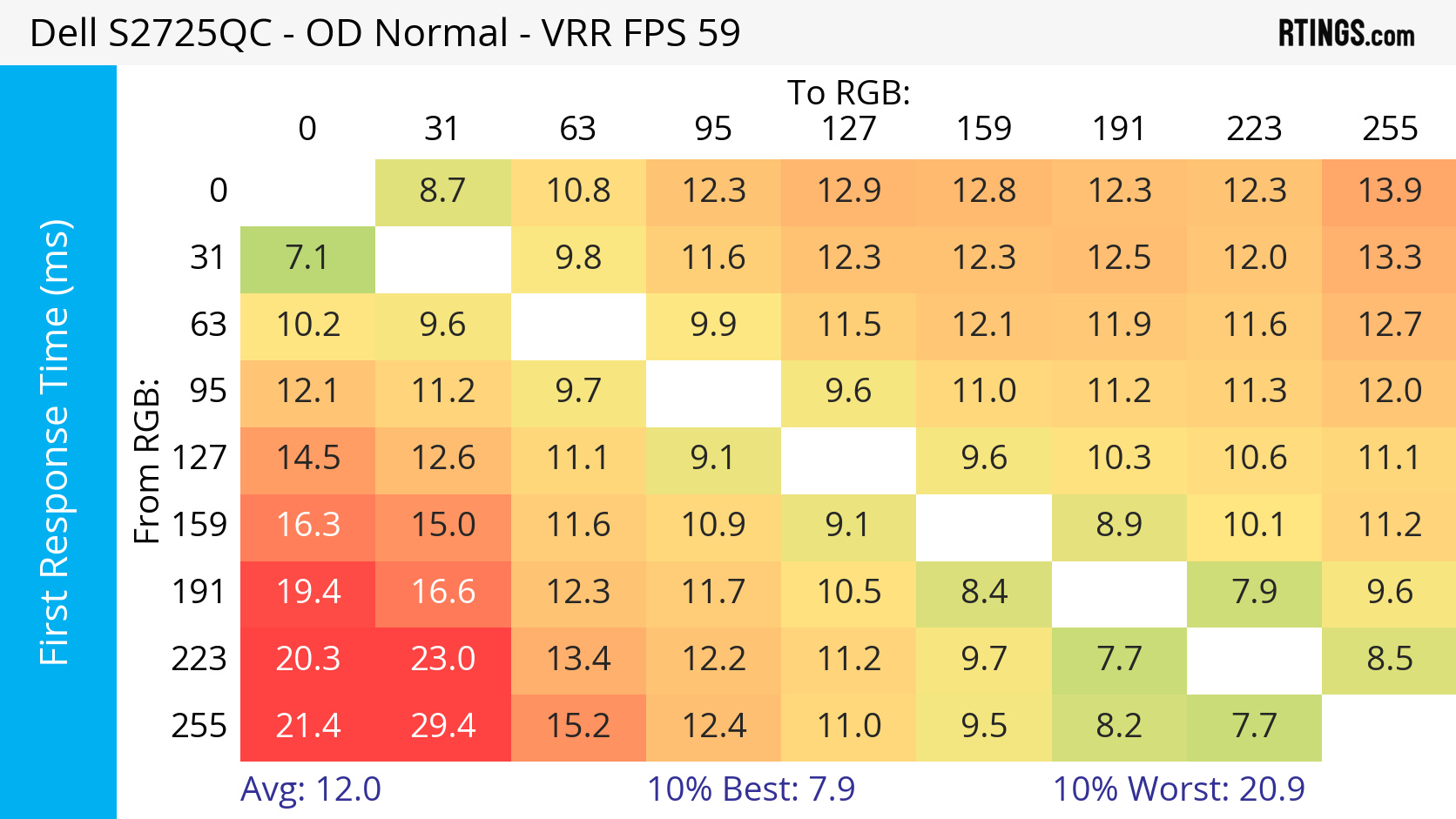

Heatmap First Response

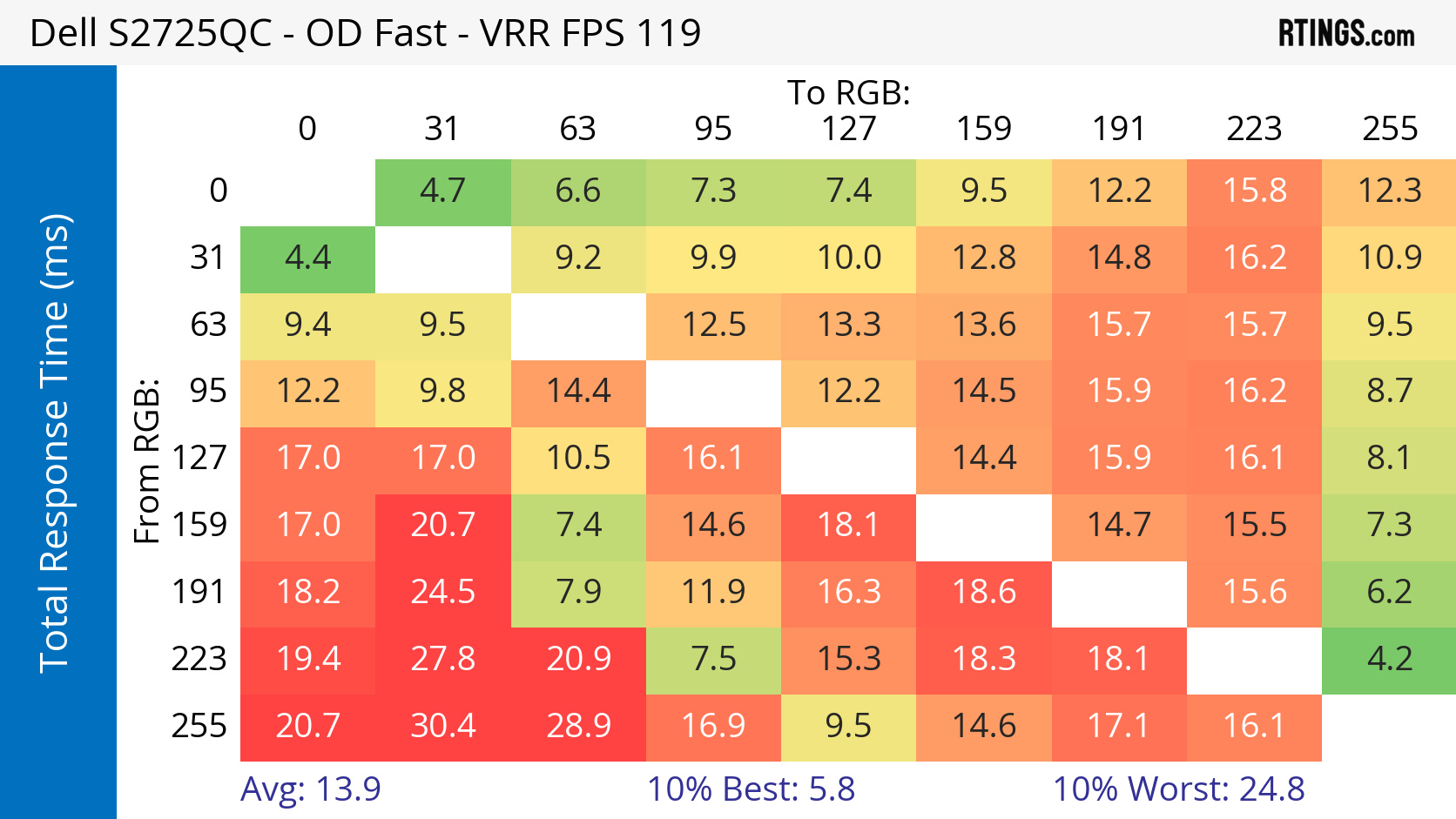

Heatmap Total Response

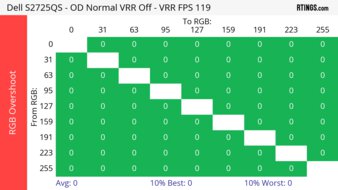

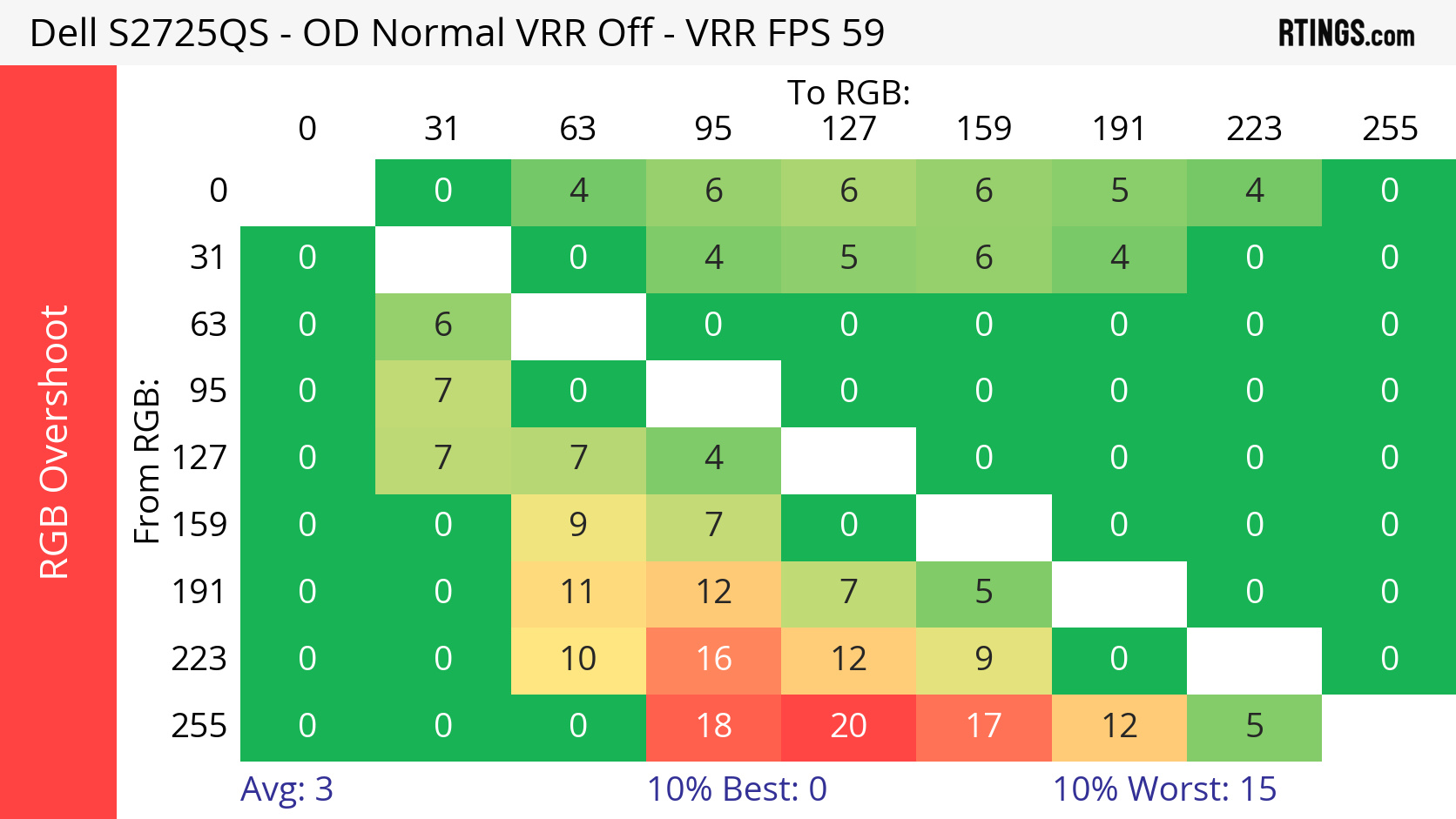

Heatmap RGB Overshoot
CAD @ 120Hz
9.9
9.9
Pursuit Photo 120Hz

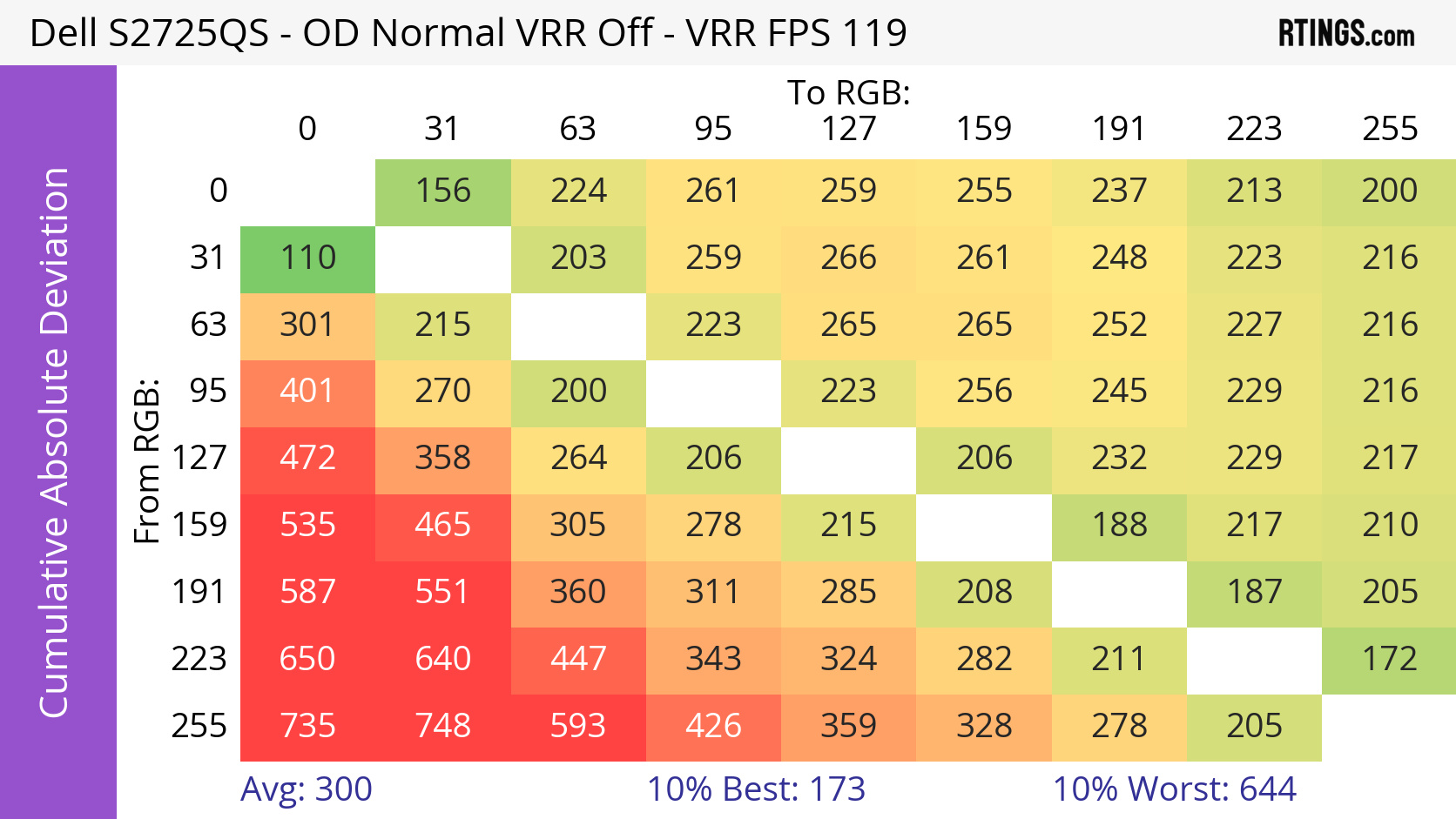

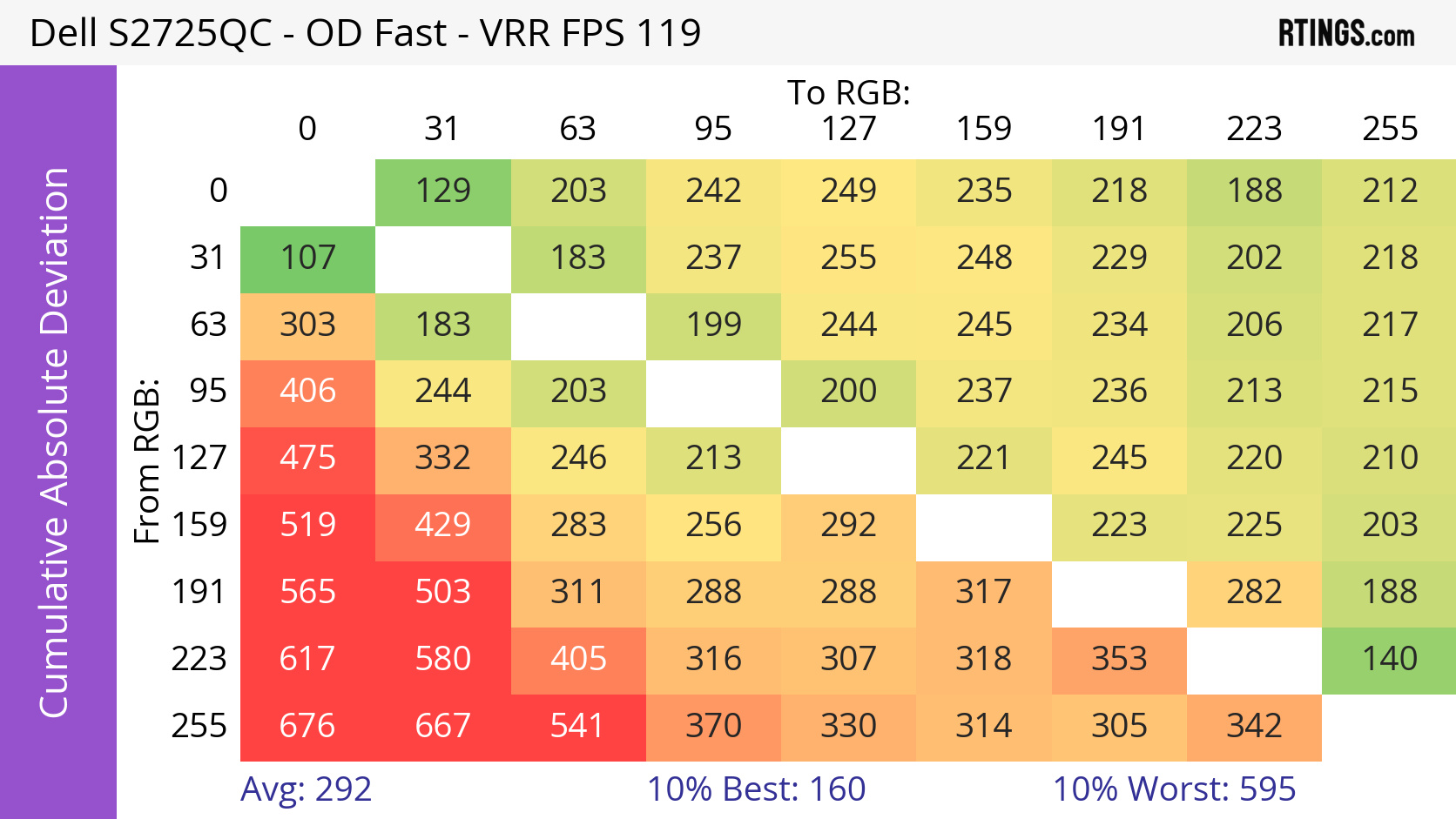

CAD Heatmap 120Hz

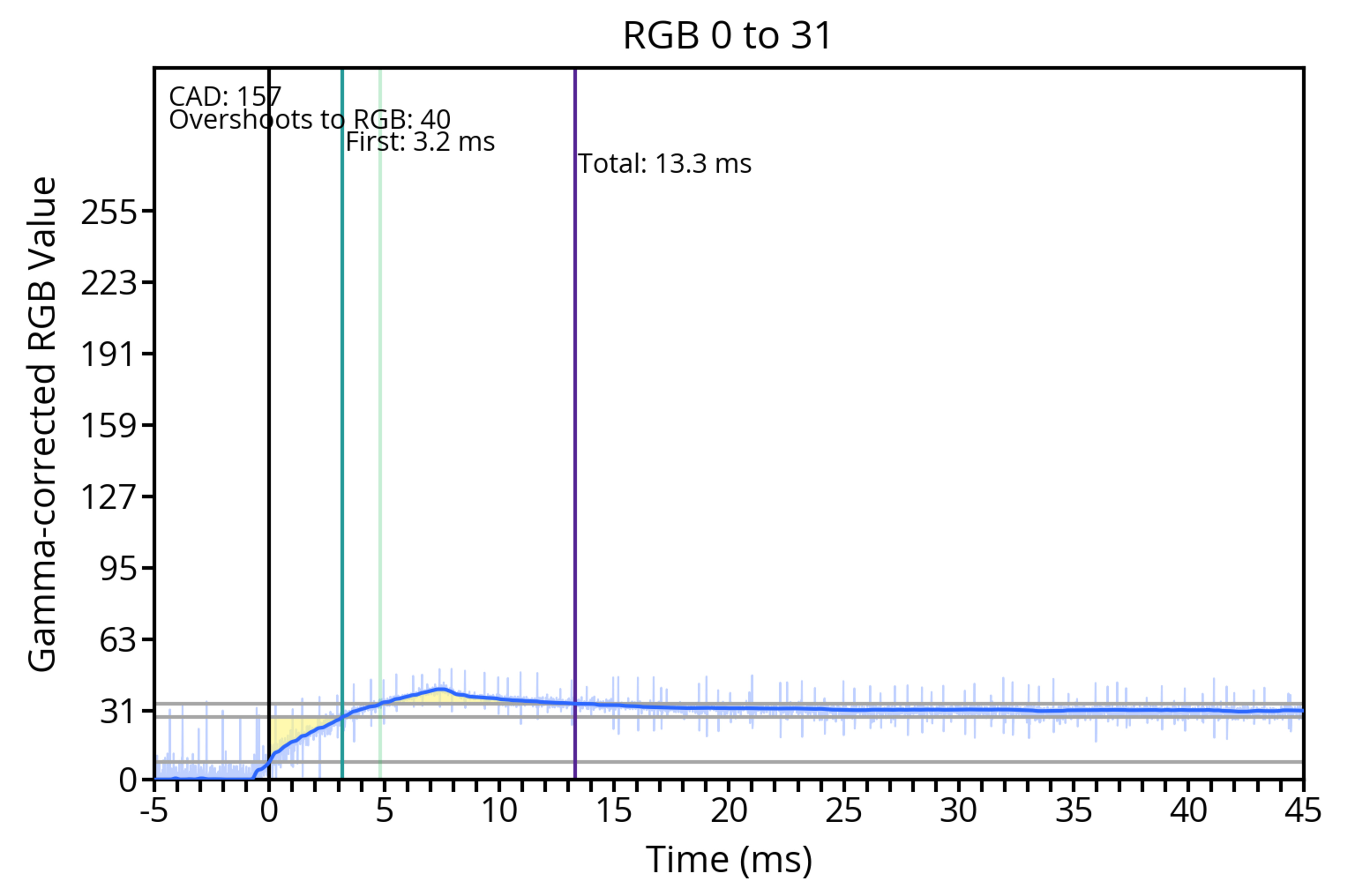

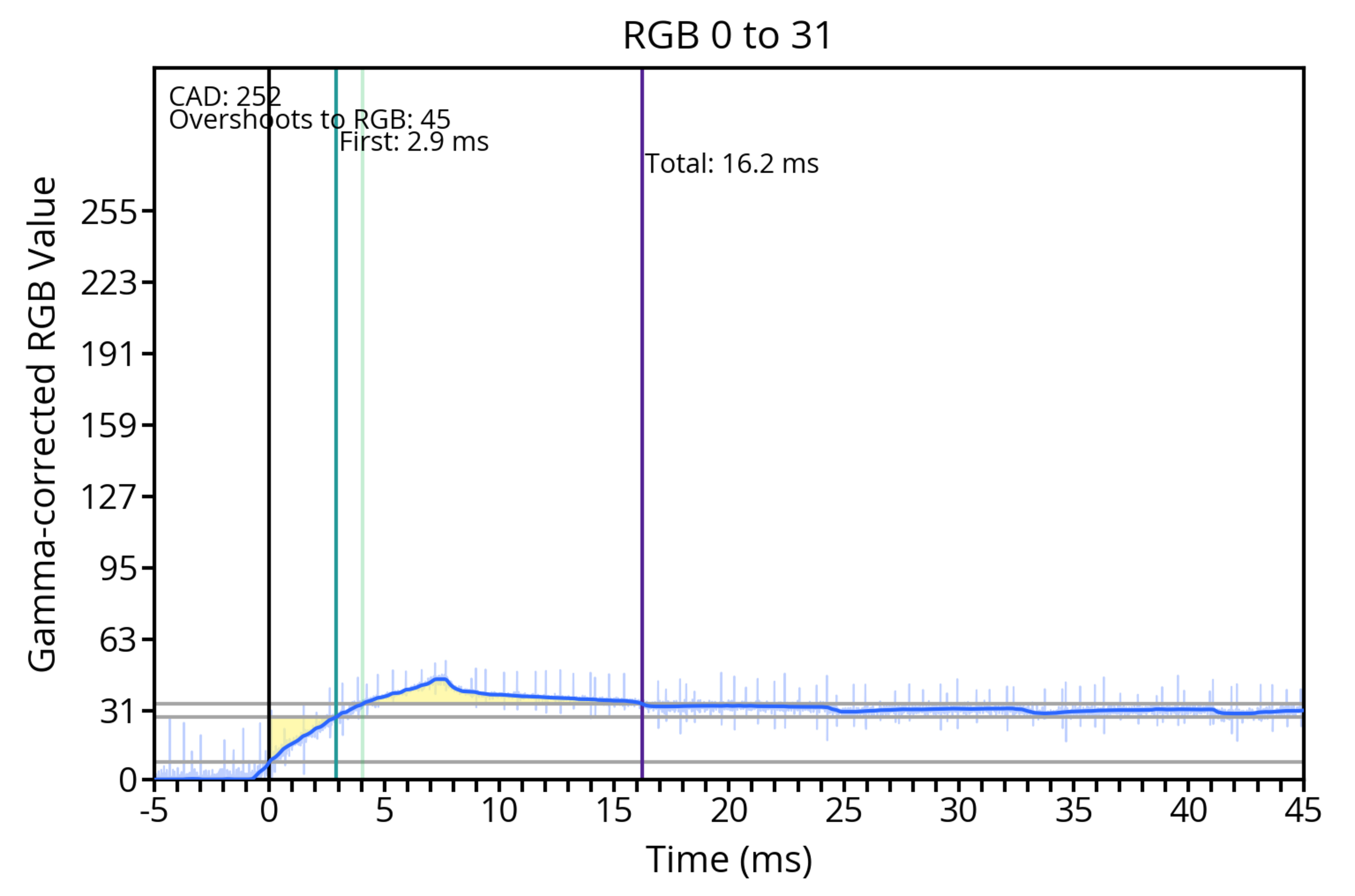

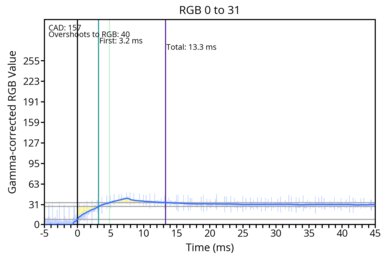

OD Transition 120Hz
OD noodmode
0 to 31
OD noodmode
0 to 31
Recommended Overdrive Setting
No OD Mode
No OD Mode
Avg. CAD
13
15
Best 10% CAD
6
8
Worst 10% CAD
19
21
Response Time @ 120Hz
Worst 10% First Response Time
0.5 ms
0.4 ms
RGB Overshoot
0 RGB
0 RGB
Total Response Time
0.3 ms
0.3 ms
First Response Time
0.3 ms
0.3 ms
Recommended Overdrive Setting
No OD Mode
No OD Mode
Worst 10% Total Response Time
0.5 ms
0.7 ms
Worst 10% RGB Overshoot
0 RGB
1 RGB

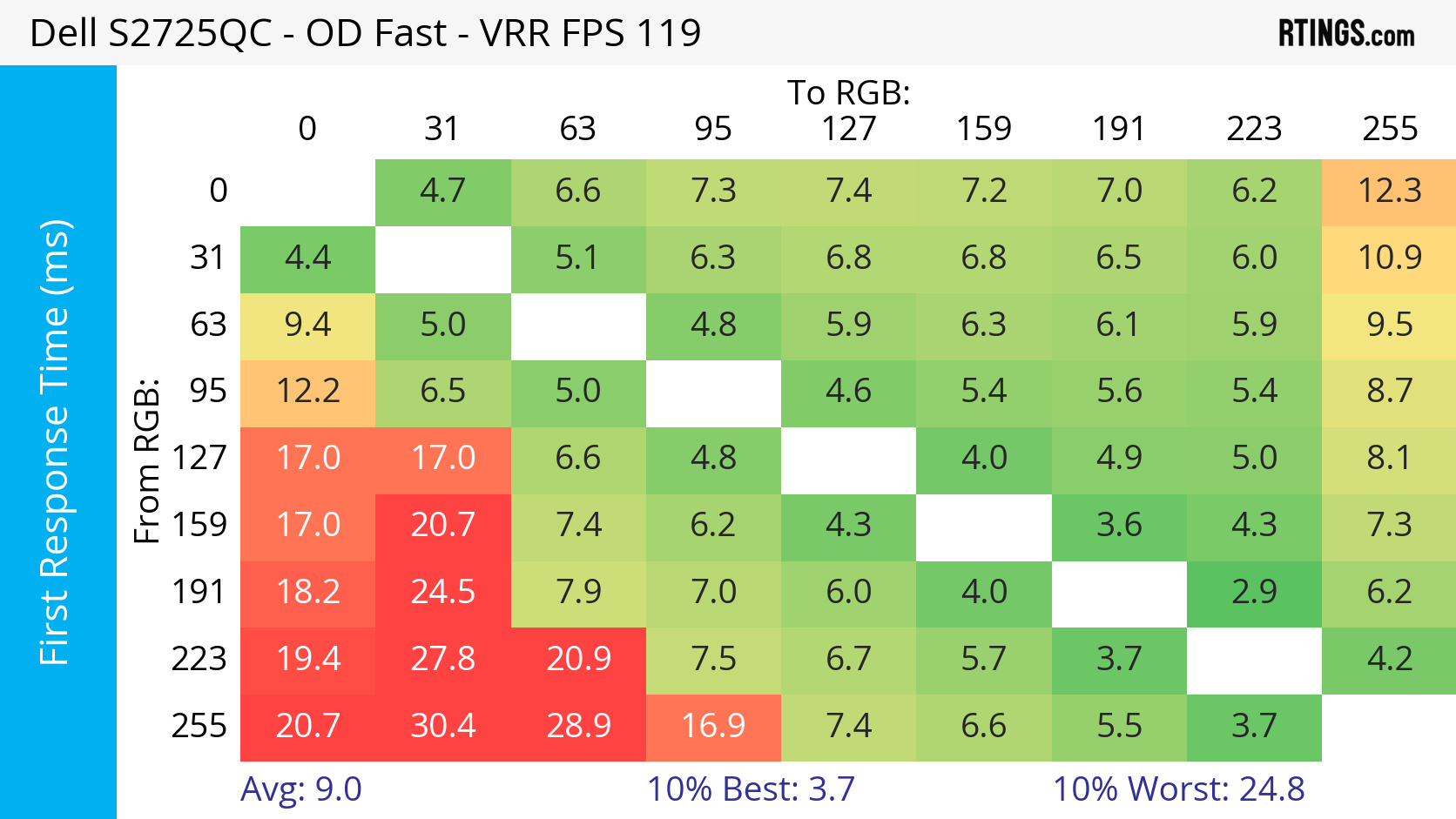

120Hz First Response Heatmap
120Hz Total Response Heatmap

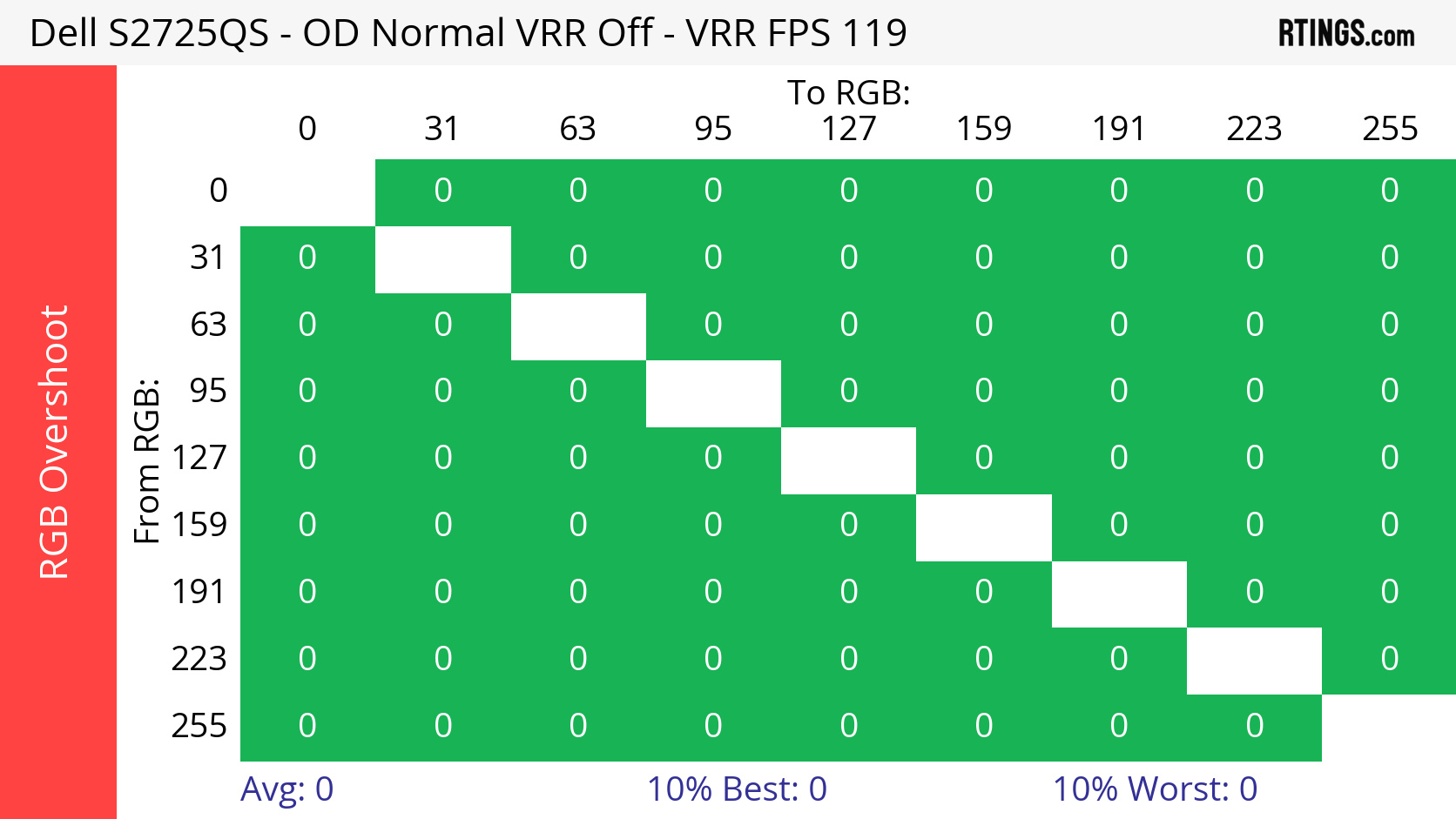

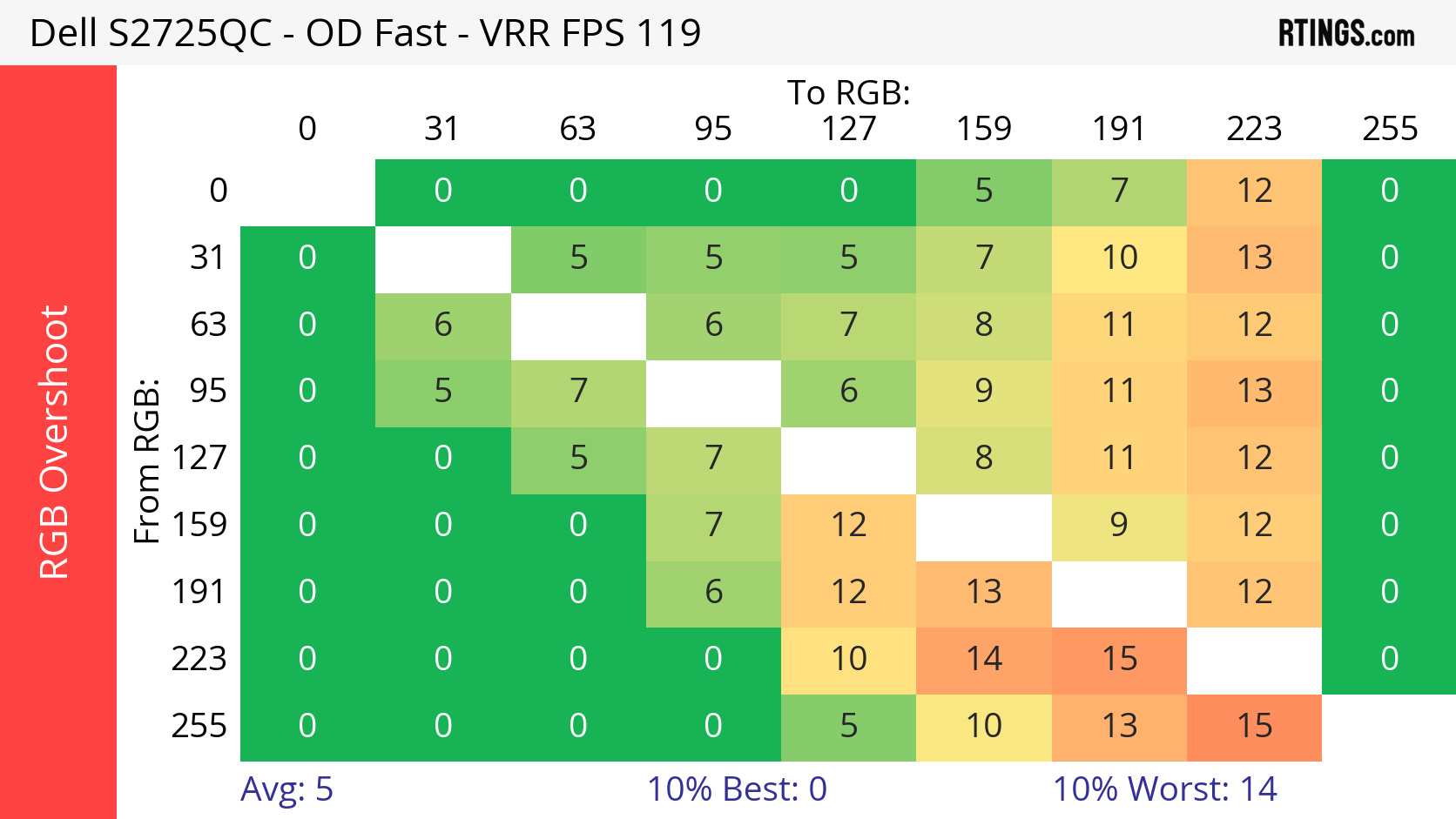

120Hz Heatmap RGB Overshoot
CAD @ 60Hz
9.9
9.9
Pursuit Photo 60Hz

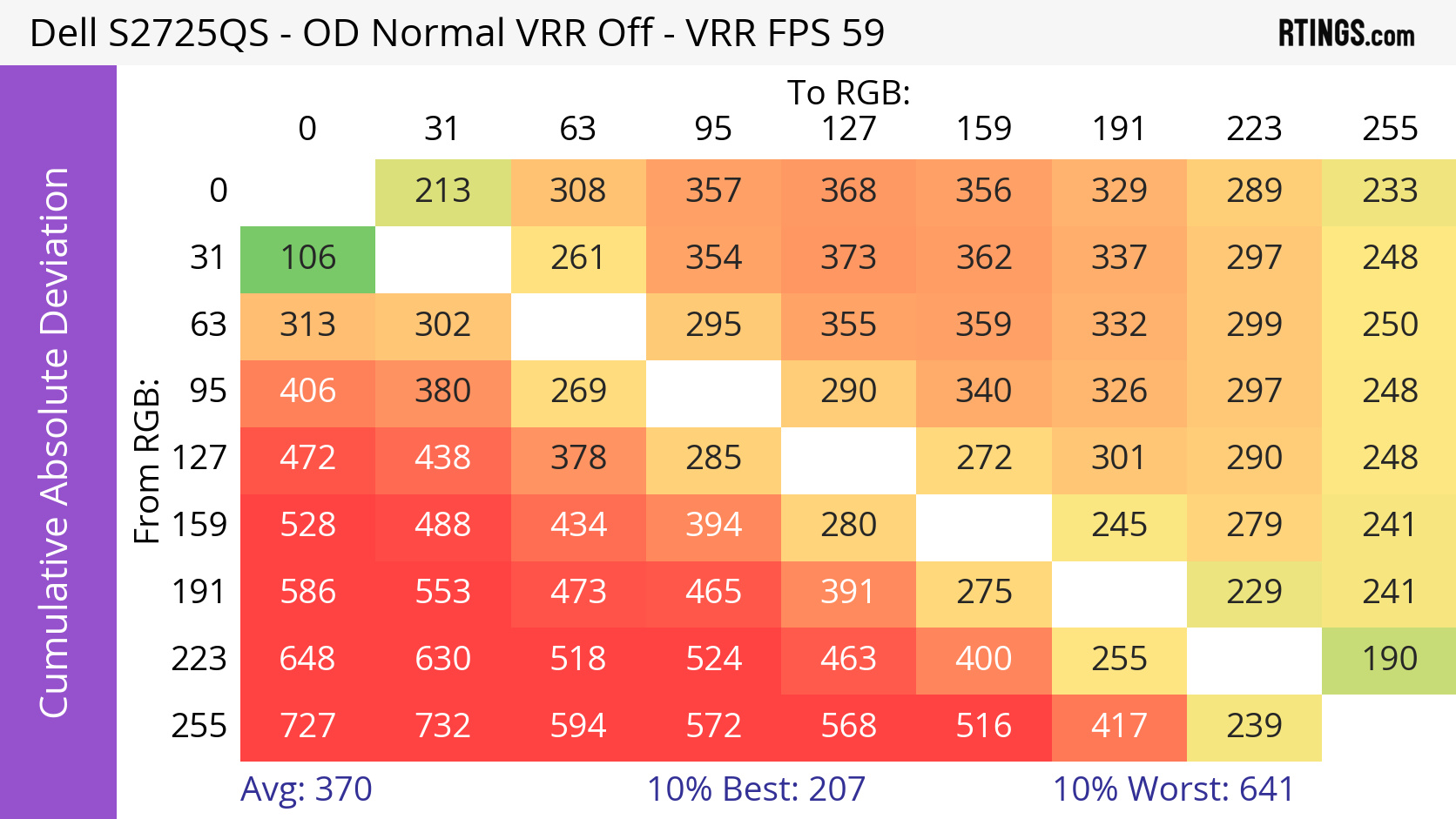

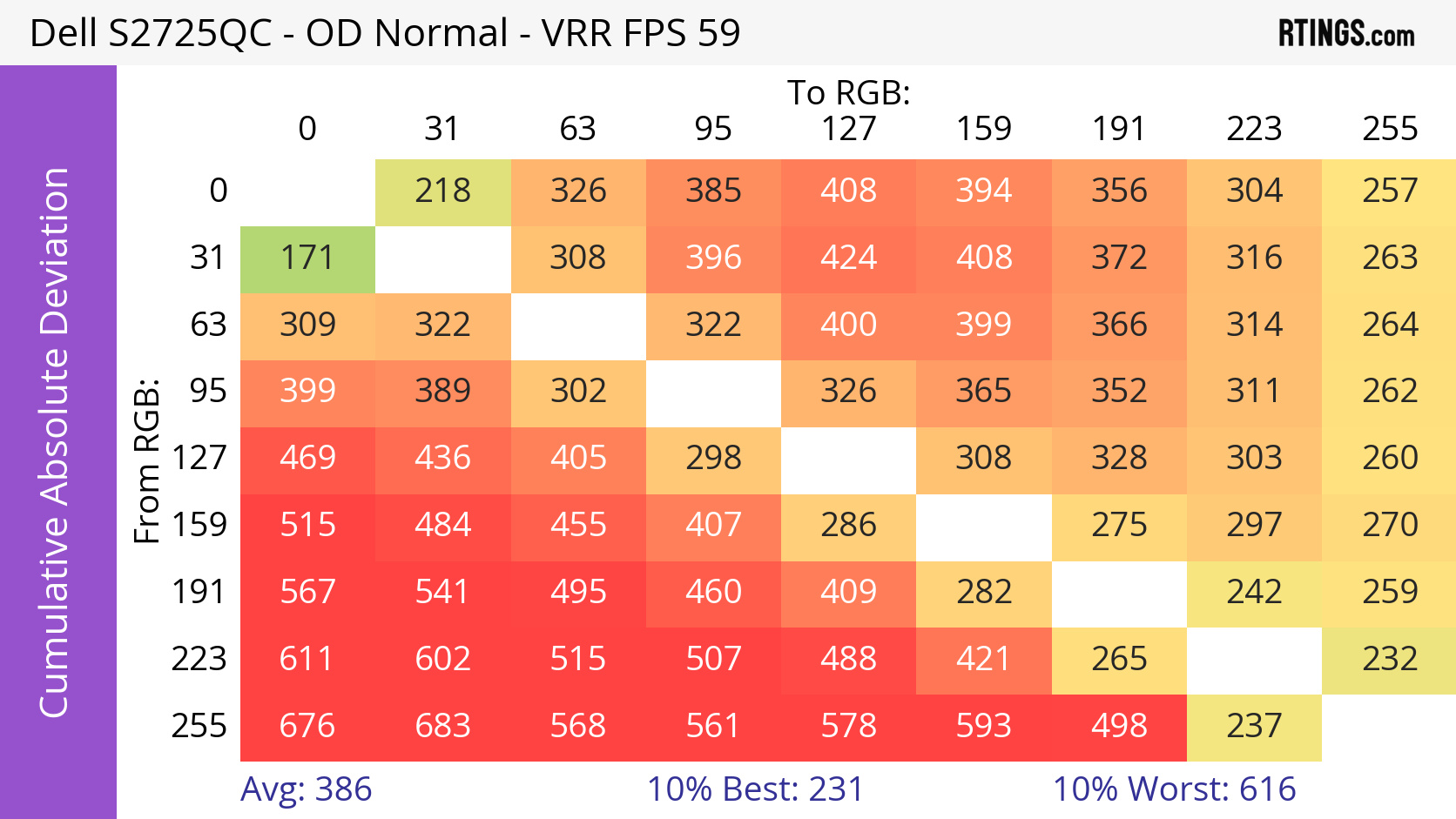

CAD Heatmap 60Hz

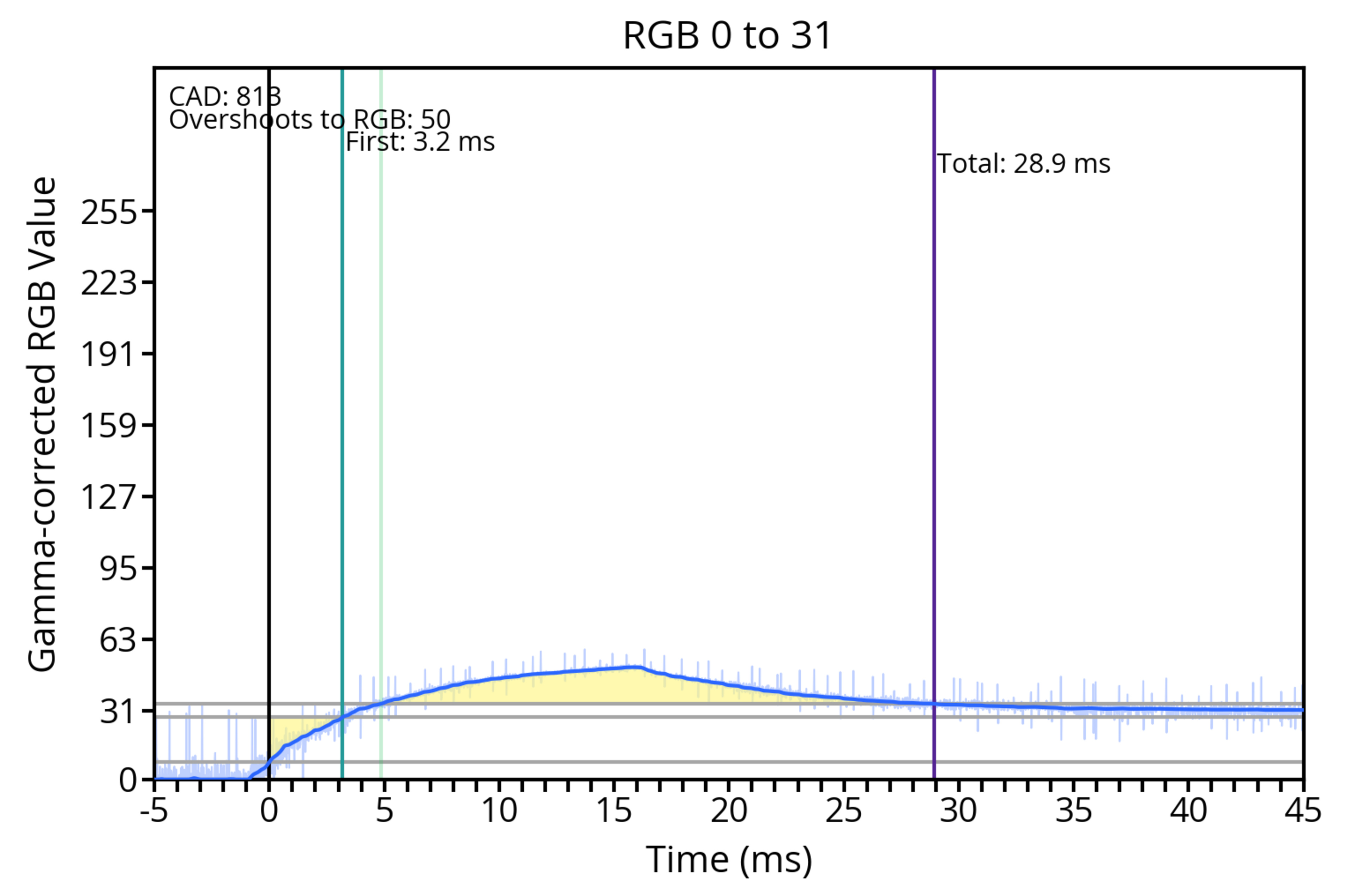

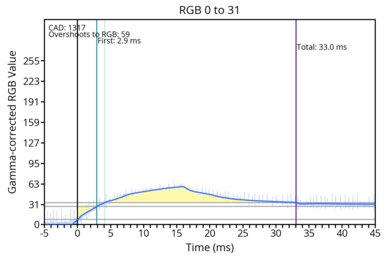

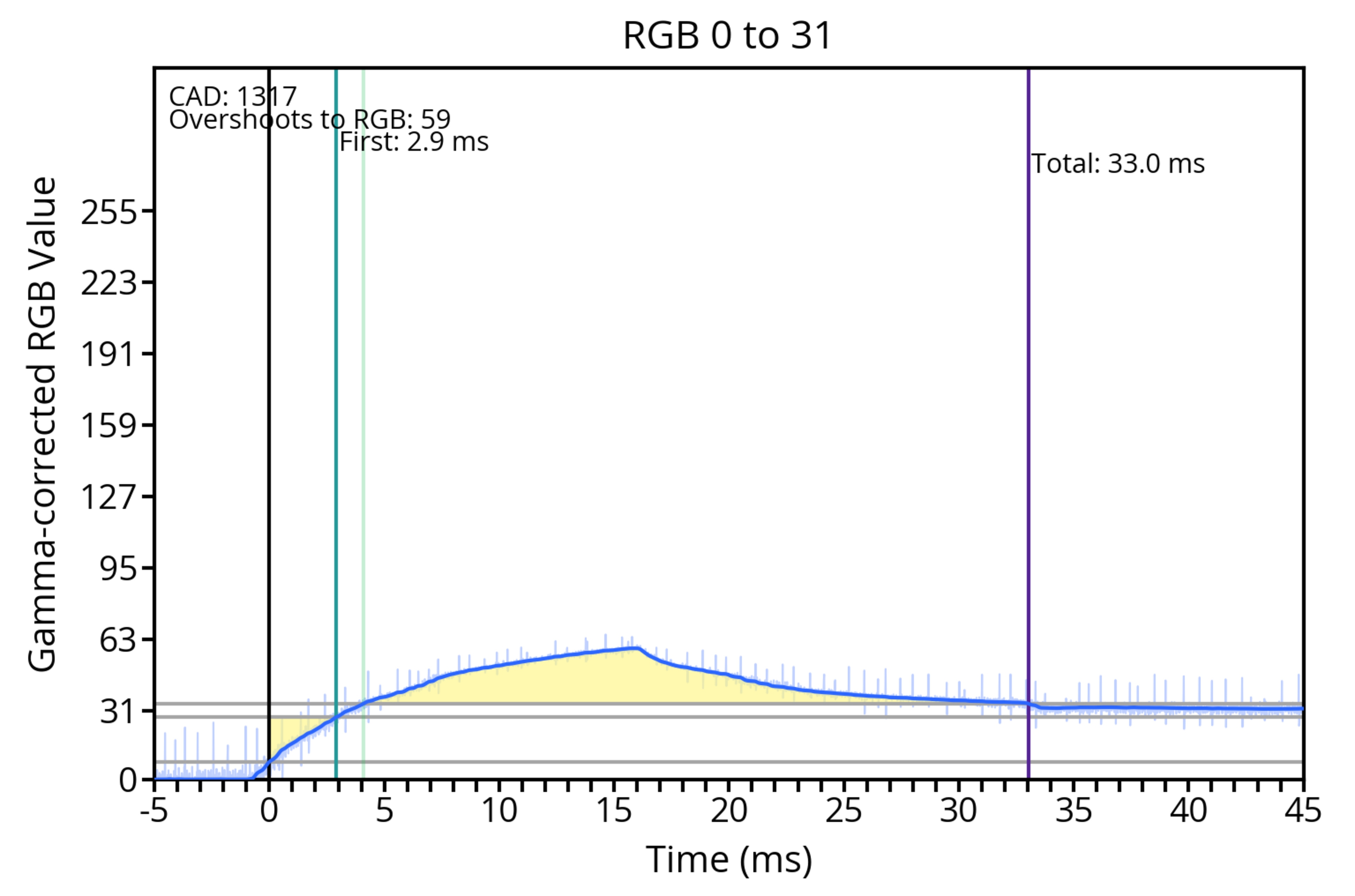

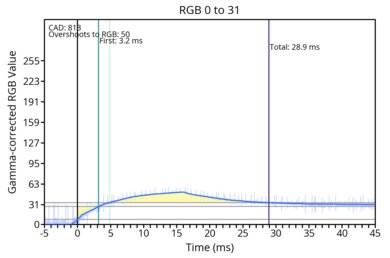

OD Transition 60Hz
OD noodmode
0 to 31
OD noodmode
0 to 31
Recommended Overdrive Setting
No OD Mode
No OD Mode
Avg. CAD
13
15
Best 10% CAD
6
8
Worst 10% CAD
19
21
Response Time @ 60Hz
Recommended Overdrive Setting
No OD Mode
No OD Mode
First Response Time
0.3 ms
0.3 ms
Total Response Time
0.3 ms
0.3 ms
RGB Overshoot
0 RGB
0 RGB
Worst 10% Total Response Time
0.6 ms
0.4 ms
Worst 10% First Response Time
0.6 ms
0.4 ms
Worst 10% RGB Overshoot
0 RGB
0 RGB

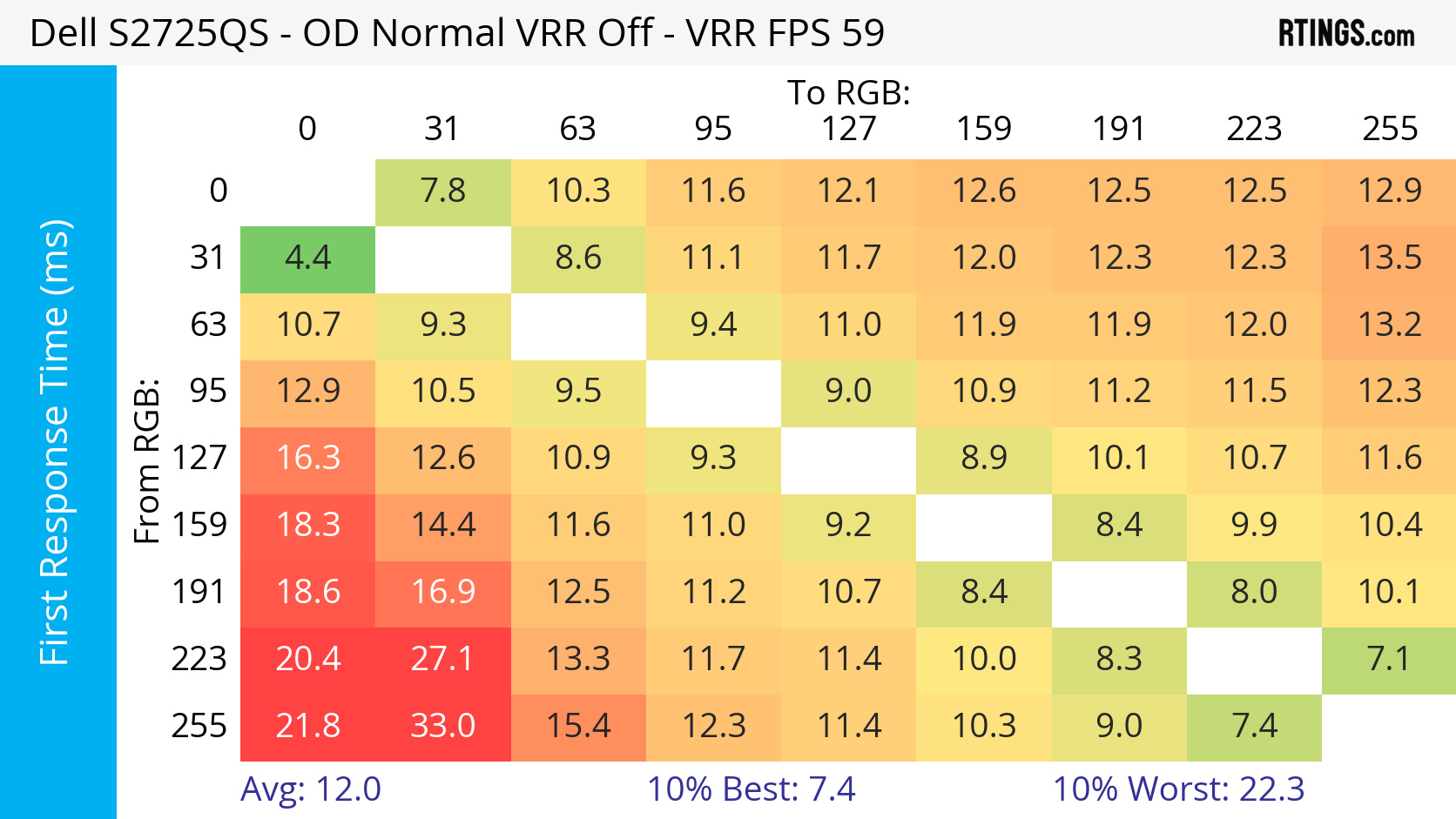

60Hz First Response Heatmap

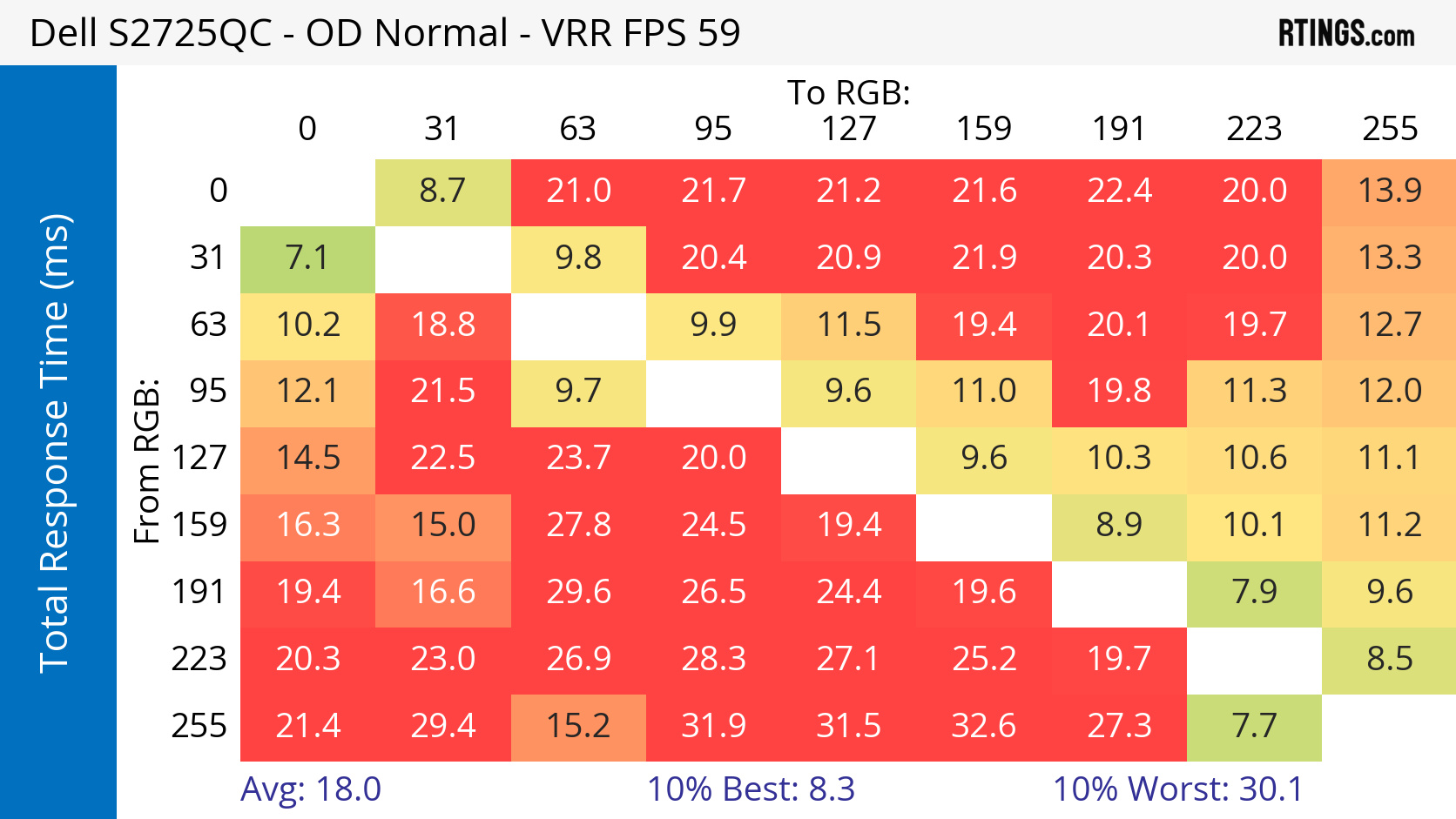

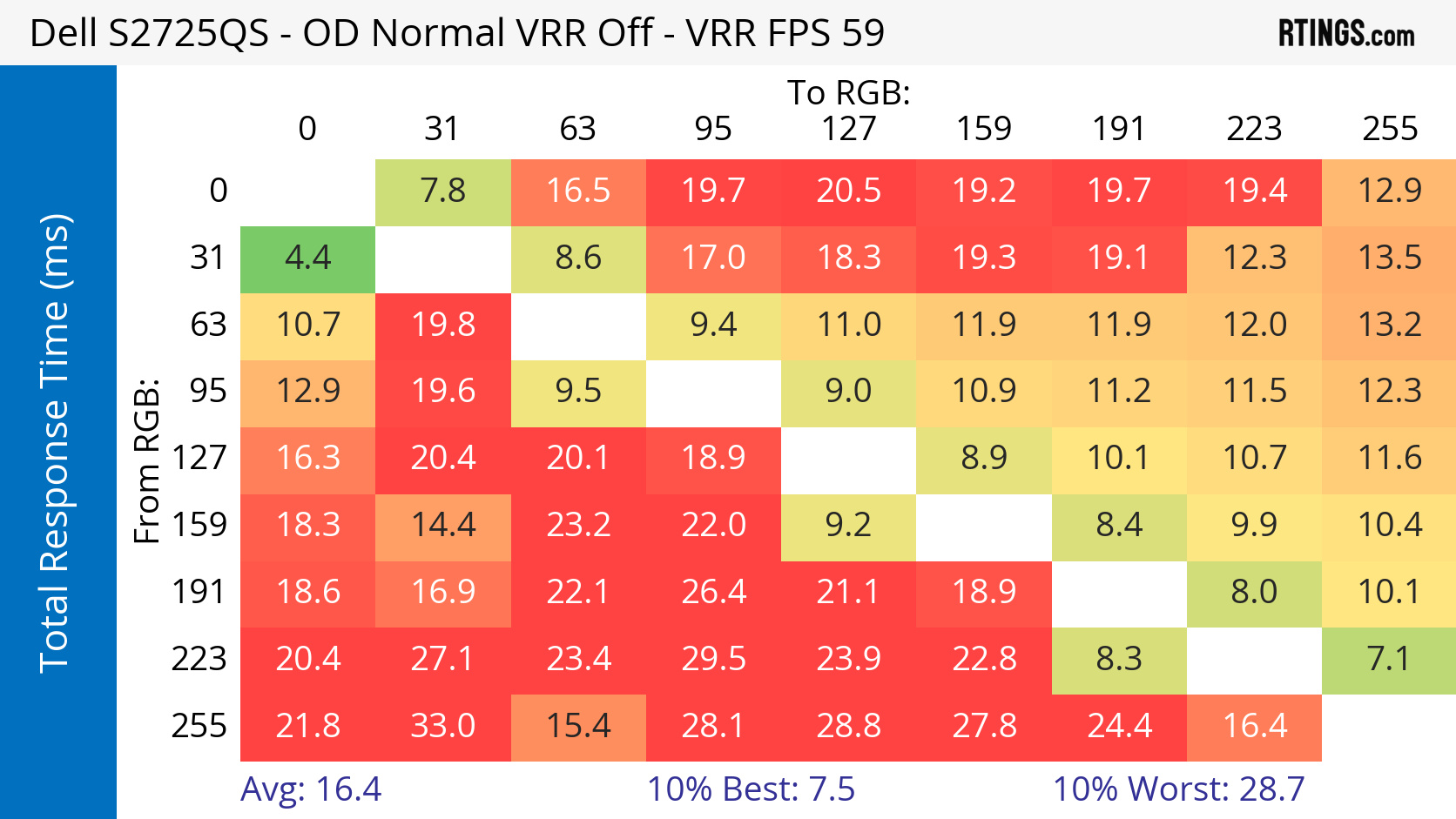

60Hz Total Response Heatmap

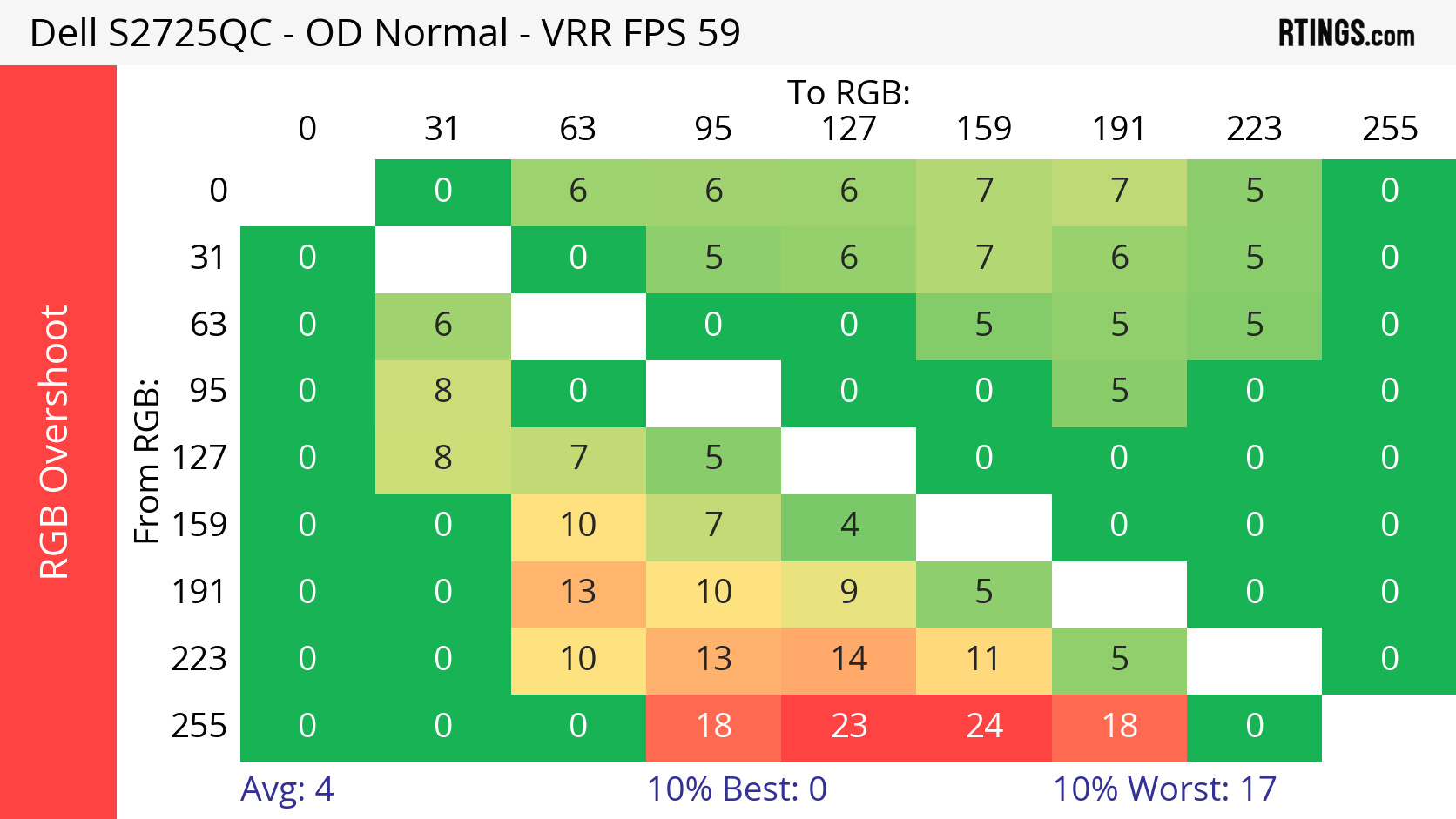

60Hz RGB Overshoot Heatmap
Backlight Strobing (BFI)
Backlight Strobing Picture
Backlight Strobing Frequency Picture
Backlight Strobing (BFI)
Yes
Yes
Maximum Frequency
120 Hz
120 Hz
Minimum Frequency
120 Hz
120 Hz
Longest Pulse Width Brightness
84 cd/m²
126 cd/m²
Shortest Pulse Width Brightness
84 cd/m²
126 cd/m²
Pulse Width Control
No
No
Pulse Phase Control
No
No
Pulse Amplitude Control
Yes
Yes
VRR At The Same Time
No
No
VRR Flicker
6.7
5.4
VRR Flicker Video

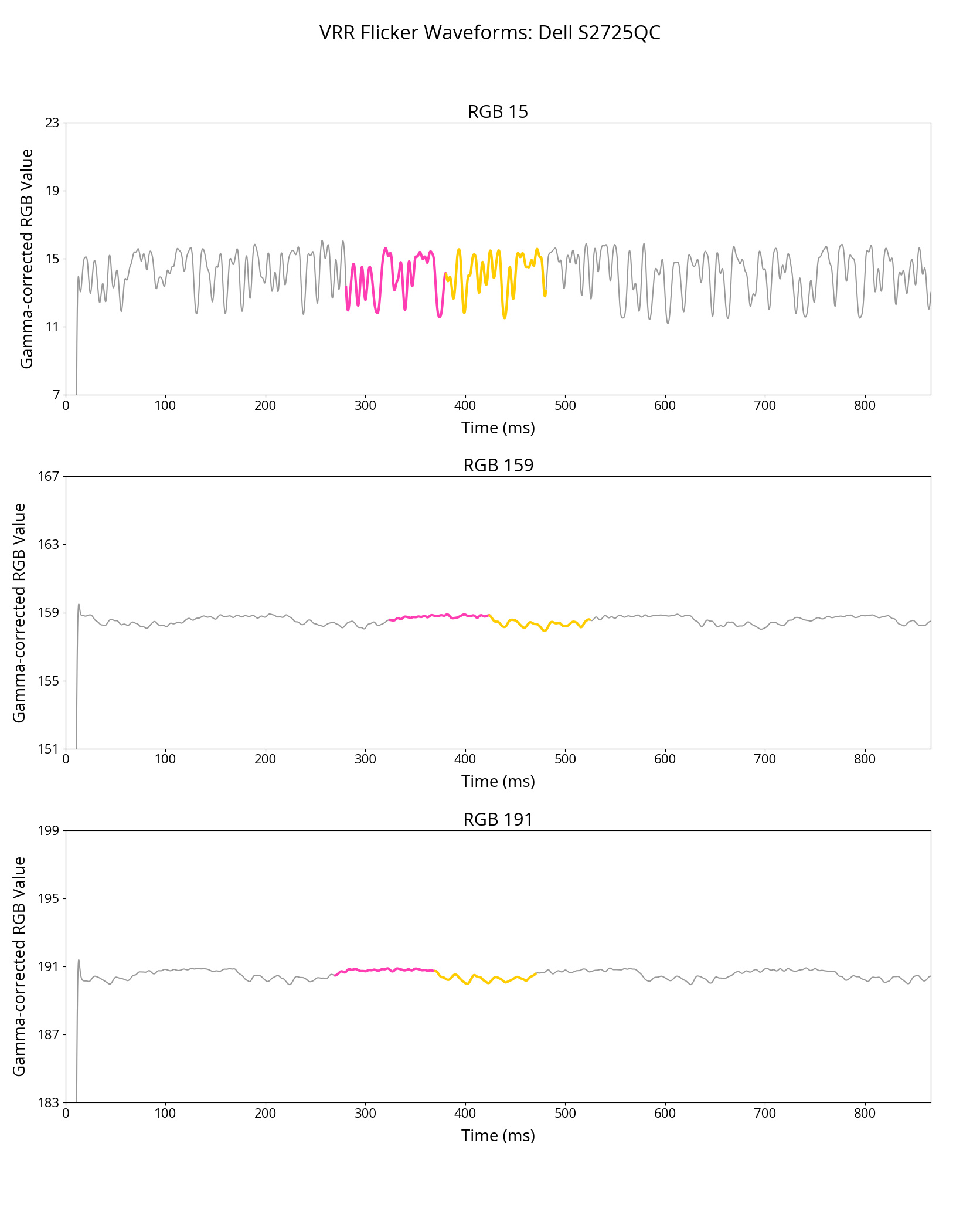

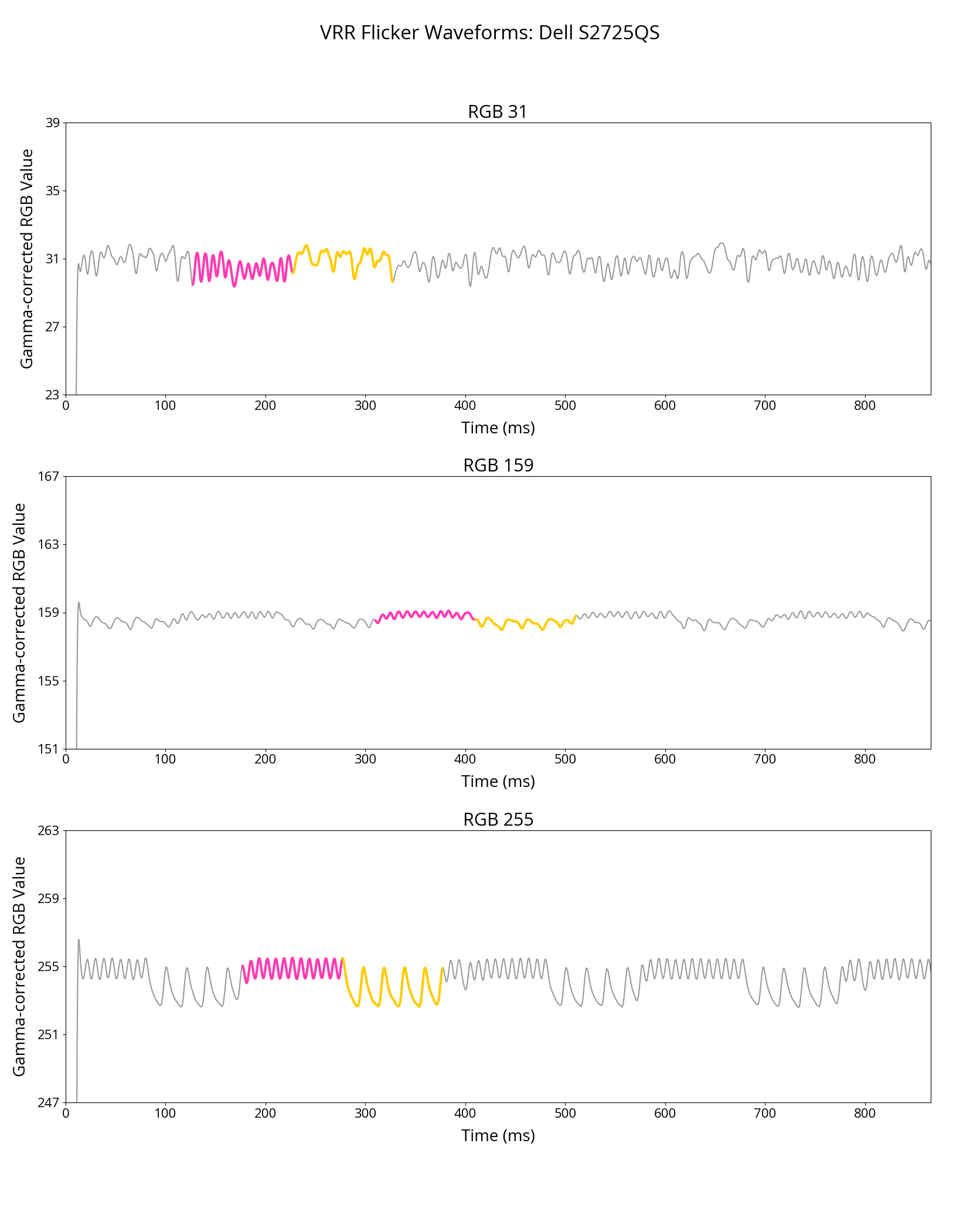

VRR Flicker Graph
Dark Gray Flicker
2.9 RGB
5.3 RGB
Middle Gray Flicker
0.6 RGB
1.7 RGB
Light Gray Flicker
1.0 RGB
0.9 RGB
Image Flicker
10
10
Backlight Picture
Flicker-Free
No
No
PWM Dimming Frequency
0 Hz
0 Hz
Inputs
Input Lag
8.8
8.9
Native Resolution @ Max Hz
2.7 ms
2.7 ms
Native Resolution @ 120Hz
10.8 ms
6.9 ms
Native Resolution @ 60Hz
19.3 ms
15.4 ms
Backlight Strobing (BFI)
14.7 ms
14.8 ms
Resolution
8.5
8.5
Native Resolution
3840 x 2160
3840 x 2160
Aspect Ratio
16:9
16:9
Megapixels
8.3 MP
8.3 MP
Pixel Density
140 PPI
140 PPI
PS5 Compatibility
10
10

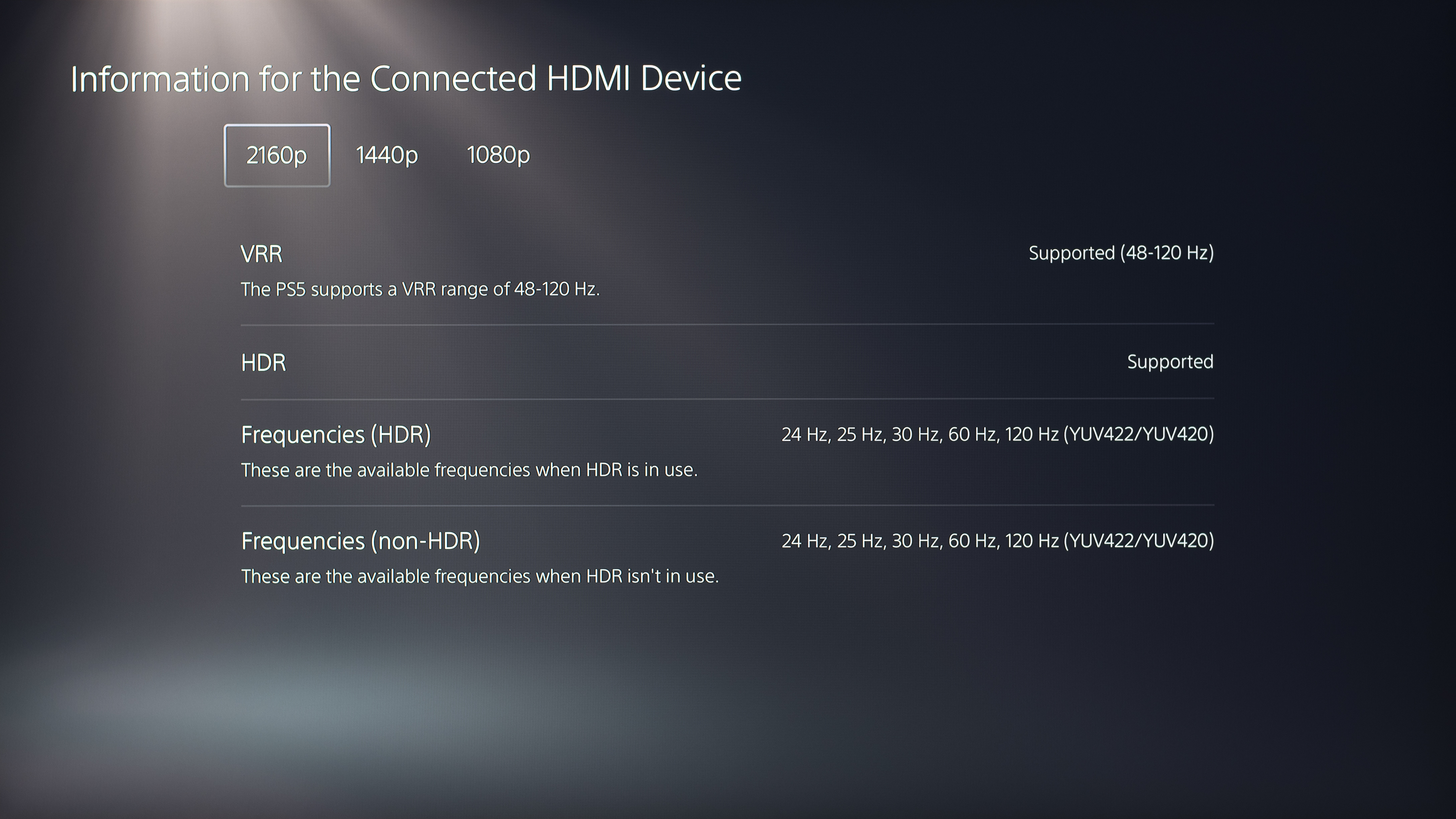

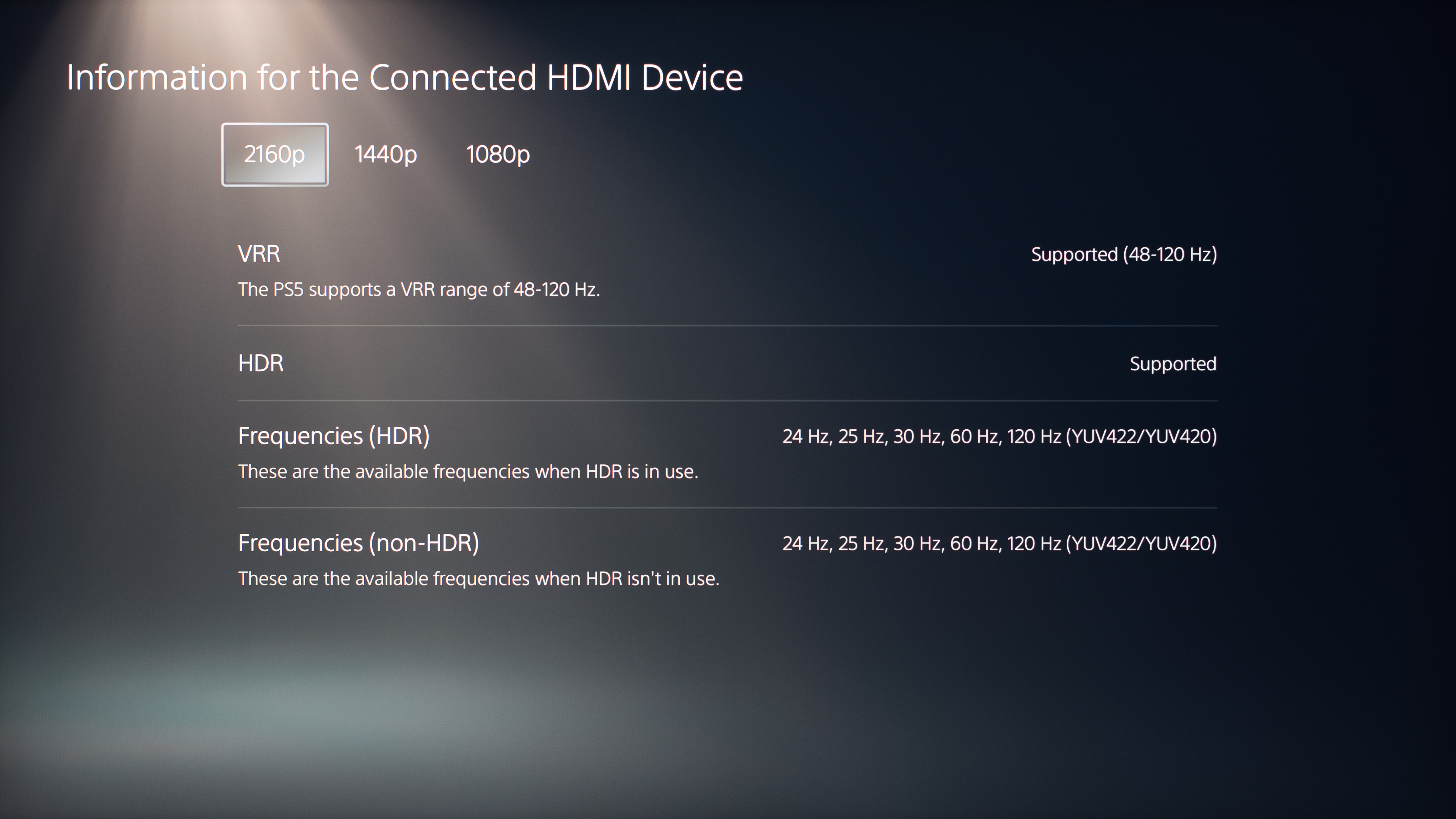

PS5 Compatibility Photo

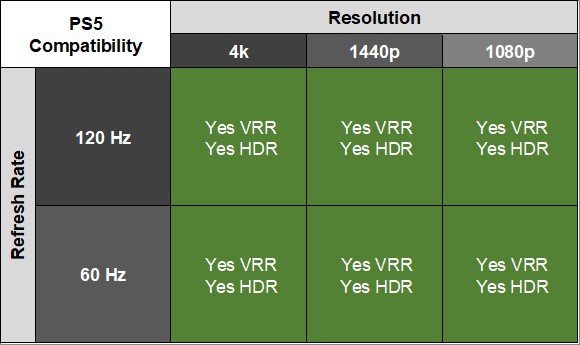

PS5 Compatibility Table
4k @ 120Hz
Yes
Yes
4k @ 60Hz
Yes
Yes
1440p @ 120Hz
Yes
Yes
1440p @ 60Hz
Yes
Yes
1080p @ 120Hz
Yes
Yes
1080p @ 60Hz
Yes
Yes
Xbox Series X|S Compatibility
9.7
9.7

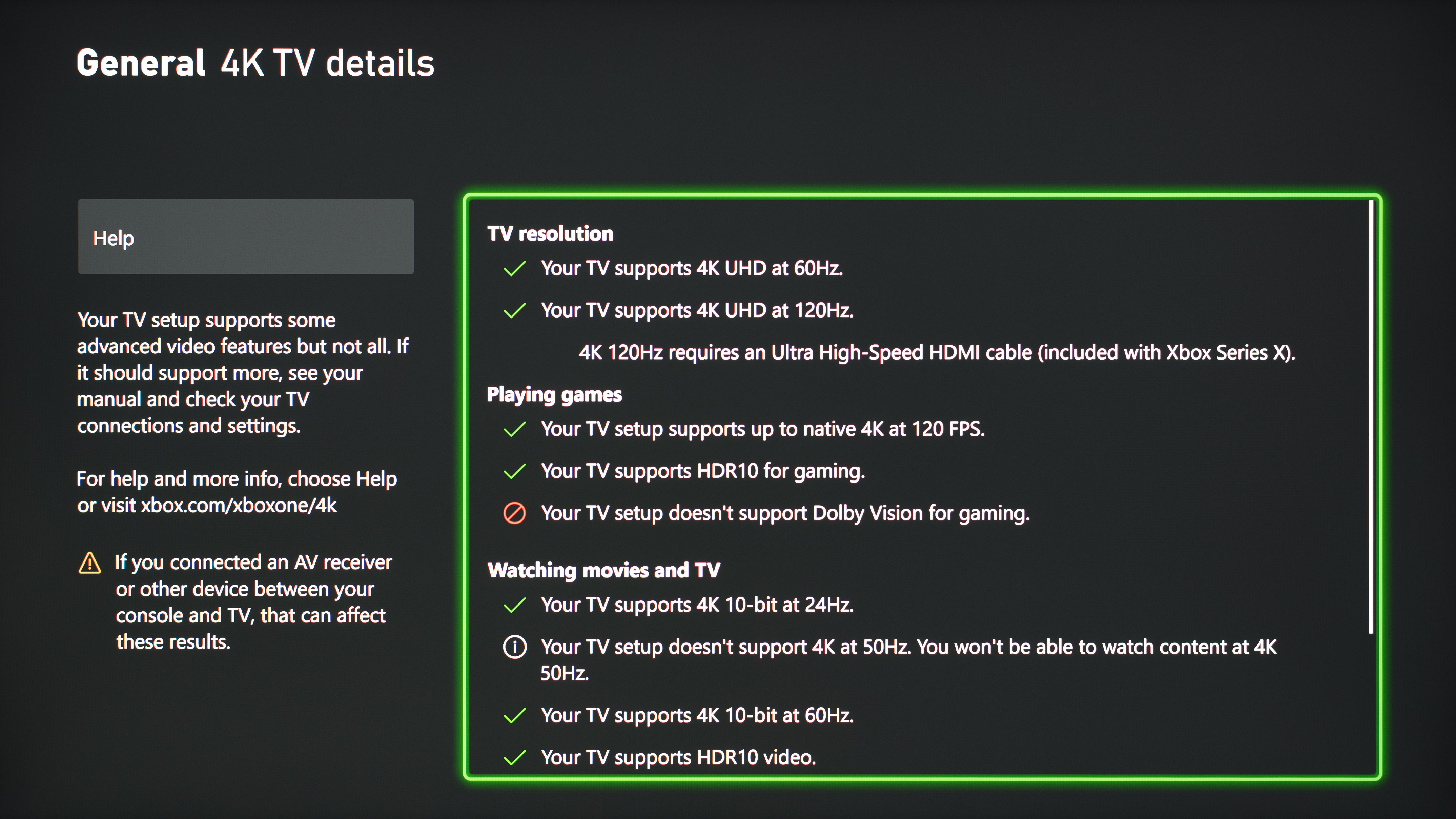

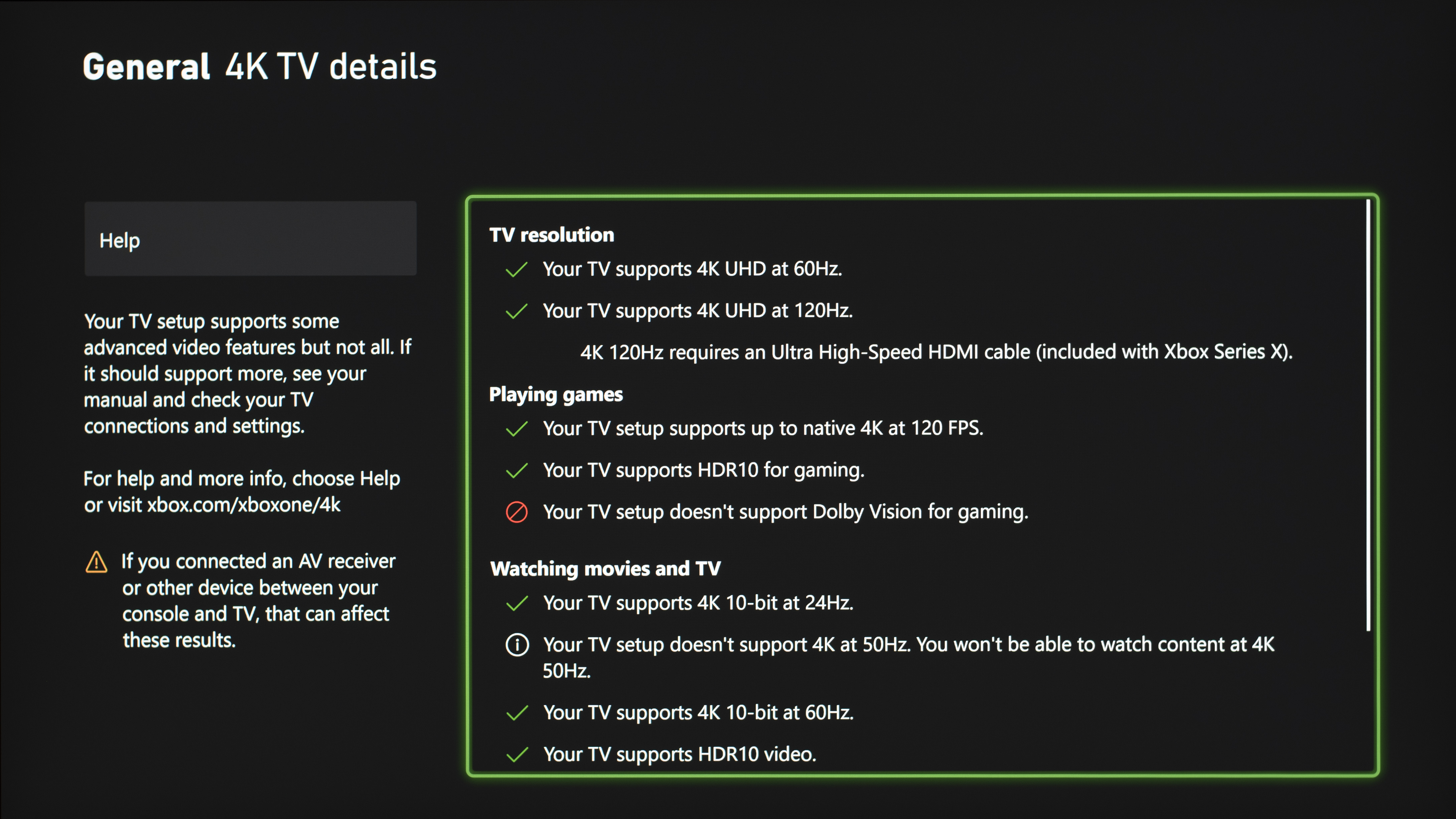

XSX Compatibility Photo

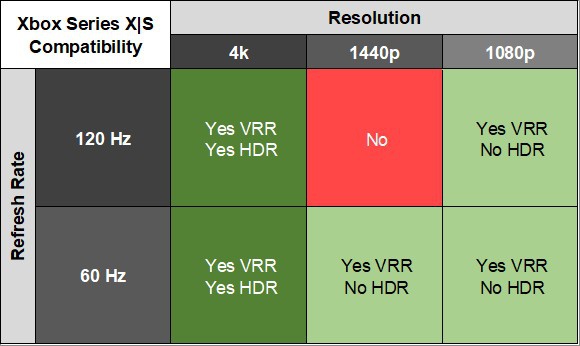

XSX Compatibility Table
4k @ 120Hz
Yes
Yes
4k @ 60Hz
Yes
Yes
1440p @ 120Hz
Yes
Yes
1440p @ 60Hz
Yes
Yes
1080p @ 120Hz
Yes
Yes
1080p @ 60Hz
Yes
Yes

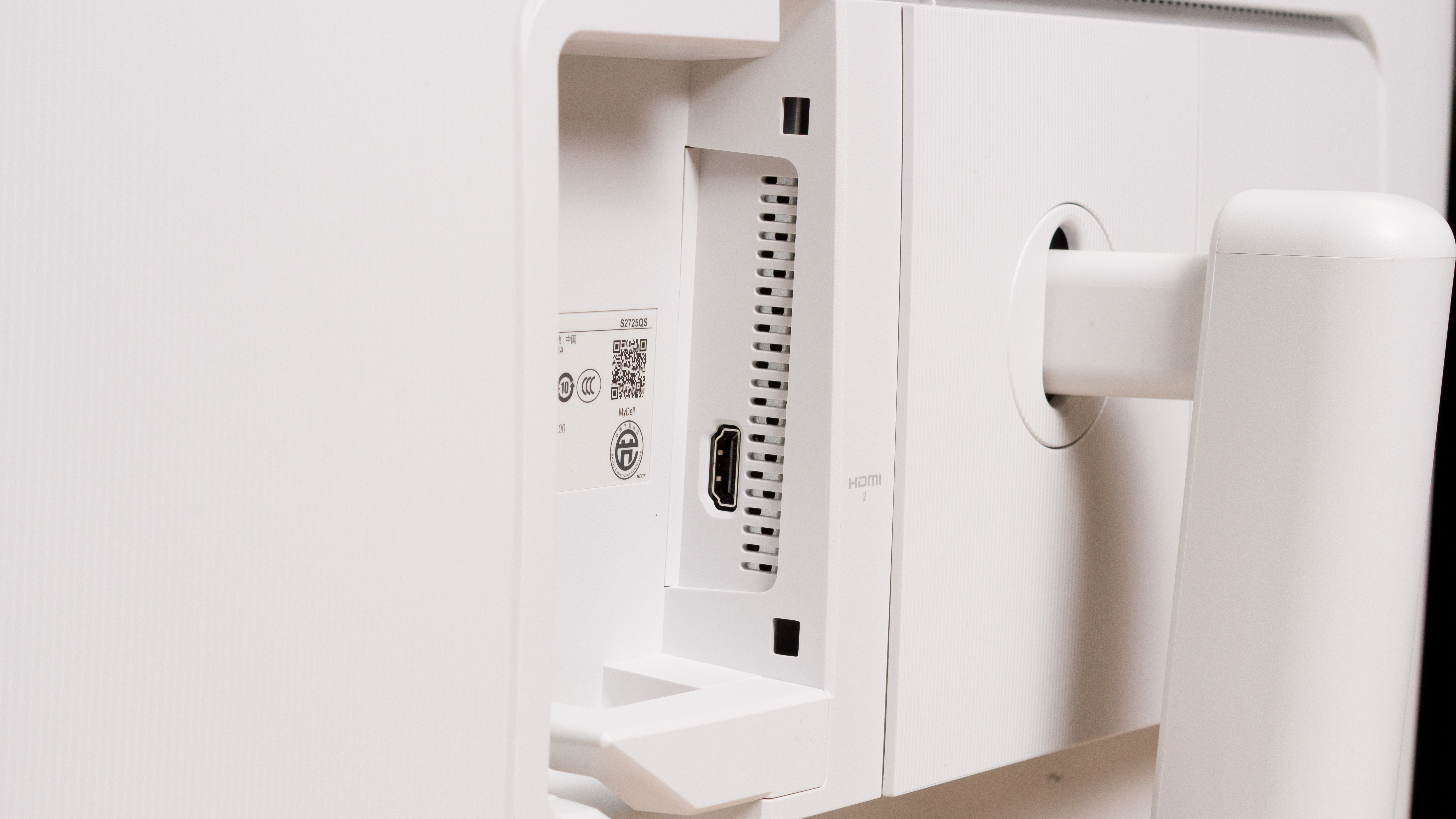

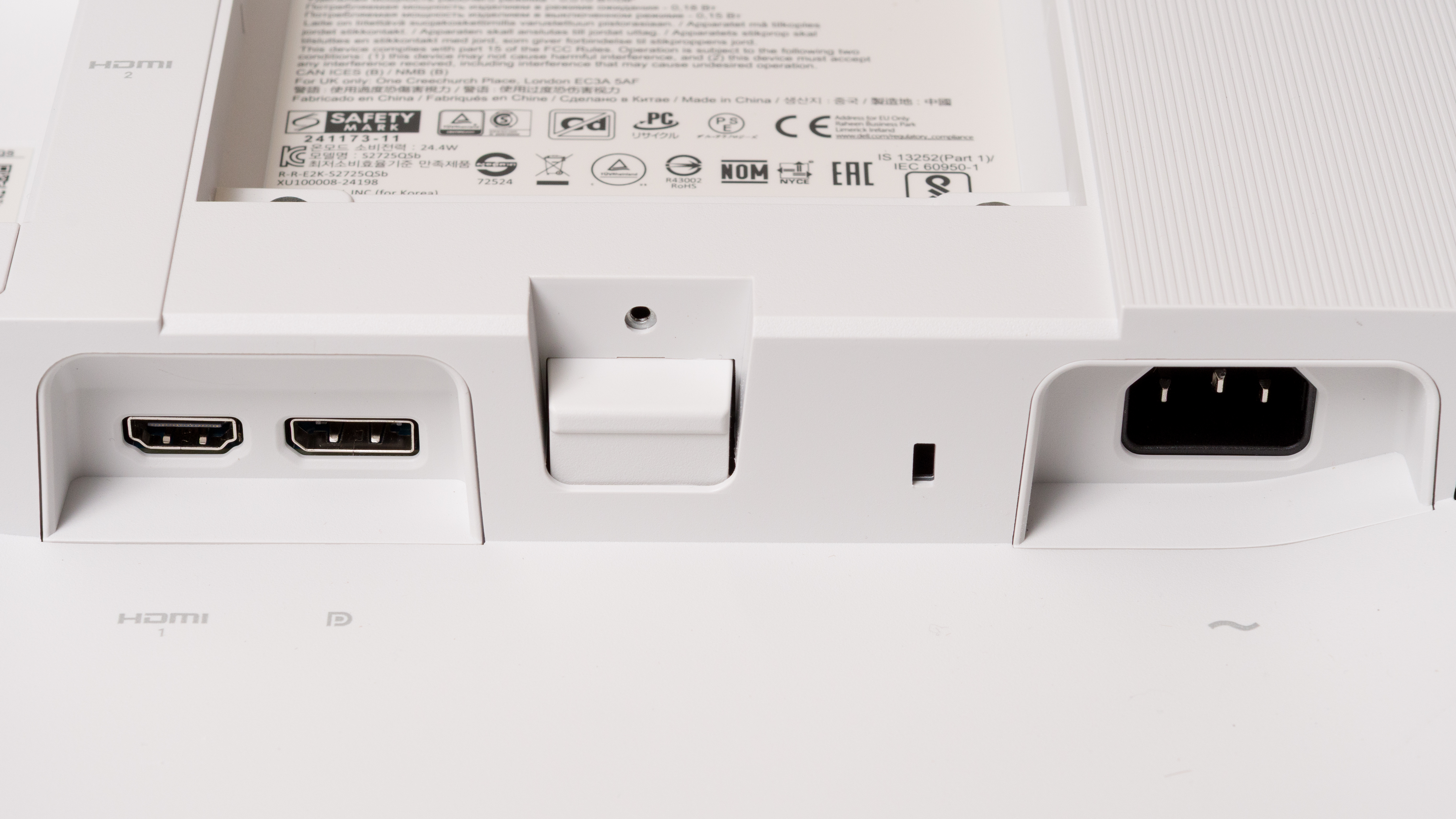

Inputs Photos

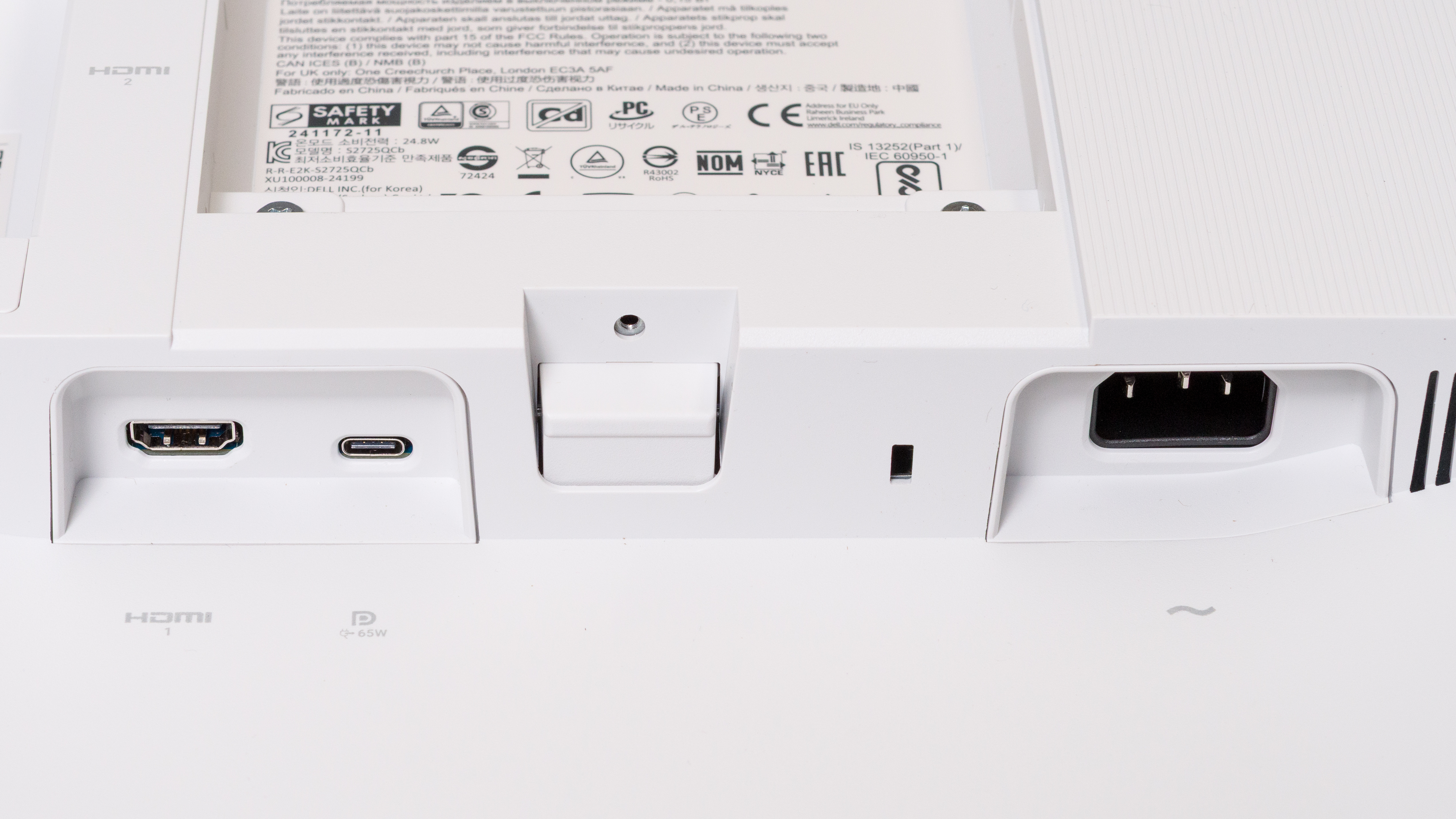

Inputs 1

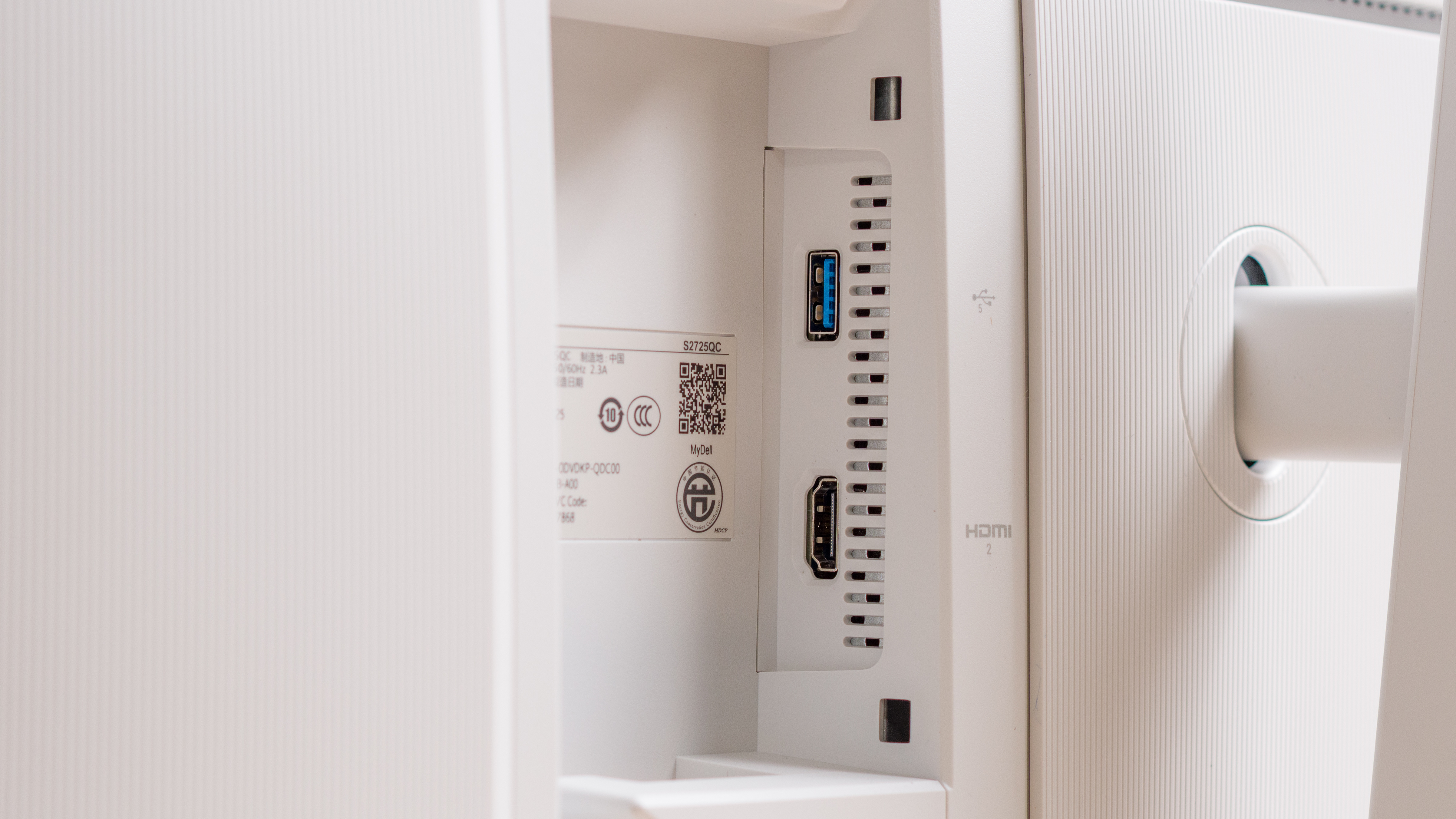

Inputs 2
Video And Audio Ports
DisplayPort
1 (DP 1.4)
1 (DP 1.4)
DisplayPort Transmission Bandwidth
No DisplayPort 2.1
No DisplayPort 2.1
Mini DisplayPort
No
No
HDMI
2 (HDMI 2.1)
2 (HDMI 2.1)
HDMI 2.1 Bandwidth
48Gbps (FRL 12x4)
48Gbps (FRL 12x4)
DVI
No
No
VGA
No
No
Daisy Chaining
No
No
3.5mm Audio Out
1
1
HDR10
Yes
Yes
3.5mm Audio In
No
No
3.5mm Microphone In
No
No
USB
USB-A Ports
3
3
USB-A Rated Speed
5Gbps (USB 3.2 Gen 1)
5Gbps (USB 3.2 Gen 1)
USB-B Upstream Port
Yes
Yes
USB-C Ports
1
1
USB-C Upstream
Yes
Yes
USB-C Rated Speed
5Gbps (USB 3.2 Gen 1)
5Gbps (USB 3.2 Gen 1)
USB-C Power Delivery
90W
90W
USB-C DisplayPort Alt Mode
Yes
Yes
Thunderbolt
No
No
macOS Compatibility

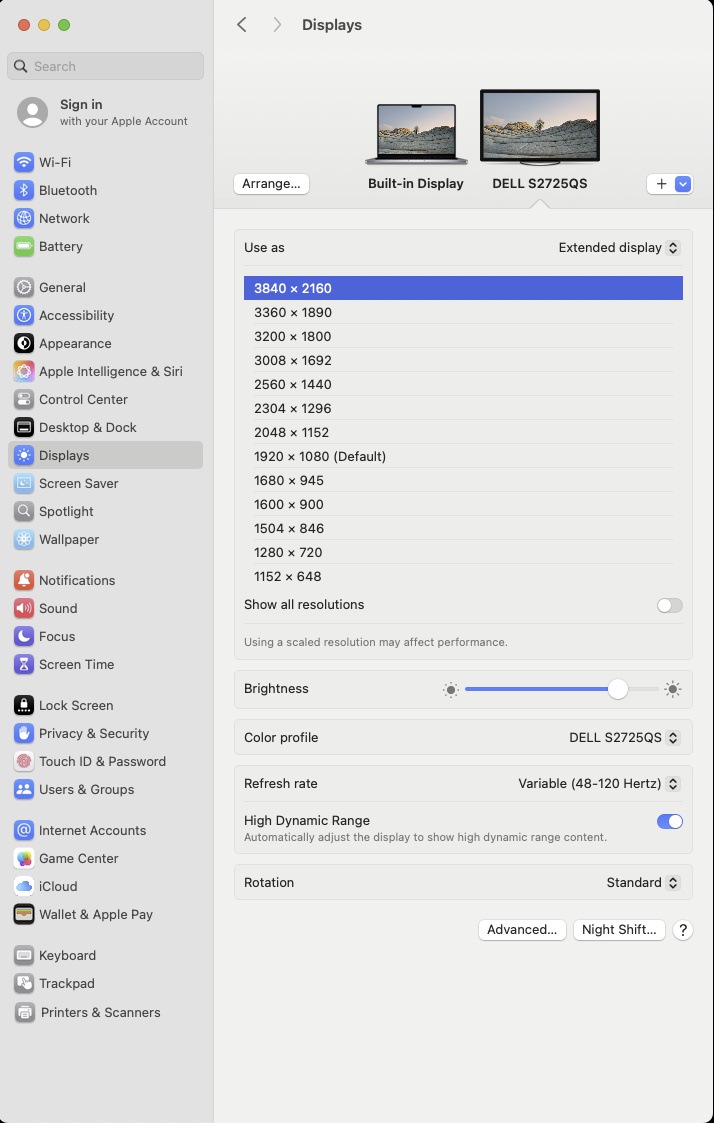

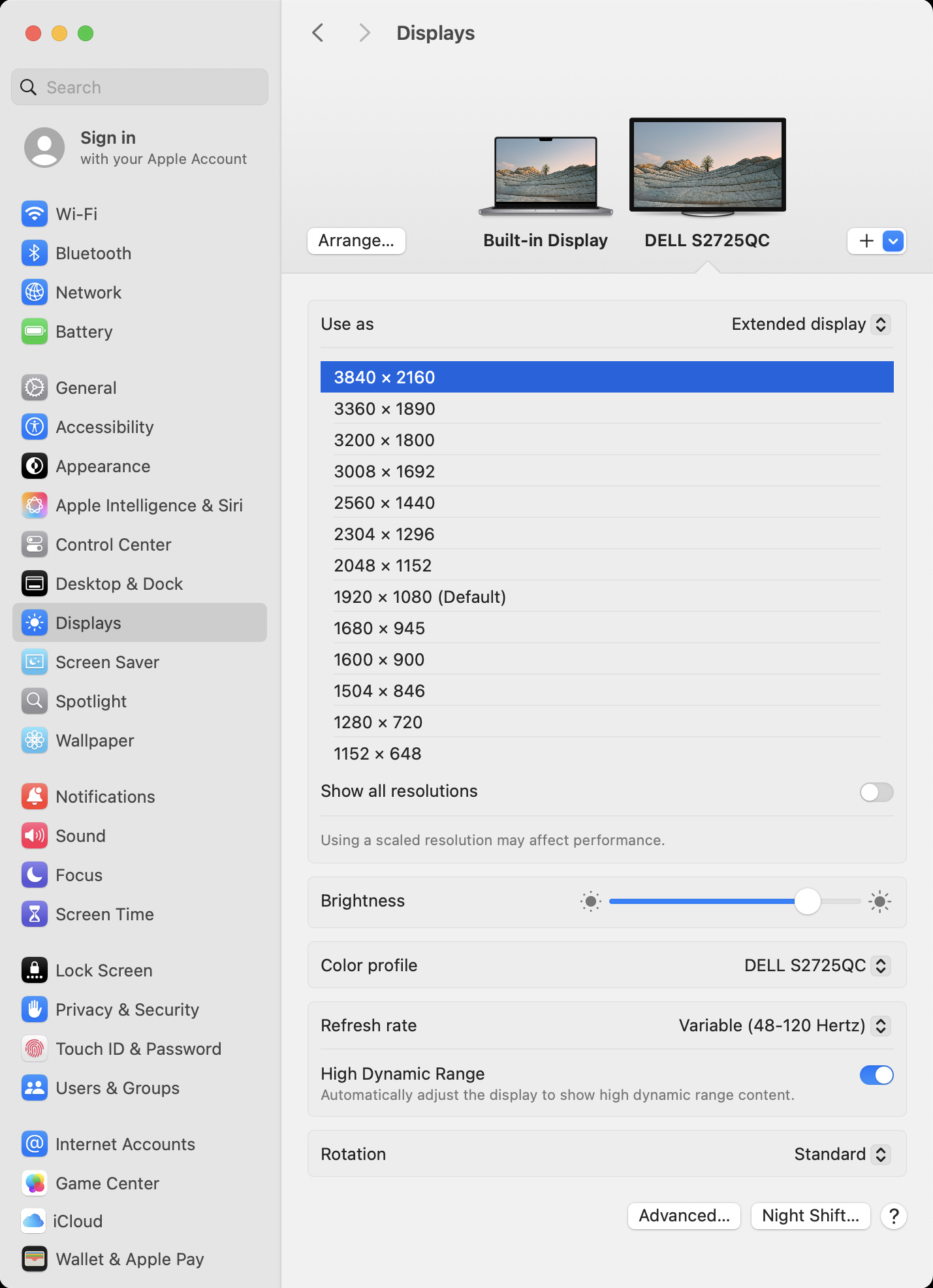

macOS Screenshot
Features
Additional Features
Speakers
No
No
RGB Illumination
Controllable
Controllable
Multiple Input Display
PIP + PBP
PIP + PBP
KVM Switch
Yes
Yes
On-Screen Display (OSD)
OSD Picture
Check Price
32"
ROG Swift OLED PG32UCDM
SEE PRICE
Amazon.com32"
ROG Swift OLED PG32UCDP
SEE PRICE
Amazon.com32"
ROG Swift OLED PG32UCDM
SEE PRICE
B&H32"
ROG Swift OLED PG32UCDP
SEE PRICE
B&H32"
ROG Swift OLED PG32UCDM
SEE PRICE
BestBuy.com32"
ROG Swift OLED PG32UCDP
SEE PRICE
BestBuy.com32"
ROG Swift OLED PG32UCDM
SEE PRICE
Walmart.com32"
ROG Swift OLED PG32UCDP
SEE PRICE
Walmart.com
ASUS ROG Swift OLED PG32UCDM
ASUS ROG Swift OLED PG32UCDP
Comments
ASUS ROG Swift OLED PG32UCDM vs ASUS ROG Swift OLED PG32UCDP: Main Discussion
What do you think of these products? Let us know below.
Looking for a personalized buying advice from the RTINGS.com experts? Insiders have direct access to buying advice on our insider forum.
